Teknik
www.teknikoffice.co.uk
Sit and surf.

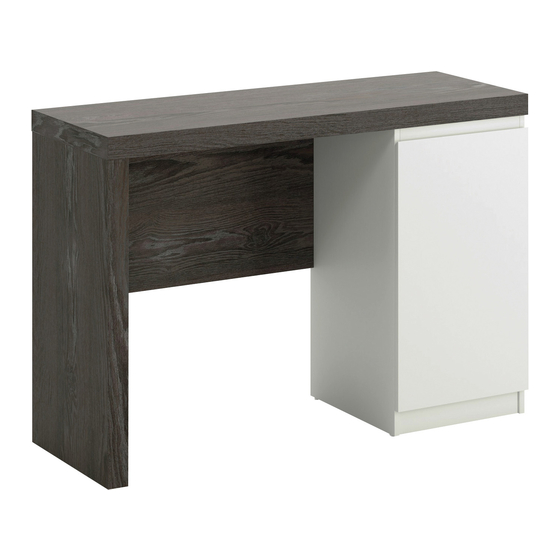

Hudson Chunky Desk
Model 5425833

Advertisement

loading
Need help?

Need help?

Do you have a question about the Hudson Chunky Desk 5425833 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Teknik Hudson Chunky Desk 5425833

Summary of Contents for Teknik Hudson Chunky Desk 5425833

  • Page 1 Teknik www.teknikoffice.co.uk Sit and surf. Hudson Chunky Desk Model 5425833...
  • Page 2 Table of Contents Assembly Tools Required Part Identifi cation No. 2 Phillips Screwdriver Tip Shown Actual Size Hardware Identifi cation Assembly Steps 5-18 Français 19-21 Español 22-24 Skip the power trip. This time. Safety 25-26 Warranty Page 2...

  • Page 3: Part Identification

    Now you know Part Identifi cation our ABCs. å While not all parts are labeled, some of the parts will have a label or an inked letter on the edge to help distinguish similar parts from each other. Use this part identifi cation to help identify similar parts. LEFT END (1) BOTTOM (1) MODESTY PANEL (1)

  • Page 4: Hardware Identification

    Hardware Identifi cation å Screws are shown actual size. You may receive extra hardware with your unit. HIDDEN CAM - 22 CAM SCREW - 22 WOOD DOWEL - 30 SHELF PIN - 4 BROWN WHITE BUMPER CARD - 1 HINGE - 2 APPLIQUE - 8 APPLIQUE - 10 SILVER 1/2"...
  • Page 5 Hardware Usage Guide HOW TO USE A HIDDEN CAM & CAM SCREW OR CAM DOWEL NOTE: Various CAM SCREWS or a CAM DOWEL may be used. Turn the CAM SCREW or gently tap the CAM DOWEL until the shoulder is against the surface of the part.
  • Page 6 Step 1 Assemble your unit on a carpeted fl oor or on the å empty carton to avoid scratching your unit or the fl oor. Push eight HIDDEN CAMS (1) into the UPRIGHT (C) å and BACK (K). Turn four CAM SCREWS (2) into the exact holes shown å...
  • Page 7 Step 2 Fasten the BACK (K) to the UPRIGHT (C). Tighten two å HIDDEN CAMS. NOTE: Be sure the WOOD DOWELS in the UPRIGHT å insert into the BACK. S u r f a c Edge with i t h HIDDEN CAMS H I D D E N...
  • Page 8 Step 3 Push four HIDDEN CAMS (1) into the BOTTOM (E). å Fasten the BOTTOM (E) to the UPRIGHT (C). Tighten two å HIDDEN CAMS. NOTE: Be sure the WOOD DOWELS in the UPRIGHT å insert into the BOTTOM. Arrow Arrow Unfi...
  • Page 9 Step 4 Place the VALANCE (H) and SKIRT (L) onto the WOOD å DOWELS in the UPRIGHT (C) as shown. Just think. The sooner you do this, the sooner NOTE: The VALANCE (H) is wider than the SKIRT (L). å you do something else.
  • Page 10 Step 5 Push two HIDDEN CAMS (1) into the RIGHT END (B). å Turn four CAM SCREWS (2) into the RIGHT END (B). å Arrow Insert eight WOOD DOWELS (3) into the RIGHT END (B). å Carefully fl ip the RIGHT END (B) over. å...
  • Page 11 Step 6 Push eight HIDDEN CAMS (1) into the LEFT END (A) and å MODESTY PANEL (J). NOTE: Be sure the HIDDEN CAMS insert completely into å Arrow the holes in the LEFT END (A). Arrow Turn two CAM SCREWS (2) into the LEFT END (A). å...
  • Page 12 Step 7 Carefully stand the box assembly upright. å Turn two CAM SCREWS (2) into the UPRIGHT (C). å Insert two WOOD DOWELS (3) into the UPRIGHT (C). å While holding onto both the LEFT END (A) and the å MODESTY PANEL (J), fasten the MODESTY PANEL (J) to the UPRIGHT (C).
  • Page 13 Step 8 First, turn ten CAM SCREWS (2) into the exact holes å shown in the TOP (D). Don't worry. It isn't Rome. This can be built Then, insert ten WOOD DOWELS (3) into the remaining å in a day. holes in the TOP (D).
  • Page 14 Step 9 Carefully fl ip the TOP (D) over. å Fasten the TOP (D) to the ENDS (A and B), UPRIGHT (C), å MODESTY PANEL (J), and BACK (K). Tighten ten HIDDEN CAMS. NOTE: Be sure the WOOD DOWELS in the TOP insert into the å...
  • Page 15 Step 10 Peel the BROWN APPLIQUES (7) from the card and stick å them onto each visible HIDDEN CAM in the LEFT END (A) and MODESTY PANEL (J). Peel the WHITE APPLIQUES (8) from the card and stick å them onto each visible HIDDEN CAM in the RIGHT END (B), UPRIGHT (C), and BACK (K).
  • Page 16 Step 11 Fasten the HINGES (6) to the DOOR (G). Use four å SILVER 5/8" FLAT HEAD SCREWS (10). If you're doing this to help a friend, don't leave without a bite. SILVER 5/8" FLAT HEAD SCREW (4 used in this step) Page 16...
  • Page 17 Step 12 Before fastening the DOOR to your unit, be sure the å mounting screw is against the stops as shown in the right Stop diagram. If it isn't, loosen the mounting screw to slide it against the stops. Then tighten the mounting screw. Fasten the HINGES on the DOOR (G) to the RIGHT END (B) å...

  • Page 18: Door Adjustments

    Step 13 Refer to the enlarged diagram to identify the parts on the HINGES. å The DOOR may need some adjustments. Follow the text below to make needed adjustments. å DOOR ADJUSTMENTS: å To adjust the DOOR from side to side (horizontal), turn the adjusting screw in or out. To adjust the DOOR up and down (vertical), loosen both vertical adjustment screws.
  • Page 19 WARNING Please use your furniture correctly and safely. Improper use can cause safety hazards, or damage to your furniture or household items. Carefully read the following chart. Look out for: What can happen: How to avoid the problem: • Overloaded shelves or drawers. •...
