Operation Manual

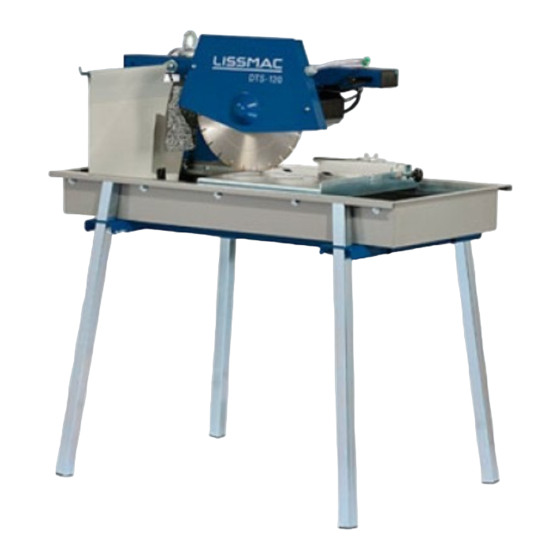

Masonry Saw
DTS 120 and DTS 120 - G
Make this operation manual accessible to your operation staff in order to
ensure that the machine will always be utilised correctly and remains in easy
to handle condition!
Maschinenbau GmbH
Lanzstraße 4 - D-88410 Bad Wurzach
Telefon +49 (0) 75 64/3 07-0 - Fax + 49 (0) 75 64/3 07-5 00
lissmac@lissmac.com - www.lissmac.com
State: 10/2009
Translation of the original operating manual
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Lissmac DTS 120
Summary of Contents for Lissmac DTS 120
- Page 1 Operation Manual Masonry Saw DTS 120 and DTS 120 - G Make this operation manual accessible to your operation staff in order to ensure that the machine will always be utilised correctly and remains in easy to handle condition! Maschinenbau GmbH Lanzstraße 4 - D-88410 Bad Wurzach...
-
Page 2: Table Of Contents
Preface This operation manual has been established to make it easier to become familiar with the machine and to utilise its intended application options. This operation manual contains important information on how to operate the machine in a safe, appro- priate and economic manner. -
Page 3: Basic Safety Information
Always eliminate all malfunctions and obstructions apt to affect safety immediately (or let them have eliminated)! 1.2.3 The safety of this masonry saw is guaranteed only when using original Lissmac saw blades. Organisational measures 1.3.1 This operation manual must always be kept and stored ready at hand near the place of operation. - Page 4 on the machine must thoroughly have read this operation manual, particularly the chapter "safety information" and all warnings described therein, which will be too late to do during operation of the machine. This applies in particular for any personnel performing occasional routines on the machine only, such as set-ups, servicing etc.
- Page 5 1.5.1 Normal operation 1.5.1.1. Refrain from performing any operations critical in regard to safety! Danger! 1.5.1.2 Take precautions that the machine will only be operated in safe and operative condition! 1.5.1.3 Check the machine for damages and defects visible from outside at least once per shift! Immediately inform the person / authority responsible of any changes or modifi- cations that have been detected (including operative behaviour)! The case given, im- mediately stop, lock and secure the machine!
- Page 6 always close or cover all machine openings and apertures using a scotch tape or other means, into which no water/steam/cleaning agent may penetrate due to safety or functional reasons. Electric motor, switch and plug connections are particularly endangered. Cleaning by means of a water jet prohibited. Information 1.5.2.5 Completely remove covers / scotch taped covers after cleaning! Danger!
-
Page 7: Description Of Machine
Pos. 12 – Feet Pos. 13 – Screws for mitre cut adjustment 2.2 Protective devices Pos. 4 – Blade guard Pos. 9 – Splash guard 2.3 Technical data DTS 120 DTS 120-G Operation voltage 230V 230V Motor output 2.2 kW S6 - 40% 2.2 kW S6 - 40%... -
Page 10: Mounting And First Operation Preparations
Noise emission values Concrete block Granite Poroton Noise emission level LwA [in dB] Work place related noise emission value LpA [in dB(A)]: 85 The work place related noise emission value refers to an 8 hour working shift and reduces corre- spondingly at lower working terms. -
Page 11: Transport
3.5 Trial run • Place a brick on the saw. • Slide brick to limit stop. • Push mains switch (Pos. 3). ATTENTION! Is there enough cooling water for the saw blade? CAUTION! • Dry cuts prohibited. Information! • An insufficient quantity of cooling water results in premature wear or defect of the saw blade. •... -
Page 12: Dismounting
• Tighten the clamping lever (Pos. 6). 5.7 Replacement of saw blade (see 3.3) 5.8 Adjustments for mitre cut (only DTS 120-G) Attention! You can only adjust a mitre joint of 45° and 90°. The saw table will get damaged for all other degrees. -
Page 13: Malfunctions
8. Malfunctions Trouble Possible reason Remedy • Supply cable defect • New supply cable Motor does not work • Motor defect • May be remedied by an expert electrician only • Switch defect Motor stops while cutting • Advance too high •... -
Page 14: Guarantee
10. Guarantee The guarantee time is 12 months. The following wearing parts you will get only in guarantee, when the wearing is not due to working conditions. Wearing parts are parts, which will be worn out in working conditions due to intended use of a machine. - Page 15 LISSMAC Maschinenbau GmbH EC Declaration of conformity for Table – Saw DTS 120 / DTS 120-G • Producer: LISSMAC Maschinenbau GmbH Lanzstr. 4 D-88410 Bad Wurzach • Storage of the technical documents by: Andreas Buschle (Technical editor) LISSMAC Maschinenbau GmbH Lanzstr.
