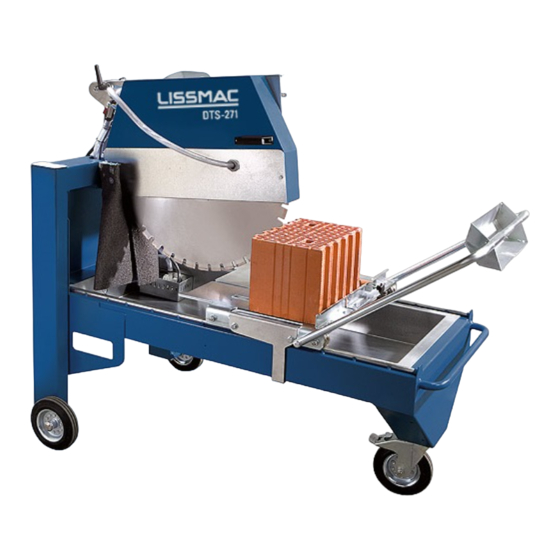

Masonry saw

Advertisement

Quick Links

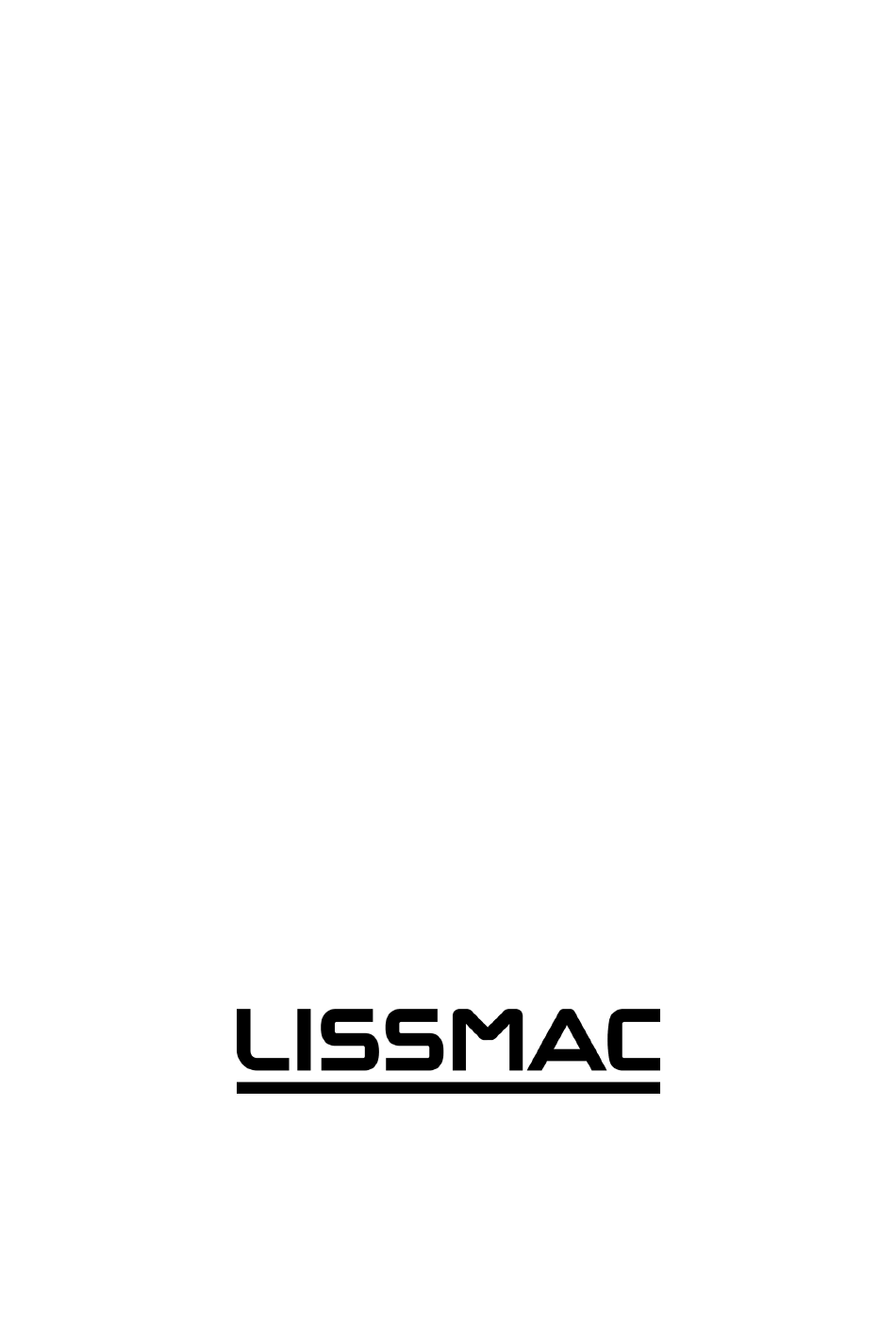

Operating Manual
Masonry saw
DTS 271
Maschinenbau GmbH
Lanzstraße 4 - D-88410 Bad Wurzach
Telefon +49 (0) 75 64/3 07-0 - Fax + 49 (0) 75 64/3 07-5 00
lissmac@lissmac.com - www.lissmac.com
State: 2011/11
Translation of the original operating manual
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the DTS 271 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Lissmac DTS 271

  • Page 1 Operating Manual Masonry saw DTS 271 Maschinenbau GmbH Lanzstraße 4 - D-88410 Bad Wurzach Telefon +49 (0) 75 64/3 07-0 - Fax + 49 (0) 75 64/3 07-5 00 lissmac@lissmac.com - www.lissmac.com State: 2011/11 Translation of the original operating manual...
  • Page 2: Table Of Contents

    Preface This operation manual has been established to make it easier to become familiar with the machine and to utilise its intended scope of applications. This operation manual contains important information on how to operate the machine in a safe, appropriate and economic manner.
  • Page 3: Basic Safety Information

    1. Basic safety information 1.1 Warnings and safety symbols used in this manual Danger! Indicates that non-observance may cause heavy or even deadly injuries to the operator Caution! Indicates that non-observance may probably cause physical injuries. Information! Indicates that non-observance may cause damages to the device or to other material or physical assets.
  • Page 4 Do not use any damaged saw blades Depending on the material to be cut, you can use a variety of saw blades of varying quality. You can obtain a sales list of saw blades from the Lissmac sales office. 1.2 Principle of intended use 1.2.1 The masonry saw is exclusively designed for the wet cutting of building bricks of mineral material.
  • Page 5 1.3 Organisational measures 1.3.1 This operation manual must always be kept and stored ready at hand near the place of operation. 1.3.2 Always observe any amendments to present operation manual as well as general legal and other regulations valid and in force for the prevention of accidents and environmental protection and make sure that these will be instructed! Any such obligations may also apply to the handling of hazardous...
  • Page 6 1.4 Choice of personnel and qualification; basic obligations 1.4.1 Only personnel having completed the 18 year of their life may operate this machine who have been made familiar with it and instructed accordingly. 1.4.2 Unnecessary stay within the operation area of the machine prohibited! 1.4.3 Operation personnel must take care with all movements performed with the machine that no third persons may get endangered.
  • Page 7 1.5.1 Special works to be performed with the machine under normal operation, service routines and trouble-shooting during operation; elimination Caution! 1.5.2.1 Thoroughly observe adjustment, maintenance and inspection routines at the terms scheduled including information regarding exchange of parts / equip- ment parts! These works may be performed by specialist experts only.
  • Page 8 1.6.2 Dust 1.6.2.1 There are respirable and med. respirable dust when cutting mineral working pieces. Always work with the water spraying system. 1.6.2.2 When operating the machine in narrow rooms, always observe relevant national rules and regulations valid and in force, if existing! 1.6.3 Noise value (see (2.4)
  • Page 9: Description Of Machine

    Transport Danger! 1.7.1 Use an appropriate lifting car with appropriate carrying force only! Danger! 1.7.2 Lock and secure the load in a reliable manner. Use appropriate stop points! Danger! 1.7.3 Disconnect power supply even in case of minor dislocation of the machine! Connect machine to the mains properly again before restarting of machine! Danger! 1.7.4 Consider the transport instructions (see 4).
  • Page 10 Technical data DTS 271 Motor power 5,5 KW Operation voltage 400 V Current consumption 11 A Connected load 400 V / 32 A Kind of current 3 PH + N + PE Safety class IP 55 Saw blade shaft r.p.m.
  • Page 11 2.5 Vibration at the handle action value Total value of vibration is under the of 2,5 m/s...
  • Page 12: Mounting And First Operation Preparations

    3. Mounting and first operation preparation Mounting tools • Fork wrench size 46 (for saw blade exchange) Mounting and assembly • Place saw on clean and stable ground. • Remove the packaging material. • Plug the power cord of the pump in. Fitting of the saw blade (or control of mounting) •...
  • Page 14: Transport

    Check sense of rotation of the saw blade • Shortly turn star-delta switch (Pos. 12) to "star" • Verify sense of rotation of saw blade. * Sense of rotation seen from left side in clockwise direction (indication arrow on the blade guard).
  • Page 15: Operation

    Operation Placing of the saw • The work place should be sufficiently illuminated. • Place the saw on clean and solid, stable ground. • Check if the saw is standing stable. Preparation of cut-off operations (see 3.4) Check sense of rotation of saw blade (see 3.5) Change sense of rotation (see 3.6) Cutting (see 3.7) Cutting quality of the saw blade...
  • Page 17: Maintenance

    Disassembly • Return star-delta switch (Pos. 12) to initial position. • Remove connection cable. • You should take the water pump out of the water and let the water drain off if there is danger of frost. ATTENTION! Pumps that are already frozen must be thawed out before starting them. •...
  • Page 18: Malfunctions And Obstructions

    Malfunctions and obstructions Trouble Possible reason Remedy Motor does not work • Supply cable defect • New supply cable • Motor defect • May be remedied by an expert electrician only • Switch defect Saw blade shows wrong sense • Motor poled wrong •...
  • Page 19: Guarantee

    10. Guarantee The guarantee time is 12 months. The following wearing parts you will get only in guarantee,when the wearing is not due to working conditions. Wearing parts are parts, which will be worn out in working conditions due to intended use of a machine.
  • Page 20 Conditional connections according to EN 61000-3-3:2009 or IEC 61000-3-11 =0.15Ω =0,1Ω at 50 Hz =0.1Ω =0.06Ω at 50 Hz...
  • Page 21 LISSMAC Maschinenbau GmbH EC Declaration of conformity for Masonry Saw DTS 271 • Producer: LISSMAC Maschinenbau GmbH Lanzstr. 4 D-88410 Bad Wurzach Storage of the technical documents by: • Andreas Buschle (Technical editor) LISSMAC Maschinenbau GmbH Lanzstr. 4 D-88410 Bad Wurzach •...
