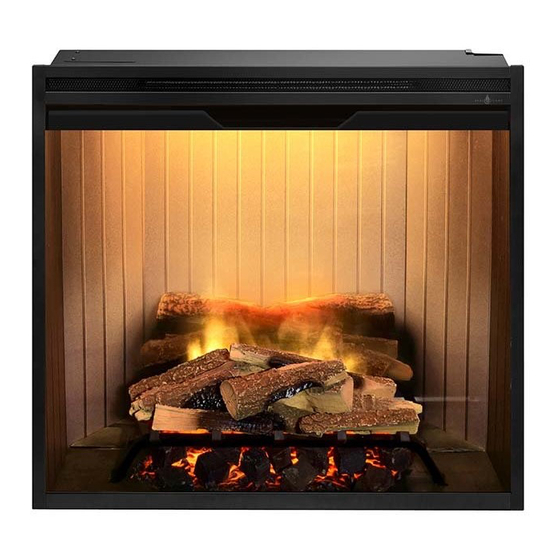

- Page 1 INSTALLATION & OPERATING MANUAL EVO Electric Firebox Models: EV O7 50 - AU , EVO 900- AU , EVO9 0 0P - AU The product is compliant with the local electrical standards of all countries where offered for sale by 8/54985/0 (AU/NZ) Issue 1.1 Glen Dimplex and its subsidiaries.
- Page 2 WELCOME Thank you for purchasing the EVO Electric Firebox. Rating Label Equipped with the latest Revillusion technology for an increased firebox depth to ensure you create endless memories in front of this majestic electric fire. CAUTION: Please read this information guide carefully to be able to safely install, use and maintain your product.
-
Page 3: Installation
INSTALLATION The EVO Built-in Electric Firebox offers an alternative to a wood or gas fireplace. It can give your existing fireplace new life or transform a cabinet or mantelpiece of your own into a stunning focal point. OPERATION TEMPERATURE to 40 C (-4 to 104 WARNING: Electrical outlet wiring must comply with local building codes and other applicable... - Page 4 UNIT AND CORNER DIMENSIONS EVO750-AU EVO900-AU EVO900P-AU 1378 1524 1524 1080 1080 1080 1080 WEIGHT EVO750-AU EVO900-AU EVO900P-AU 22.7 kg 27.2 kg 29.5 kg MINIMUM FRAMEOUT DIMENSIONS EVO750-AU EVO900-AU EVO900P-AU *All measurements are in mm...
- Page 5 PLACEMENT This firebox is a zero clearance design. It is recommended to leave 51mm of clearance area directly above the product for ventilation purpose. This clearance area can be located behind the finished wall surface. Note- While the 51mm clearance is recommended, it is not mandatory and may be reduced if required to suit a particular installation.
- Page 6 OPERATIONS TOUCH PANEL AND REMOTE CONTROLS WARNING: The EVO Built-in Electric Firebox must be installed properly before it is used. CAUTION: Except for installation and cleaning described in this manual, an authorised service representative should perform any other servicing. The manual controls for the EVO Built-in Electric Firebox are located on the front panel. Touch an icon to activate.
- Page 7 Icon Function Description Press to activate the current standby state (On/Off). • Standby State On Press to turn everything Off. Press again to activate the previous state. • Standby State Off Press to activate the previous state. Power/ - If the flame effect was On, the previous heat setting will be activated (On or Off). Standby - If the flame effect was Off, the previous heat setting will be activated (High or Low).
-
Page 8: Resetting The Temperature Cutoff Switch
Icon Function Description Press multiple times to change the flame base colors from Red to Blue to Off. (The first Color segment on the display will change from "r" to "b" to blank) This feature is active only when the flame effect is On. Themes Press multiple times to change the LEDs on the sides and back of the unit from Midnight mode to white to yellow to red. -
Page 9: General Maintenance
MAINTENANCE GENERAL MAINTENANCE Inspect the built-in electric firebox regularly, depending upon conditions, and at a minimum yearly intervals. Remove dust and clean the logs, grate, and base as required. WARNING: Disconnect power and allow heater to cool before attempting any maintenance or cleaning to reduce the risk of fire, electric shock, or injury. -
Page 10: Two Year Limited Warranty
TWO YEAR LIMITED WARRANTY Products to which this limited warranty applies This limited warranty applies to your newly purchased Real Flame EVO Firebox. This limited warranty applies only to purchases made in any State and Territory of Australia and New Zealand. This limited warranty applies to the original purchaser of the product only and is not transferable. - Page 11 or any labour or transportation costs. Such costs shall be the purchaser’s responsibility. What Glen Dimplex and its dealers and service agents are also not responsible for: IN NO EVENT WILL GLEN DIMPLEX, OR ITS DIRECTORS, OFFICERS, OR AGENTS, BE LIABLE TO THE PURCHASER OR ANY THIRD PARTY, WHETHER IN CONTRACT, IN TORT, OR ON ANY OTHER BASIS, FOR ANY INDIRECT, SPECIAL, PUNITIVE, EXEMPLARY, CONSEQUENTIAL, OR INCIDENTAL LOSS, COST, OR DAMAGE ARISING OUT OF OR IN CONNECTION WITH THE SALE, MAINTENANCE, USE,...
- Page 12 Website: Telephone: www.realflame.com.au AU: 1300 554 155 www.realflame.co.nz NZ: +64 9 274 8265 This product is protected by Intellectual property rights and patents owned by the Glen Dimplex Group on an international basis. The Glen Dimplex Group of Companies will actively protect these rights. Glen Dimplex.
