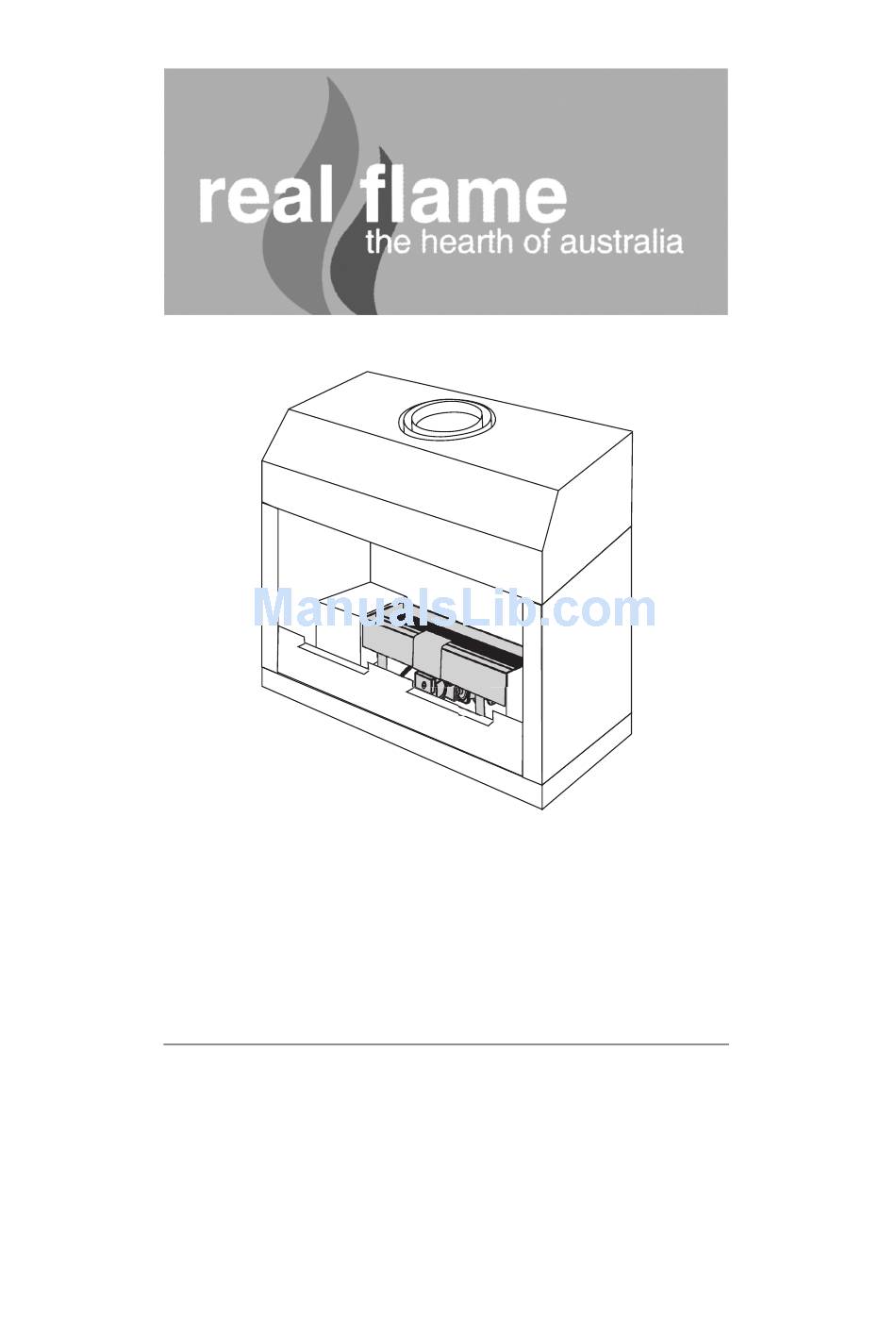

ELEGANCE
®
, SIMPLICITY
®
,
PURE VISION
®
DECORATIVE FIREBOXES
INSTALLATION & OPERATING MANUAL
Elegance – Simplicity – Pure Vision fire boxes are approved to be
installed as a zero clearance firebox and are designed to operate on
Natural Gas and Propane (LPG) gases ONLY.
Approval Numbers: 6094 & GSCS20018
Installed primarily as a decorative appliance. Not certified as a Space Heater.
VERSION 20
Advertisement
Table of Contents
Related Manuals for Real Flame ELEGANCE 850
Summary of Contents for Real Flame ELEGANCE 850
- Page 1 ELEGANCE ® , SIMPLICITY ® PURE VISION ® DECORATIVE FIREBOXES INSTALLATION & OPERATING MANUAL Elegance – Simplicity – Pure Vision fire boxes are approved to be installed as a zero clearance firebox and are designed to operate on Natural Gas and Propane (LPG) gases ONLY. Approval Numbers: 6094 &...
-
Page 2: Important Safety Notice
WARRANTY Provided your Real Flame gas fire is installed in strict accordance with our installation instructions, the firebox is unconditionally guaranteed for ten years and all other parts for twelve months from date of purchase. This unconditional warranty covers parts and labour at our discretion taking into consideration normal wear and tear and does not cover fires installed in outdoor settings. -
Page 3: Table Of Contents
CONTENTS Contents ........................3 Data Plate .........................4 Zero Clearance Modular Installation & Dimensions ..........5 Dimensions Elegance 850 ..................6 Dimensions Elegance 1000 ..................7 Dimensions Elegance 1800 ..................8 Dimensions Elegance 3300 ..................9 Dimensions Simplicity 850..................10 Dimensions Simplicity 1000...................11 Dimensions Simplicity 1800...................12 Dimensions Simplicity 3300...................13 Dimensions Pure Vision 850 ..................14... -
Page 4: Data Plate
DATA PLATE (Affixed to the base of the unit for reference to gas pressure & consumption) INJECTOR Mj/Hr APPROVAL No. BURNER MODEL MODEL SIZE ELEGANCE 850 2 x 2.2 2 x 1.1 0.08 2.60 6094 ELEGANCE 1000 2 x 2.5 2 x 1.2 0.43 2.55... -
Page 5: Zero Clearance Modular Installation & Dimensions
ZERO CLEARANCE MODULAR INSTALLATION • The Firebox is designed to be installed into a new frame out as shown on pages 18 & 19. • The fire can be installed at ground level or raised to what ever height is required providing the flue length is 2.7 meters or more. -
Page 6: Dimensions Elegance 850
DIMENSIONS Elegance 850 Elegance 850 Trim FRONT - 4 SIDED FRONT - 3 SIDED 1043 1043... -
Page 7: Dimensions Elegance 1000
DIMENSIONS Elegance 1000 1100 Elegance 1000 Trim FRONT - 4 SIDED FRONT - 3 SIDED 1193 1193... -
Page 8: Dimensions Elegance 1800
DIMENSIONS 1135 1900 Elegance 1800 LAME E 1800 1:20 Elegance 1800 Trim FRONT - 4 SIDED FRONT - 3 SIDED 1990 1990... -
Page 9: Dimensions Elegance 3300
DIMENSIONS Elegance 3300 1135 3400... -
Page 10: Dimensions Simplicity 850
DIMENSIONS Simplicity 850... -
Page 11: Dimensions Simplicity 1000
DIMENSIONS Simplicity 1000 1100... -
Page 12: Dimensions Simplicity 1800
DIMENSIONS Simplicity 1800 1135 1900 PLAN FRONT REAR... -
Page 13: Dimensions Simplicity 3300
DIMENSIONS Simplicity 3300 1135 3400... -
Page 14: Dimensions Pure Vision 850
DIMENSIONS Pure Vision 850... -
Page 15: Dimensions Pure Vision 1000
DIMENSIONS Pure Vision 1000 1100... -
Page 16: Dimensions Pure Vision 1800
DIMENSIONS Pure Vision 1800 1135 1900 PLAN FRONT 430mm REAR... -
Page 17: Dimensions Pure Vision 3300
DIMENSIONS Pure Vision 3300 1135 3400 430mm... -
Page 18: Elegance & Simplicity Timber Frame Installation
TRIM Frameout Dimensions (in mm) NOTE: All Modular fires and flue kits MODEL are to be installed PRIOR to ELEGANCE 850 1000 1000 2100 plasterboard. Plasterboard is to be run past stud frame and up to fire opening... -
Page 19: Pure Vision Timber Frame Installation
ZERO CLEARANCE MODULAR INSTALLATION - PURE VISION Timber Frame Installation (Recommended only) Frameout Dimensions (in mm) MODEL PURE VISION 850 1000 1000 2100 PURE VISION 1000 1000 1150 2100 PURE VISION 1800 1150 1950 3000 PURE VISION 3300 1235 3450 3600 NOTE: All Modular fires and flue kits are to be installed PRIOR to... -
Page 20: Zero Clearance Modular Installation
Place the coals or optional pebbles randomly on the ceramic blanket. If coals and logs option is supplied, place logs on top of coals randomly. IMPORTANT! Only ceramics supplied by Real Flame are to be used. DO NOT BLOCK INTAKES ON INSTALL... -
Page 21: Lighting/Testing And Failure Procedure
LIGHTING MAIN BURNER FOR YOUR SAFETY READ BEFORE LIGHTING Before igniting the fire, check for gas leaks. Use only the ignition components supplied. Do not use this appliance if any part has been under water. Immediately call a qualified service technician to inspect the appliance and replace any part of the control system and any gas control that has been under water. -
Page 22: Flue Requirements (Standard)
FLUE REQUIREMENTS Natural Draught The standard natural draught flue kit consists of 4 x 900mm lengths of twin skin flue (refer to page 5 for correct sizing) and an AGA approved cowl. 200mm 2 lengths above 500mm last bend 200mm Max. -
Page 23: Flue Requirements (Power Flue Kit)
FLUE REQUIREMENTS Power Flue Kit (Optional – refer to pages 13 to 19 for details) The standard Power Flue Kit consists of ; • 1 x Power Flue Fan • 1 x Power Flue Motor • 1 x Control Module •... -
Page 24: Optional Power Flue
FAN FAILURE SENSING DEVICE All Real Flame Power Flue systems are fitted with a sensing device within the unit to ensure that, in the event of flow failure, the safety shut off valve within the module will go into lockout and shut off the gas supply to the unit. - Page 25 OPTIONAL POWER FLUE (continued) Installation Instructions (continued) LOCATION OF FLUE TERMINAL FOR POWER FLUE Listed below are the minimum clearances required for fan-assisted terminations: Below eaves, balconies and other projections............200mm From the ground, above a balcony or other surface..........300mm From a return wall or external corner................300mm From a Gas meter.
- Page 26 SERVICING OF THE POWER FLUE MOTOR The Real Flame Power Flue motor is designed so as to make servicing the motor a simple task. The power lead connected to the motor is to be disconnected (unplugged) and the two side clips are to be undone, the fan motor will then lift out for servicing.
-
Page 27: Motor Clearance
OPTIONAL POWER FLUE (continued) Motor Clearance Minimum clearance 250mm Ensure there is adequate ventilation within this cavity to prevent motor over- heating. 150mm/200mm twin skin flue - optional for additional height Minimum Baffle Height 980mm height and diameter 350mm... -
Page 28: Frameout
OPTIONAL POWER FLUE (continued) Frameout IMPORTANT Motor Motor Motor Pressure Capacitor Differential Switch 4 mf Fan Casing... -
Page 29: Internal Motor
OPTIONAL POWER FLUE (continued) Internal Motor 500mm Top Termination 300mm min. 150mm x 200mm flue extension 200mm Access Panel Min. Distance Domestic: 220mm Motor Industrial: 320mm Termination 150mm x 200mm twin skin flue (if required) Baffle 900mm Heater 25mm Flue Minimum 25mm clearance from outer flue to combustible interior. -
Page 30: External Motor
OPTIONAL POWER FLUE (continued) External Motor 25mm clearance 200mm 340mm External Motor 150mm x 200mm flue extension 150mm x 200mm twin Miniumum skin flue (if required) 1290mm Baffle 900mm Heater NOTE: Maximum of 4 elbows, 45° or 90°. Fan Box Dimensions... -
Page 31: Flue Terminations
OPTIONAL POWER FLUE (continued) Flue Terminations 300mm 300mm Flue Door Window 1000mm 300mm 300mm Air Intake SECTION Window PLAN Flush Cowl Terminations 300x300 152 182 FRONT SIDE REAR Flush Cowl Terminations 500x500 152 182 FRONT SIDE REAR... -
Page 32: Wiring Diagram
Pressure Power Switch Double Block Solenoid Parts List PART No. DESCRIPTION Dungs BM.740-007 double block solenoid valve Dungs DGAI.73 Module 5.1.3. Electronic Ignition Sparker Electronic Flame Sensor Ecofit 2GTA35 Motor. Complete with ‘sail’ switch. 900mm Real Flame Power Flue Muffler. -
Page 33: Troubleshooting Electronic Ignition And Power Flue System
TROUBLE SHOOTING FOR ELECTRONIC IGNITION AND POWER FLUE SYSTEM. Symptom Possible Cause Corrective Action Fire turned on and No Power to Module Connect Power nothing happens Fire turned on and Pressure switch not Check pressure switch motor starts but operating there is no spark Fire sparks when A. - Page 34 TROUBLE SHOOTING FOR ELECTRONIC IGNITION AND POWER FLUE SYSTEM. (continued) The power flue and electronic control box have a red LED light that indicates the possible cause of a problem, the LED light will flash in different sequences for different problems, the most common are:- Long Flash Short Flash Normal Running State.
-
Page 35: Parts List
White Rogers Valve Used For Dungs Valve used On 1400 Sparker and Sensor Fitted to all Electronic Ignition For 850 & 100 Burner In 1800 Modular Box. Electronic Ignitions. Modular Boxes. Part Number: DUBM 241221 Part Number: GST0829985 Part Number: W0079 Techrite Electronic Ignition Techrite Power Flue Module used Regulator fitted to all Natural Gas... -
Page 36: Trims & Marble Options
TRIMS MODEL ELEGANCE 850 1043 1043 ELEGANCE 1000 1193 1193 MARBLE BASES AND FRONTS **NOTE: The marble base is used to access the main burner for service purposes, therefore it should not be stuck down under any circumstances. Required ** Base... -
Page 40: Real Flame Contact Information
REAL FLAME PTY LTD ABN 76 006 311 155 Head Office/Factory/Showroom 1340 Ferntree Gully Rd. Scoresby Vic 3179 Ph: (03) 8706 2000 Fax: (03) 8706 2001 E-mail: info@realflame.com.au Richmond - VIC Showroom 300 Swan St. Richmond Vic 3121 Ph: (03) 9428 4443 Fax: (03) 9428 4445 Geelong - VIC Showroom 1/2A Gordon Avenue.
