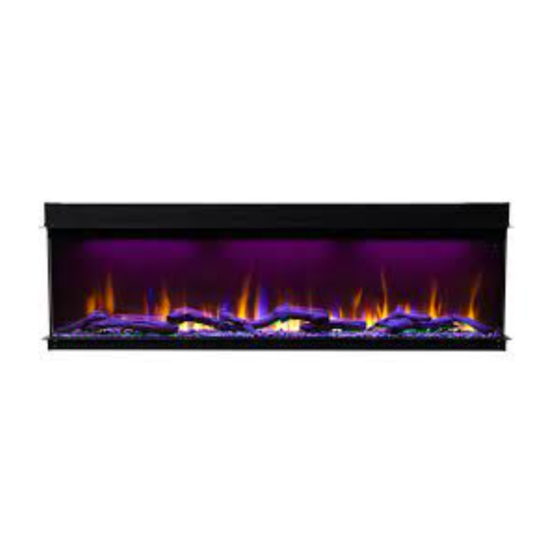

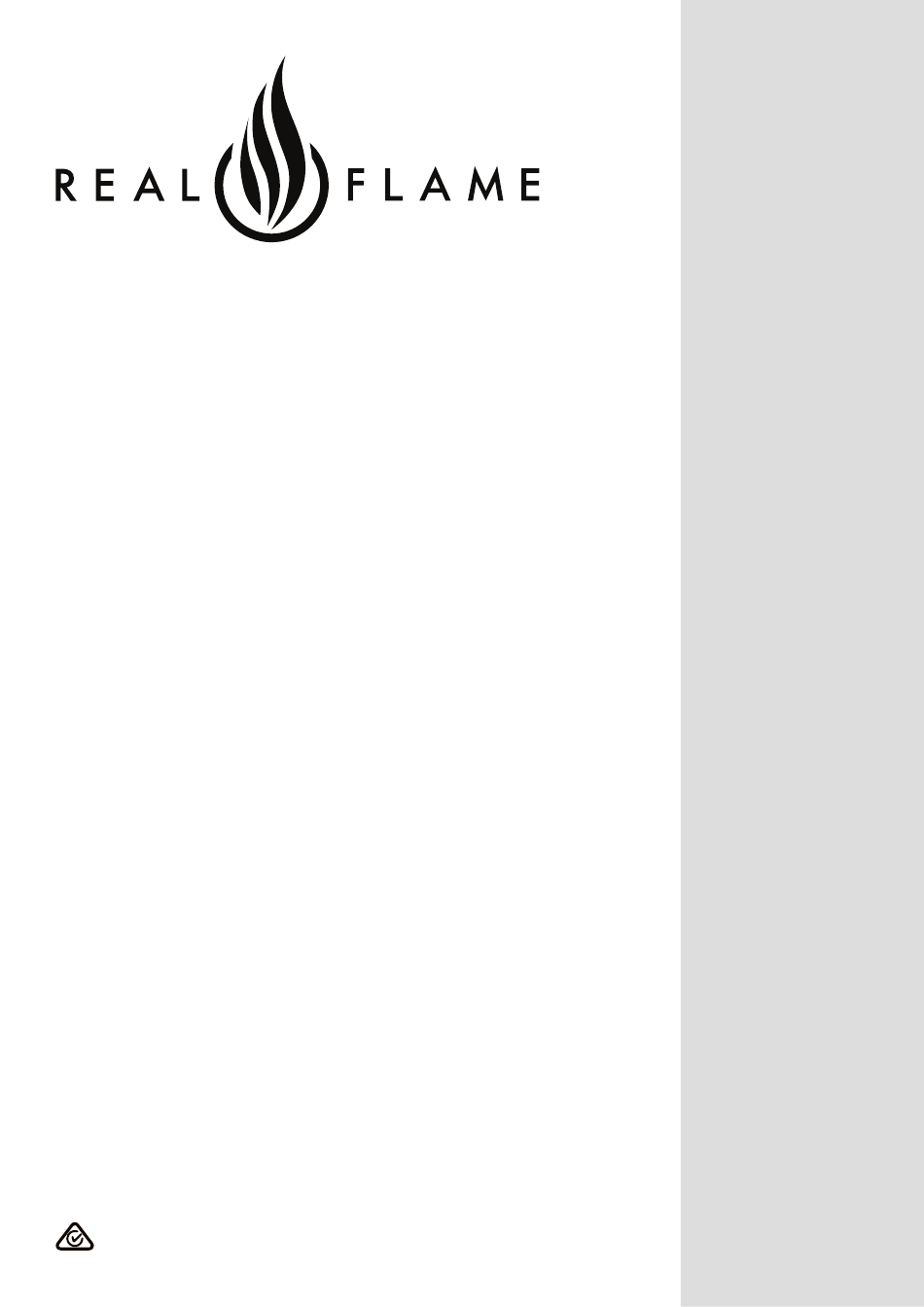

- Page 1 INSTALLATION & OPERATING MANUAL IGNITE XL BOLD Models • BXLF1200-AU • BXLF1800-AU • BXLF2500-AU The product is compliant with the local electrical standards of all countries where offered for sale by VERSION 1 VERSION X.1 Glen Dimplex and its subsidiaries.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Welcome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Technical Specifications . -
Page 3: Welcome
WELCOME Please carefully read and save these instructions. Please record your model and serial numbers for future reference. Model and serial numbers can be found on the label located behind the front glass of your fireplace. Model Serial Number Model and serial QR Code label number label (behind front glass) - Page 4 WELCOME Do not use this appliance in series with a thermal control, a program controller, a timer or any other device that switches on the heat automatically, since a fire risk exists when the heater is accidentally covered or displaced. Ensure that furniture, curtains or other combustible material are positioned no closer than 1 meter from the appliance.
- Page 5 WELCOME CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cut-out this appliance must not be supplied through an external switching device, such as a timer or connected to a circuit that is regularly switched on and off by the utility.
-
Page 6: Technical Specifications
TECHNICAL SPECIFICATIONS Electrical Requirements NOTE: A dedicated, properly fused 10 Amp circuit is required, rated for the appropriate voltage (230-240V). An isolation switch should also be incorporated in cases where the product plug is inaccessible after installation. An access panel is provided in the base of the product, it is advisable that the plug is located directly below this panel in the event that access is required to the plug after installation. -
Page 7: Package Contents
PACKAGE CONTENTS Quantity Image Description BXLF1200-AU BXLF1800-AU BXLF2500-AU Firebox Front Glass Mirrored Glass Side Glass Closed Side Trim Open Side Trim Mirrored Glass Bracket (lengths may vary) River Rock 4.5kg Media... - Page 8 PACKAGE CONTENTS Image Description BXLF1200-AU BXLF1800-AU BXLF2500-AU Driftwood Remote Control User’s and Installation Guide Suction Cup Do not dispose of the suction cup after installation. Keep it in a secure location as it will be helpful for maintenance and service of the unit. Hardware Kit Mounting Brackets...
-
Page 9: Installation
INSTALLATION Placement NOTE: It is recommended that the bottom of the unit be mounted between 5" (13 cm) and 40" (102 cm) from the ground to maintain an optimized viewing angle of the flame. WARNING: The top of the fireplace must be installed a minimum of 24" (61 cm) from the ceiling. The fireplace must be installed a minimum of 5"... -
Page 10: Preparing The Firebox For Installation
INSTALLATION Preparing the Firebox for Installation Figure 1 NOTE: For multi-unit installation, refer to instructions provided with the accessory kit (XLFXDLINK, sold separately). 1. Remove packing support brackets by removing the screws on each bracket. (Figure 1) These brackets and screws can be discarded. 2. -
Page 11: Installation Instructions
INSTALLATION Installation Instructions Figure 8 NOTE: Two people are required for installation. Bay Installation NOTE: Ensure the product is within 1m of a power outlet. Please refer to Electrical Requirements section on page 7 for more details. 1. Prepare a wall with a framed opening, following the dimensions in the table below. - Page 12 INSTALLATION 2. Lift the firebox into the opening in the frame using the handles on the back of the fireplace. NOTE: Ensure the instructions for Preparing the Firebox for Installation (p. 9) have been completed prior to installation. 3. Plug in the power cord coming from the fireplace. 4.
- Page 13 INSTALLATION Figure 14 Figure 15...
-
Page 14: Heater Hardware Disconnect
INSTALLATION Heater Hardware Disconnect The fireplace heater can be permanently disabled by removing the electronic jumper on the main control board. NOTE: Heater hardware disconnect will permanently disable the heater and fan. Follow these instructions only when an installation without heat is required. Temporary disabling of the heater can be achieved through the hidden touch controls. -
Page 15: Mirrored Glass Installation
INSTALLATION Mirrored Glass Installation Figure 17 1. Attach the provided suction cup to the reflective side of the mirrored glass. Ensure the suction cup is securely attached. 2. Using the suction cup to assist, lift the mirrored glass and place it into the bottom slot at an angle. 3. -
Page 16: Side Glass Installation
INSTALLATION Side Glass Installation Figure 20 1. Ensure the matte side of the upper black trimming is oriented toward the inside. 2. Insert the top of the glass panel into the upper slot. 3. Carefully tilt it toward the inside until it is in the vertical position. -
Page 17: Operation
OPERATION General Operation WARNING: This electric firebox must be properly installed before it is used. This firebox operates with Comfort$aver technology, which automatically adjusts the fan speed and heater wattage to safely and precisely match the requirements of the room based on the thermostat setting. The heater operates such that once the room reaches the set point, the fan and heater will continuously run at a low level, to maintain the desired room temperature. - Page 18 OPERATION Press to turn on the unit or to put it in standby mode. Standby When the unit is turned back on, it will retain the previously used settings. Flame Effect Press to turn the flame effect, media, and overhead lights on or off. Press to turn the heat on or off.
-
Page 19: App
OPERATION Press repeatedly to cycle through the brightness and flicker modes. Solid H - High Brightness Brightness Solid L - Low Brightness Cycle H - High Brightness with flickering media and overhead lights Cycle L - Low Brightness with flickering media and overhead lights Press repeatedly to cycle through the 7 different flame themes: 1 - Base with orange and blue accents... -
Page 20: Maintenance
MAINTENANCE Remote Control Battery Replacement Figure 25 To replace the battery: 1. Remove battery cover of the remote control using a Philips screwdriver. 2. Correctly install one 3 Volt (CR2032 [longer life] or CR2025) battery in the battery holder with the + side facing up. 3. -
Page 21: Troubleshooting
TROUBLESHOOTING For more troubleshooting, consult the XLF-XD Service Manual which can be found at www .realflame .com .au or www .realflame .co .nz Problem Display Cause Solution Ensure unit is receiving power Fireplace does not turn on with No incoming power Check main disconnect panel the manual touch controls Ensure wall switch is on (if applicable) -
Page 22: Wiring Diagrams
WIRING DIAGRAMS BXLF1200-AU BXLF1800-AU BXLF2500-AU... -
Page 23: Warranty
This limited warranty applies to your newly purchased purchase price for such product or part. Real Flame IGNITE XL BOLD™ fireplace. This limited 2) Limited warranty service will be performed solely by warranty applies only to purchases made in any State dealers or service agents of Glen Dimplex authorised to and Territory of Australia and New Zealand. - Page 24 RECYCLING At the end of the electrical products useful life it should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice in your area. Website: Telephone: www.realflame.com.au AU: 1300 554 155 www.realflame.co.nz NZ: +64 9 274 8265...
