Speedrooter XL
TO REMOVE DRUM
DISCONNECT MACHINE FROM POWER SOURCE BE-
FORE REMOVING DRUM FROM MACHINE!
1. Remove belt guard by loosening the knob above the motor and
pull belt guard forward.
2. Press down on motor and slide V-Belt off of drum.
3. Remove the cutter and connecting screw from the cable end.
4. Unscrew knob behind the front post and pull Power Cable Feed
off the machine.
5. Loosen the knob on front post cap (SXL-120), then open cap.
6. Loosen knob on rear drum shaft clamp (SXL-130), then open
cap.
7. Lift drum clear of machine.
TO INSTALL DRUM
DISCONNECT MACHINE FROM POWER SOURCE
BEFORE INSTALLING DRUM ON MACHINE!
1. Hang V-Belt from motor pulley. (64" belt for large drum, 57" for
small.)
2. Place drum on the machine, positioning the shaft into rear drum
clamp first. Rotate the drum until the hole in the shaft fits over
the guide pin in the clamp.
3. Then put the distributor tube into the front post clamp.
4. Close front and rear clamps. Then tighten knobs.
5. Slip V-Belt under drum.

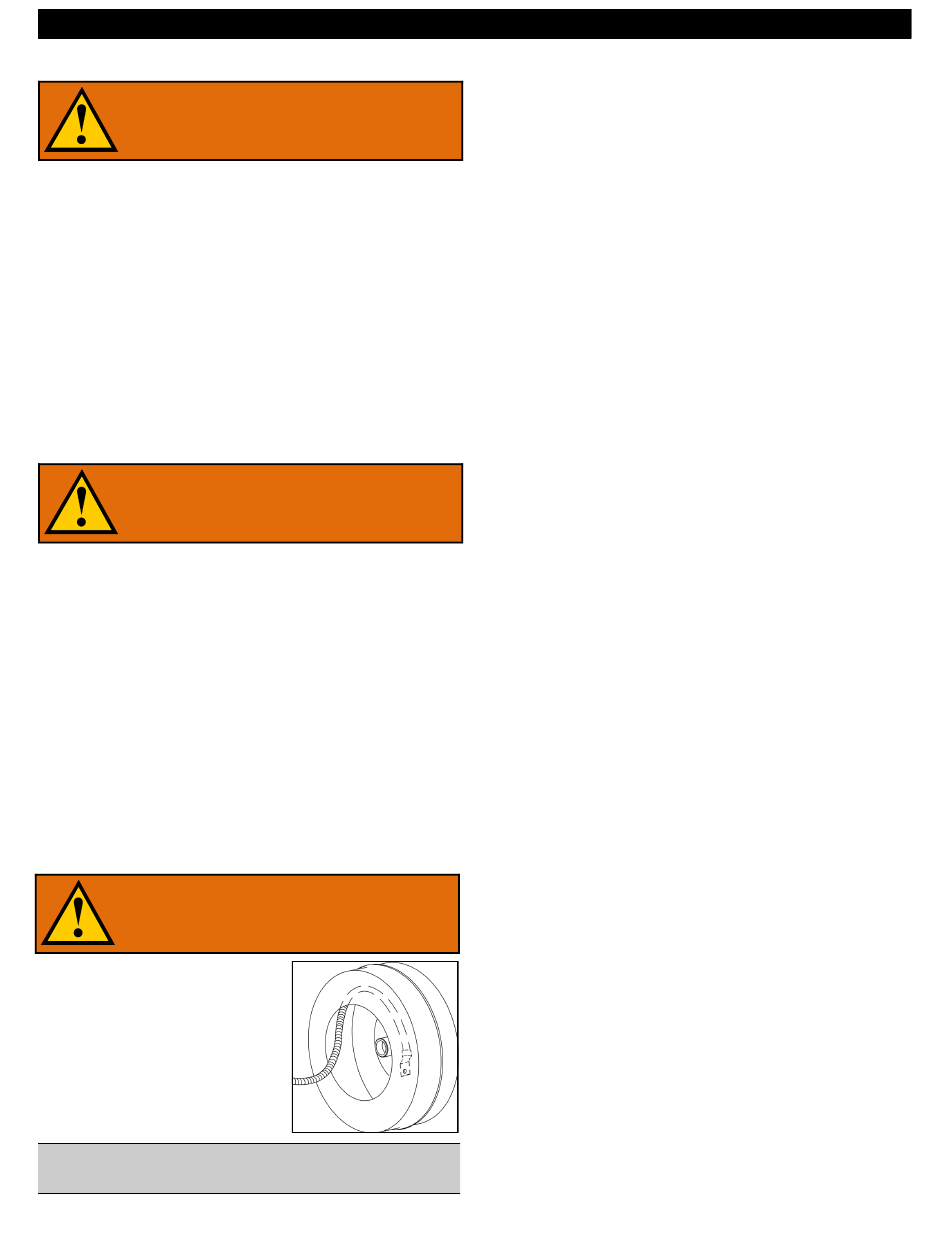

TO INSTALL CABLE IN DRUM
DISCONNECT MACHINE FROM POWER SOURCE
BEFORE INSTALLING CABLE IN DRUM!
To install cable in the drum, simply con-
nect the male end of the cable to the
drum connecting cable, which is already
attached to the drum. Then remove the
drum V-Belt and turn the drum clockwise,
while pushing cable into the drum.
NOTE: The cable must lay in the drum in the correct direction or it will
tangle in the drum.
