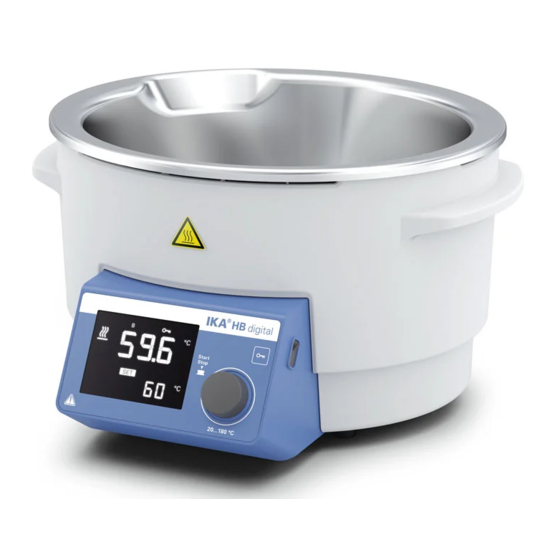

Summary of Contents for IKA HB digital

  • Page 1 HB digital...
  • Page 2 ENGLISH...
  • Page 3: Table Of Contents

    EU Declaration of conformity �������������������������������������������������������������6 Explication of warning symbols ��������������������������������������������������������� 6 Safety instructions ����������������������������������������������������������������������������� 7 Intended use ������������������������������������������������������������������������������������� 9 Unpacking �������������������������������������������������������������������������������������� 10 Operator panel and display ������������������������������������������������������������� 11 Fig. 1 Operation ��������������������������������������������������������������������������������������� 12 Interfaces and outputs �������������������������������������������������������������������� 21 Maintenance and cleaning �������������������������������������������������������������� 23 Error codes �������������������������������������������������������������������������������������...
  • Page 4: Eu Declaration Of Conformity

    EN 61010-1, EN 61010-2-010; EN 61326-1, EN 60529 and EN ISO 12100� A copy of the complete EU Declaration of Conformity or further declarations of conformity can be requested at sales@ika�com� Beep Indicates action steps, for which beep sounds are to be heard�...
  • Page 5: Intended Use

    The heating bath is not used for tempering foods� The heating Only put together accessories with the power supply cable disconnected� � bath is suitable for use with rotary evaporators from IKA� Damage to the device due to improper use Recommended tempering media Empty the heating bath before transportation�...
  • Page 6: Unpacking

    Unpacking Operator panel and display /// Unpacking /// Operator panel Unpack the device carefully� Any damage should immediately be reported to the carrier (mail, rail or freight forwarding company)� /// Scope of delivery heating bath power cord user guide USB cable Handle Power socket Mains switch...
  • Page 7: Fig. 2

    /// Display Note: Only the display segments shown on Fig� 3 are available in functions for the current de- vice� The set operating mode (A/B/C) is indicated on the top of the display (Fig� 5)� � The heating bath temperature is held constant by the control circuit and is additionally monito- �...
  • Page 8 /// Setting the target temperature Activate the SET function by turning and pressing the rotating/pressing knob� Switch on the device using the mains switch, when the opening screen (Fig� 5) appears and � the setting for the safety temperature is activated for 5 seconds� “SAFE TEMP�“ flashes on the display, see also “Setting the safety temperature“�...
  • Page 9 The heating function must be restarted following a power failure� � The following settings are possible/adjustable: � - the target value, www. - the safety circuit, - the controller tempering medium� Mode A always appears on the top of the screen� �...
  • Page 10 /// Setting the safety temperature SAFETEMP . Safety circuit The adjustable safety circuit prevents the temperature of the heating bath from getting too high as a result of: - a controller error, - the rotating/pressing knob having been accidentally turned� Once the safety temperature has been reached, the device switches off permanently�...
  • Page 11: Interfaces And Outputs

    TEMP . °C Install the driver by running the setup file� Then connect the IKA device to the PC via the USB data cable and follow the instructions� The data communication is via a virtual COM port� /// Command syntax and format °C...
  • Page 12: Maintenance And Cleaning

    STOP_2 Stop heating For cleaning disconnect the mains plug! � Use only cleaning agents which have been approved by IKA to clean the devices: � Water containing surfactant / isopropyl alcohol� /// USB cable A - B: Wear protective gloves during cleaning the devices�...
  • Page 13: Error Codes

    › Switch off the device › Let the device cool down Causes › In remote operation (PC), no communication between RV 10 and HB digital › Fill up the tempering medium › Switch on the device › IR connection to RV 10 disconnected Effect ›...
  • Page 14: Technical Data

    Technical data Warranty In accordance with IKA warranty conditions, the warranty period is 24 months� For claims � under the warranty please contact your local dealer� You may also send the device direct to our factory, enclosing the delivery invoice and giving reasons for the claim� You will be liable Power supply for freight costs�...
  • Page 15 Phone: +84 28 38202142 Phone: +66 2059 4690 Phone: +90 216 394 43 43 eMail: sales�lab-vietnam@ika�com eMail: sales�lab-thailand@ika�com eMail: sales�turkey@ika�com Discover and order the fascinating products of IKA online: www.ika.com IKAworldwide IKAworldwide /// #lookattheblue @IKAworldwide Technical specifications may be changed without prior notice�...
