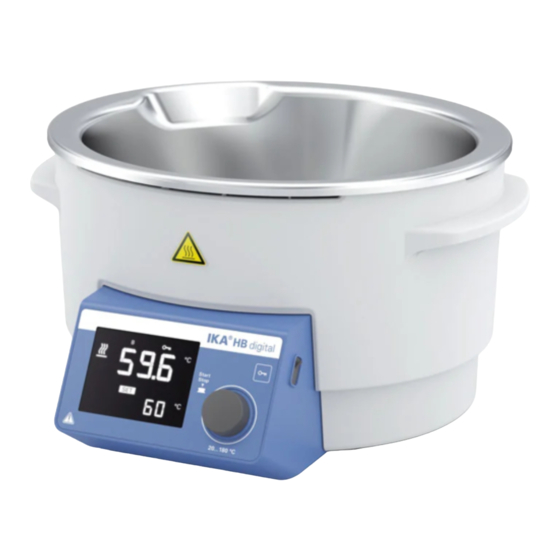

HB digital

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HB digital and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IKA HB digital

Summary of Contents for IKA HB digital

  • Page 1 HB digital...
  • Page 3 ENGLISH...
  • Page 4 Fig. 1...

  • Page 5: Table Of Contents

    EU Declaration of conformity �������������������������������������������������������������6 Explication of warning symbols ��������������������������������������������������������� 6 Safety instructions ����������������������������������������������������������������������������� 7 Intended use ������������������������������������������������������������������������������������� 9 Unpacking �������������������������������������������������������������������������������������� 10 Operator panel and display ������������������������������������������������������������� 11 Operation ��������������������������������������������������������������������������������������� 12 Interfaces and outputs �������������������������������������������������������������������� 21 Maintenance and cleaning �������������������������������������������������������������� 23 Error codes �������������������������������������������������������������������������������������...

  • Page 6: Eu Declaration Of Conformity

    2014/30/EU and 2011/65/EU and conforms with the following standards or normative docu- ments: EN 61010-1, EN 61010-2-010; EN 61326-1, EN 60529 and EN ISO 12100� A copy of the complete EU Declaration of Conformity can be requested at sales@ika�com� Explication of warning symbols /// Symbols used in this instruction manual “Safety instructions”...

  • Page 7: Safety Instructions

    Incorrect Indicates incorrect implementation of an action step� Please note Indicates action steps for which particular attention must be paid to a particular detail� Beep Indicates action steps, for which beep sounds are to be heard� Power outage Indicates device restart after a power outage� Internet Indicates action steps for which further information is included in the online www.
  • Page 8 Before commissioning, read and observe the safety instructions� � Keep the operating instruction manual accessible for all users� � /// Other risks Risk of burning at hot surfaces The top edge of the heating bath can heat up to temperatures above 65 °C during operation� Do not touch hot device components without protective gloves�...

  • Page 9: Intended Use

    The heating bath is used for tempering media� It is the user’s responsibility to to determine � which medium is tempered� The heating bath is not used for tempering foods� The heating bath is suitable for use with rotary evaporators from IKA� Recommended tempering media › Water (up to 80 °C) ›...

  • Page 10: Unpacking

    Unpacking /// Unpacking Unpack the device carefully� Any damage should immediately be reported to the carrier (mail, rail or freight forwarding company)� /// Scope of delivery heating bath power cord user guide USB cable...

  • Page 11: Operator Panel And Display

    Operator panel and display /// Operator panel Power socket Handle Bath insert Mains switch Display Rotating / pressing knob USB interface IR interface Key “Lock“...

  • Page 12: Operation

    /// Display Fig. 2 Fig. 3 Fig. 4 Fig. 5 Fig. 6 Fig. 7 Fig. 8 Fig. 9 Fig. 10 Fig. 11 Fig. 12 Operation /// Start-up Observe the ambient conditions (temperature, humidity, etc�) listed under “Technical data”� � The unit is ready for service when the mains plug has been plugged in� �...
  • Page 13 Note: Only the display segments shown on Fig� 3 are available in functions for the current de- vice� The set operating mode (A/B/C) is indicated on the top of the display (Fig� 5)� � The heating bath temperature is held constant by the control circuit and is additionally monito- �...
  • Page 14 /// Setting the target temperature Activate the SET function by turning and pressing the rotating/pressing knob� Switch on the device using the mains switch, when the opening screen (Fig� 5) appears and � the setting for the safety temperature is activated for 5 seconds� “SAFE TEMP�“ flashes on the display, see also “Setting the safety temperature“�...
  • Page 15 °C TEMP . TEMP . °C °C °C °C TEMP . TEMP . °C °C /// Setting the operating modes Operating mode A Switch on the device at the mains switch� � The heating function is switched off� � Safe Temp (safety temperature) will appear for 5 seconds� �...
  • Page 16 The heating function must be restarted following a power failure� � The following settings are possible/adjustable: � - the target value, - the safety circuit, - the controller tempering medium� Mode A always appears on the top of the screen� �...
  • Page 17 www. www. TEMP . SAFETEMP . °C °C °C TEMP . TEMP . TEMP . °C °C °C...
  • Page 18 /// Setting the safety temperature Safety circuit The adjustable safety circuit prevents the temperature of the heating bath from getting too high as a result of: - a controller error, - the rotating/pressing knob having been accidentally turned� Once the safety temperature has been reached, the device switches off permanently� Furthermore, dry running of the heating bath is detected�...
  • Page 19 SAFETEMP . SAFE TEMP . °C SAFETEMP . TEMP . TEMP . °C °C °C SAFETEMP . TEMP . TEMP . °C °C °C /// Controlling the medium temperature The medium temperature is limited by the set safety temperature, controlled by means of a PID controller and measured by the PT 1000 temperature sensor, and the medium is heated up as quickly as possible without overshooting to the set temperature�...
  • Page 20 /// Key “Lock“ The operating settings can be locked by pressing and holding the key for 2 seconds, preventing any inadvertent changes during operation� The lock symbol appears on the screen when this function is activated� (Fig� 10) Press and hold the key again for 2 seconds to unlock the operating settings� The lock symbol dis- appears when function is deactivated�...

  • Page 21: Interfaces And Outputs

    First, download the latest driver for IKA devices with USB interface from: http://www.ika.com/ika/lws/download/usb-driver.zip Install the driver by running the setup file� Then connect the IKA device to the PC via the USB data cable and follow the instructions� The data communication is via a virtual COM port�...
  • Page 22 IN_SP_3 Read safety temperature set value OUT_SP_3 V Set safety temperature value IN_SP_74 Read medium type set value (1 - water, 0 - oil) OUT_SP_74 V Set medium type value (1 - water, 0 - oil) START_2 Start heating STOP_2 Stop heating /// USB cable A - B: This cable is required to connect USB port to a PC�...

  • Page 23: Maintenance And Cleaning

    /// Cleaning: For cleaning disconnect the mains plug! � Use only cleaning agents which have been approved by IKA to clean IKA devices� � These are water (with tenside) and isopropanol� Wear protective gloves during cleaning the devices�...

  • Page 24: Error Codes

    › Carry out corrective measures� › Restart the device� Error code | Causes | Effect | Solutions Causes › In remote operation (PC), no communication between RV 10 and HB digital › IR connection to RV 10 disconnected Effect ›...
  • Page 25 Causes › The heater control circuit switch (TRIAC) is faulty� › The heater or the supply line is disconnected� Effect › Heating switched off Solutions › Switch off the device and switch on again Causes › Dry running Effect › Heating switched off Solutions ›...

  • Page 26: Technical Data

    Technical data Power supply 200���240 ±10 % Voltage 100���120 ±10 % Frequency 50 / 60 Power input 1450 Power input standby Heating function Heat control Set temperature resolution ± 1 Heating temperature min� ��� max� °C Room temperature ��� 180 Heat output 1400 Controller oscillation (3l water / 90 °C):...

  • Page 27: Warranty

    Warranty In accordance with IKA warranty conditions, the warranty period is 24 months� For claims � under the warranty please contact your local dealer� You may also send the device direct to our factory, enclosing the delivery invoice and giving reasons for the claim� You will be liable for freight costs�...
  • Page 28 VIETNAM IKA Vietnam Company Limited Phone: +84 28 38202142 eMail: sales�lab-vietnam@ika�com Discover and order the fascinating products of IKA online: www.ika.com IKAworldwide IKAworldwide /// #lookattheblue @IKAworldwide Technical specifications may be changed without prior notice�...
