Installation

1
1-1 Installation
1. Avoid installing the product in a place directly exposed to rain or water.
■ Consult us in advance if you use the product outdoors, or in a place exposed to dust or water.
2.Install the product in an area with an ambient temperature of between 0ºC and 40ºC.
■ If you plan to use the product beyond the above mentioned temperature range (at higher or lower temperature), be sure to consult us.
3.Securely fix the product using bolts on a solid installation bench that is not prone to vibration.
■ Install the horizontal type horizontally, the vertical type (with downward output shaft) and inverted type (with upward output shaft)
vertically. Failure to follow this could result in malfunction due to poor lubrication.
For inclined installation, consult us.
4. Install the product in a way that provides easy access for inspection and maintenance.
■ To make it easy to add and drain lubricating oil, install the product at a level of approximately 10 cm from the floor by securing a top
clearance of approximately 30 cm.
■ When installed the product into machines, place it so that the oil level can be checked externally, and lubricating oil can be easily replaced
using pipes.

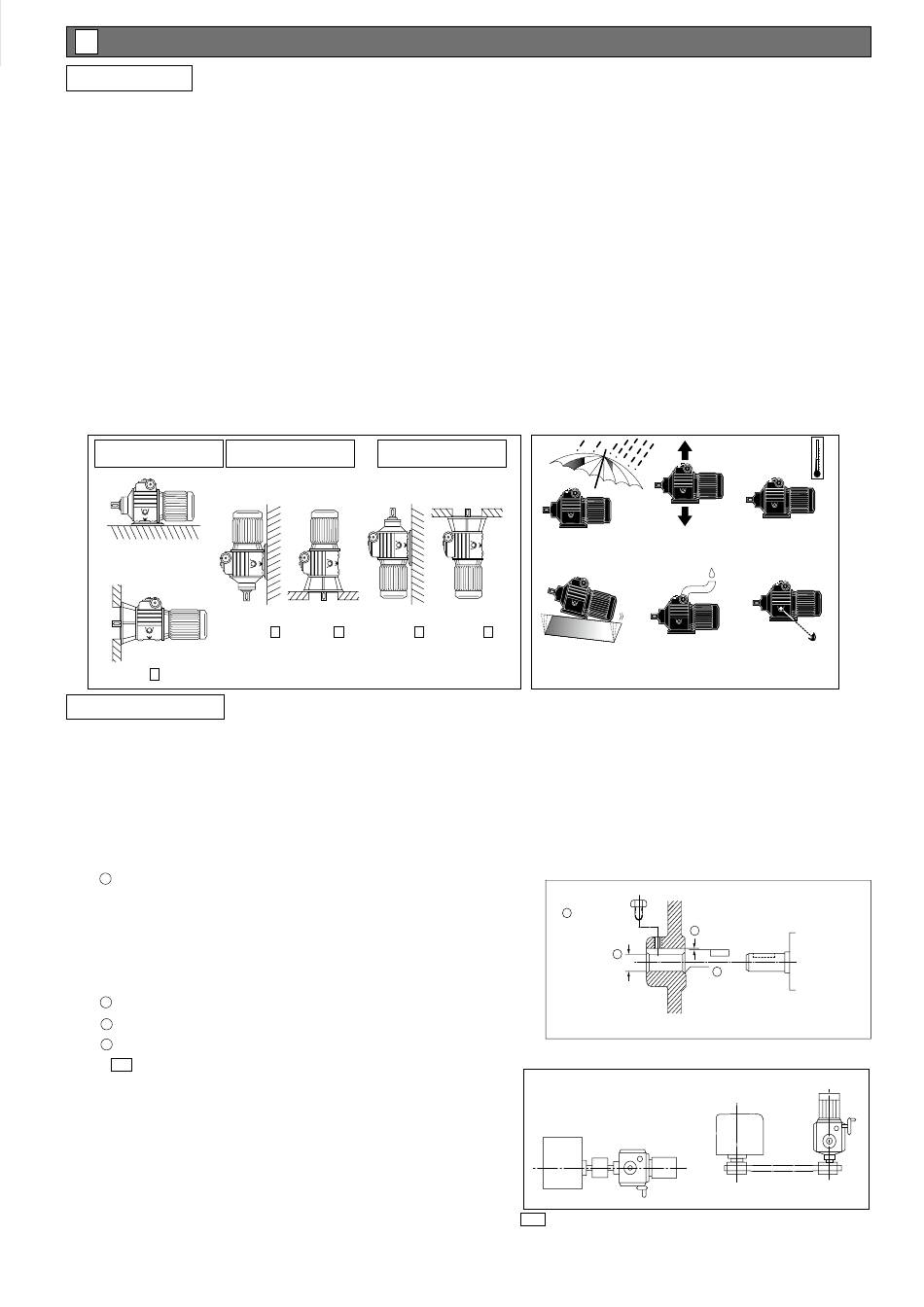

[ Output shaft direction and installation direction ] [ Installation conditions ]
Horizontal type
(with horizontal output shaft) (with downward output shaft)
NRXMK Base type
NRXMK Y
Base type
NRXMK X Flange type
1-2 Connections
1. Allow a sufficient margin when setting the rotating speed and torque.
■ When driving the mated machine at the maximum speed, connect the speed drive so that it also operates at the maximum rotation.
■ For machines of which torque increases at the lower speed (such as those with constant horsepower characteristics), set the maximum torque to be
within the rated torque of the speed drive.
2. When connecting the product, do not apply impact force and/or excessive thrust load on the output shaft
(use tapping hole on the output shaft for 11K to 18K).
a Since the output shaft diameter dimension tolerance of the speed drive has been
set to h6 for 200B to 7500, and m6 for 11K to 18K, set the hole tolerance of the
coupling, pulley, chain sprocket, and gear, which are to be mounted, to H7 for
200B to 7500, and F7 for 11K to 18K. Then, push the output shaft into the hole
by tapping with a wooden or plastic hammer. Pushing the shaft by hitting it hard
could result in damage to bearings and/or the inside of the speed drive.
b Chamfer the hole mouth by approximately 1 mm.
c Make clearance of 0.1 mm to 0.2 mm for the key head.
d Hold and secure the key head using a set bolt.
Note : Make the effective diameter of the coupling, pulley, chain sprocket, and gear, etc. at least
five times the output (input) shaft diameter of the speed drive. Be careful not to allow
impact, vibration, and/or excessive thrust load from the machine to apply to the shaft ends.
(For information about allowable shaft weight, refer to the catalog).
3.Ensure centering before connection.
■ For connection with a coupling, properly align the speed drive shaft with
the mated machine shaft.
■ For connection with pulley, chain sprocket, and gear, etc., properly make
the speed drive shaft parallel with the mated machine shaft, determine the
correct center line, and fit precisely.
Vertical type Inverted type
(with upward output shaft)
NRXMK V NRXMK Z
Flange type Base type
Keep from getting wet
NRXMK I
Flange type
Install horizontally on a
vibration-free bench
d Set bolt
a
Mated machine
Coupling
Note : The output shaft rotation direction for the speed drive equipped with a
Coronet speed reducer (N11, 17, 29, 35, 47, 59, 71 types) is the same as that
of the input shaft.
5
30cm
10cm
Provide sufficient Maintain an ambient
clearance temperature between
0ºC and 40ºC
Make it easy to add Make the oil gauge
and drain oil easily visible
c
Adjustable
speed drive
b
Output shaft
Coupling
Pulley
Chain sprocket
Gear
Mated machine
Speed drive
Belt, chain, gear
Speed drive
