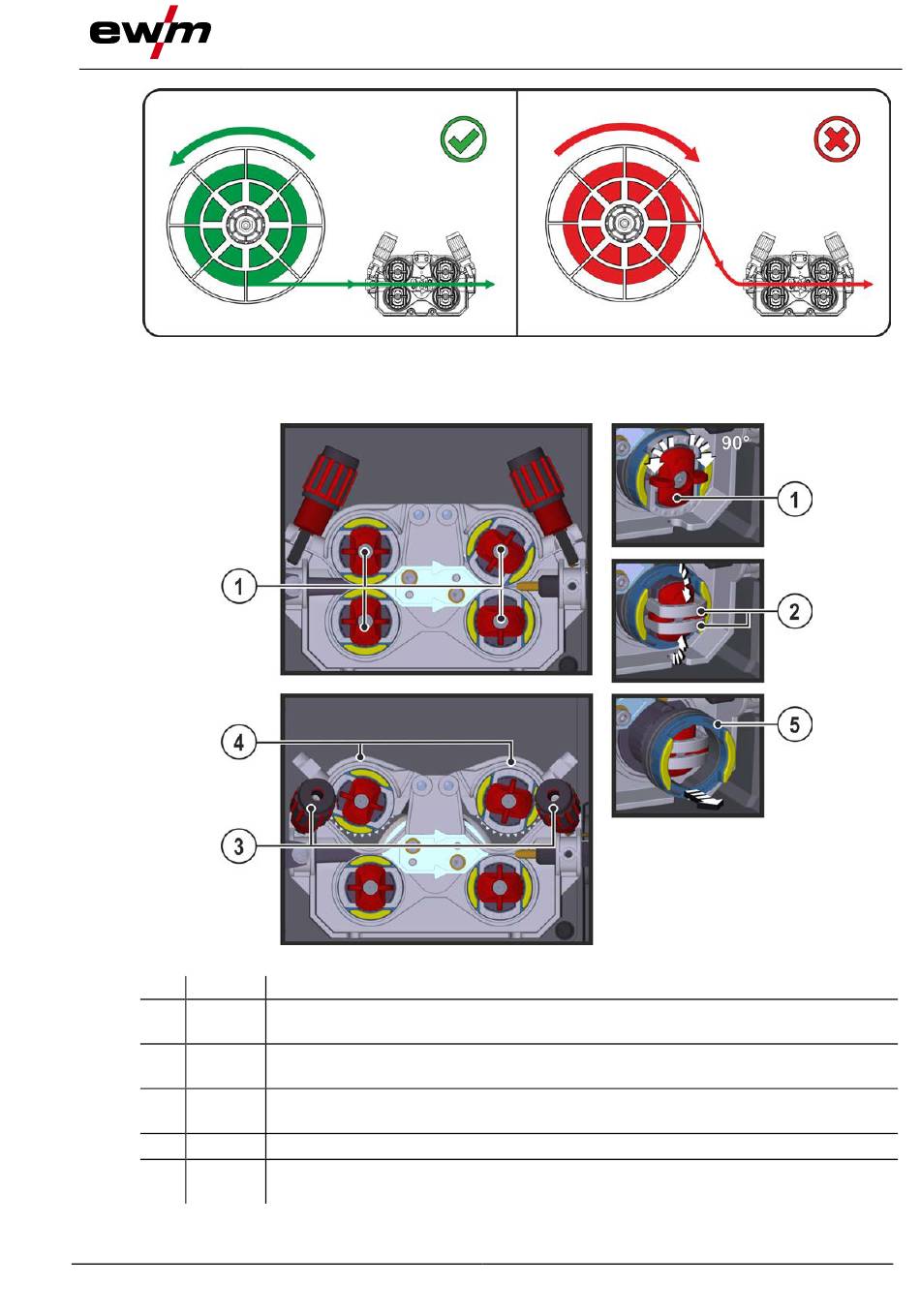

Observe the unwinding direction of the wire spool.
5.3.3.2

Changing the wire feed rollers

Item Symbol
1
2
3
4
5
099-005593-EW501
10.01.2022
Description 0
Tommy
The tommy is used to secure the closure brackets of the wire feed rollers.
Closure bracket
The closure brackets are used to secure the wire feed rollers.
Feed roll tensioner
Fixing the clamping unit and setting the pressure.
Clamping unit
Wire feed roller
see the Wire feed roller overview table
Figure 5-14
Figure 5-15
Design and function
MIG/MAG welding
