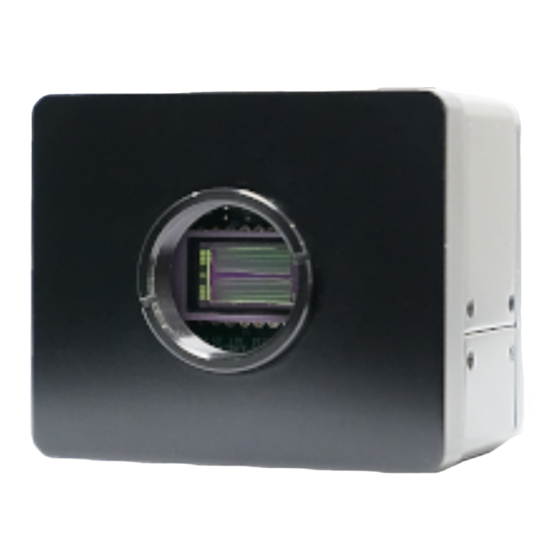

- Page 1 Feb 4, 2022 Ver1.02 USB3.0 I n G a A s LINESCAN CAMERA ARTCAM-LTNIR series INSTRUCTION BOOKLET 512 pixels ARTCAM-L512TNIR 256 pixels ARTCAM-L256TNIR ARTRAY CO., LTD. - 1 -...
-
Page 2: Table Of Contents
Contents Attention ..............................- 3 - Introduction .............................. - 6 - Main Features ............................- 6 - The Product .............................. - 6 - Connect the Camera ..........................- 7 - 5.1. How to Connect a Camera ......................- 7 - 5.2. -
Page 3: Attention
1. Attention ■ About this manual 1．Before using the camera, please read this manual thoroughly. 2．Please keep this manual reachable and always refer to the contents when needed. 3．Please contact us if the manual is lost or damaged. We will provide a replacement. 4．We cannot guarantee the safety of improper uses of the camera. - Page 4 ■ For Safe Use Warning ●In following circumstances, please stop using the product and turn off the power immediately to prevent the risks of fires and electric shocks. If the product is defective, please contact us for repair or exchange. For your safety, please do not disassemble, modify or repair the camera on your own. Please stop using the product and turn off the power immediately when: ・...
- Page 5 For more details, please refer to the sites below: Hardware Warranty: http: //www.artray.us/download/artray_warranty.pdf ■ Dispose To dispose this product, please return the camera to us. If you decide to dispose the camera without returning it us, please follow related regulations and have the camera disposed as an industrial waste.
-
Page 6: Introduction
2. Introduction ARTCAM-LTNIR series include 2 kinds of NIR camera which adopts a 512 / 256 InGaAs (Indium gallium arsenide) sensor. The cameras have a high sensitive spectral response from 950 nm to 1700 nm. ARTCAM-LTNIR series adopts USB3.0 interface, so image data can be delivered to PC directly without a capture board. -
Page 7: Connect The Camera
5. Connect the Camera 5.1. How to Connect a Camera DC12V To power outlet AC adapter 5.2. Shutter Speed The shutter speed can be set with standard viewer software. Model Method Range : 89~5039(Exposure Time：10~1000 μsec) ARTCAM-L512TNIR Exposure Time=(Shutter Value – 39) x 0.2 [μsec] ARTCAM-L256TNIR - 7 -... -
Page 8: Specifications
6. Specifications ARTCAM-L512TNIR ARTCAM-L256TNIR Sensor Type InGaAs linear Image Sensor Number of effective pixels Resolution Active Imager Size 12.8(H)x0.025(V)mm 12.8(H)x0.05(V)mm Scan Mode Line Scan Pixel Size 25(H)x25(V)μm 50(H)x50(V)μm Detected Wavelength 950~1700nm scan/sec 8150Hz 14000Hz Pixel Rate 5MHz Sensitivity 0.82 A/W Full Well Capacity 2800Ke- A/D Resolution... -
Page 9: Spectral Sensitivity Characteristics
7. Spectral sensitivity characteristics 7.1. ARTCAM-L512TNIR/ARTCAM-L256TNIR - 9 -... -
Page 10: External Dimensions
8. External Dimensions 8.1. ARTCAM-L512TNIR/ARTCAM-L256TNIR HR10A-7R-6S(73) (HIROSE) ※ Specifications are subject to change. - 10 -... -
Page 11: Optional Functions
9. Optional Functions 9.1. External trigger function ARTCAM-TNIR series are designed with external trigger. (Following input circuit diagram applies to L512TNIR, L256TNIR) HR10A-7R-6S(73) (HIROSE) ※ The connector pin assignment is subject to change. 9.2. External output function You can use the external output function by factory option. It is possible to output and monitor the vertical synchronization, horizontal synchronization, exposure time etc controlled inside the FPGA. -
Page 12: Each Terminal Information On The Back Of The Camera
9.3. Each terminal information on the back of the camera External I/O terminal HR10A-7R-6S(73) (Hirose) USB3.0 microB port Power port DC12V - 12 -... -
Page 13: System Requirements
What may cause the problem is that the regulation of the power lines becomes not enough, and so causes impudence mismatch on data signals. *For the recommended extension cable, please contact our sales department. (TEL: +81-3389-5488) ARTRAY Co., LTD. Obtained ISO 9001: 2015 2018/9/17 1-17-5 Kouenjikita, Suginami-ku, Tokyo 166-0002 Japan TEL: +81-3-3389-5488 FAX: +81-3-3389-5486 Email: sales@artray.us...
