Technical Information

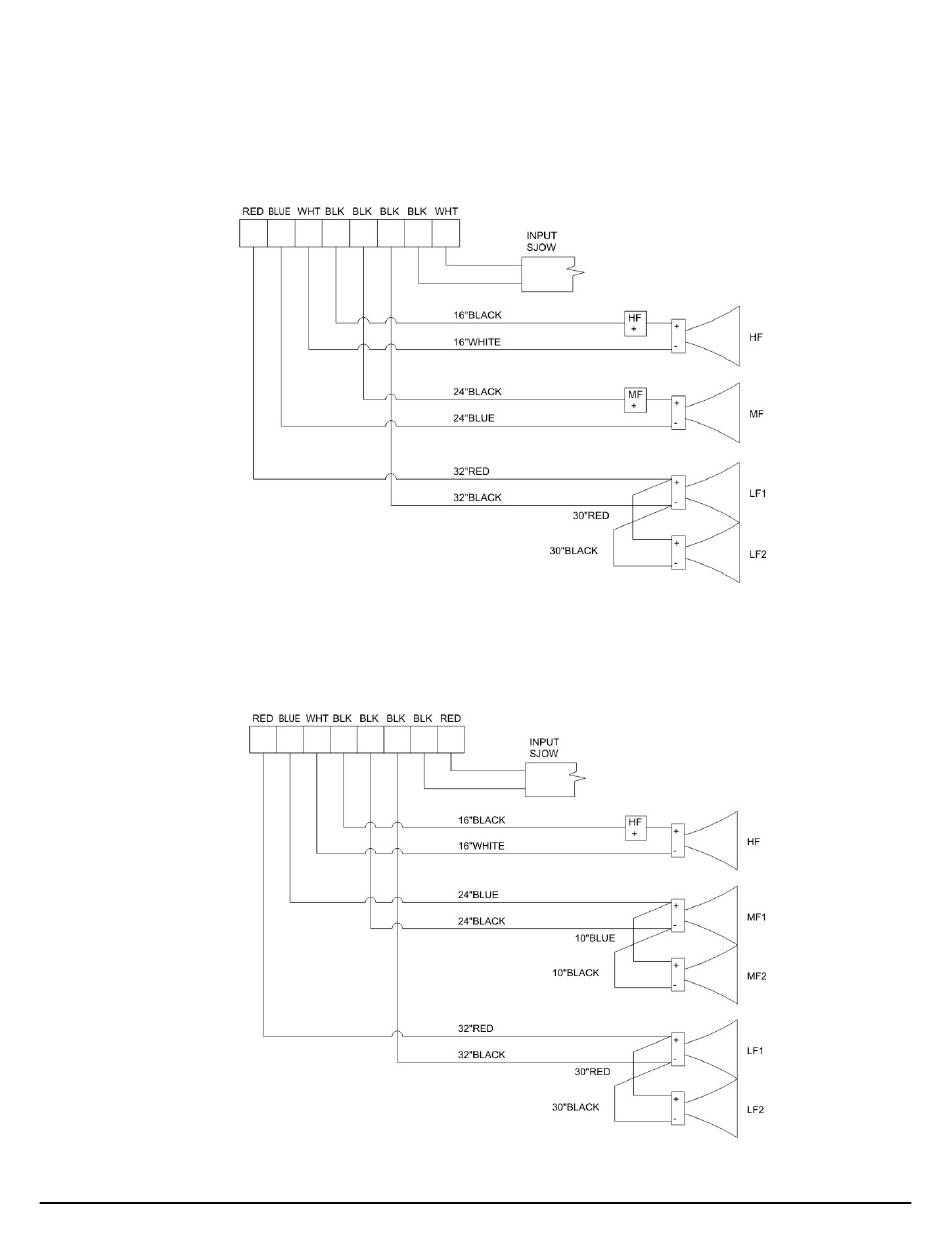

R2 WIRING
Models R2-474Z, R2-694Z, R2-77Z and R2-94Z
FIGURE 6: R2 Wiring (Models R2-474Z, R2-694Z, R2-77Z and R2-94Z)
(Note: The polarity reversal shown for the MF/HF is intentional.)
Model R2-52Z
FIGURE 7: R2-52Z Wiring
(Note: The polarity reversal shown for the HF is intentional.)
R SERIES R2
Installation/Operation Manual
Page 21
