Summary of Contents for Community R.5-MAX

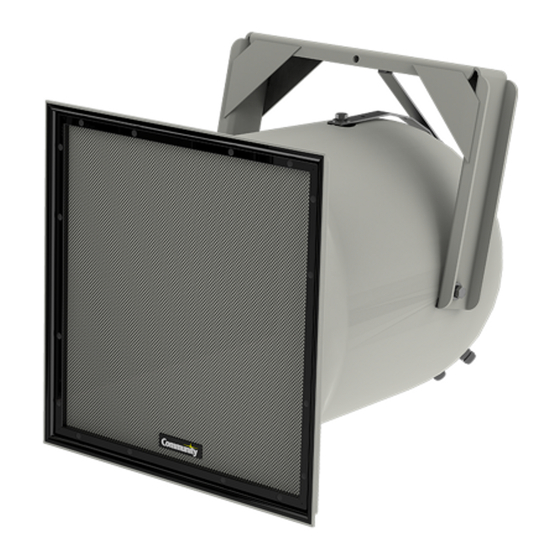

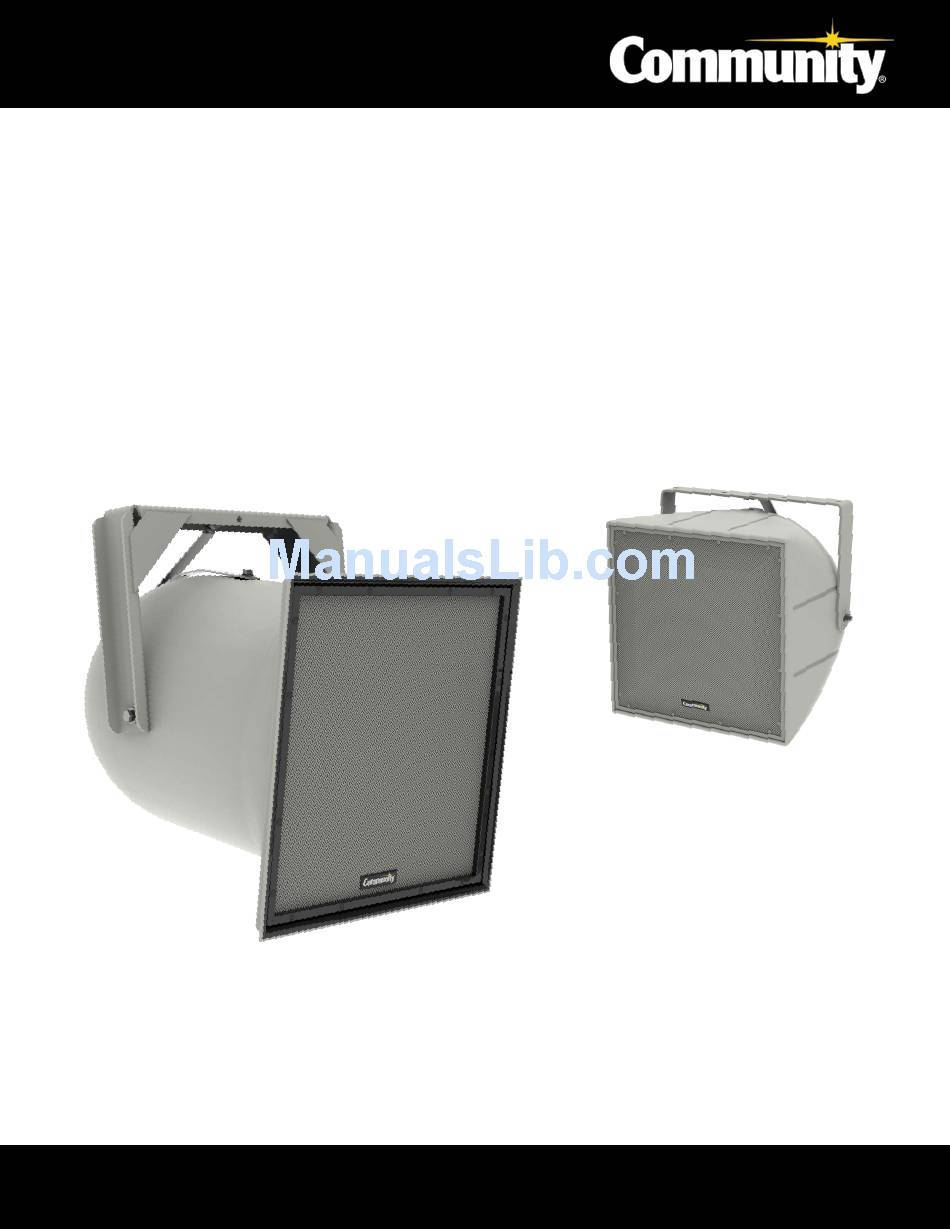

- Page 1 R-Series Loudspeakers With Unparalleled Musicality, Superior Voice Projection and Premium Weather Resistance Installation and Operation Manual Models: R.5-MAX and R2-MAX WEATHER-RESISTANT • R-SERIES...
-
Page 2: Important Safety Instructions
CAUTION: Installation of R-Series loudspeakers should only be performed by trained and qualified personnel. It is strongly recommended that a licensed and certified professional structural engineer approve the mounting. Severe injury and/or loss of life may occur if this product is improperly installed. Page 2 Installation and Operation Manual R.5-MAX, R2-MAX... -
Page 3: Unpacking And Inspection
PHYSICAL FEATURES / GENERAL DESCRIPTION manufactured to be rugged and they are carefully packed The R.5-MAX and R2-MAX are the premier products in the in sturdy cartons. Make sure that the number of cartons R-Series line. They are designed for premium quality music shown on the freight documents have actually been reproduction with very low distortion and high output. -
Page 4: Product Features Identification
PRODUCT FEATURES IDENTIFICATION TYPICAL R.5-MAX FULL-RANGE MODEL Safety Cable Attachment Point: (Utilize empty rigging point. User must supply appropriate fastener and safety cable) Installer to supply hardware for top attachment of strap to yoke Yoke Aiming Strap Grille 3/8"-16 Rigging points 5 Rigging Points (3/8"-16) -
Page 5: Rigging / Suspension And Safety
Bracket spaced away Yoke tight against or supplied by Community shall immediately void all pledges from enclosure enclosure (R.5-MAX) of warranty or surety, related in any way to the safe use of or rubber washer and those parts and materials. -
Page 6: Installation
INSTALLATION MOUNT THE R.5-MAX LOUDSPEAKER BEFORE YOU START q Attach the R.5-MAX loudspeaker to the yoke. See q Read all instructions and gather tools necessary before Figure 2. The mounting point holes are approximately 7/16" starting the installation. Please read all safety instructions (11mm) deep. - Page 7 6° 14° 18° 20° 25° 29.5° 36° 41.5° 47° 50° structure must be supplied by the installer Figure 3. Attach the angle securing strap to the R.5-MAX INSTALL THE R2-MAX q Attach the short flat end of the contour strap to the WARNING: Loudspeakers are heavy.
- Page 8 (25 mm) stainless steel bolt in this hole so that the bolt head Figure 5c. Attach the securing strap to the contour strap is between the contour strap and the enclosure. Secure it with a lock washer and hex nut as shown at right Page 8 Installation and Operation Manual R.5-MAX, R2-MAX...
-
Page 9: Wiring And Electrical Safety
WIRING AND ELECTRICAL SAFETY STANDARD WIRING (R.5-MAX) All standard R-MAX loudspeakers come with attached SJOW rated input cables, 12' (3.6m) in length. The cable Connect as shown in Figure 6. enters the enclosure through a waterproof gland nut. The other end of the cable is un-terminated. Beyond this length, line-loss calculations should be performed when selecting (–) ( Black) -
Page 10: Maintaining Weather Resistance
• If you use any hardware in place of hardware provided with your R-Series loudspeaker, it should also be made of stainless steel. Page 10 Installation and Operation Manual R.5-MAX, R2-MAX... -
Page 11: Specifications
However, due to ongoing technical advances, changes or modifications may have occurred that are not covered in this manual. Visit Community at http://www.communitypro.com for the latest version of this manual and the most recent product information. R.5-MAX, R2-MAX Installation and Operation Manual... - Page 12 7. Free field anechoic sensitivity, calculated using input voltage that would produce 1W at the nominal impedance. 8. Calculated based on power rating and sensitivity, exclusive of power compression. Page 12 Installation and Operation Manual R.5-MAX, R2-MAX...
- Page 13 +6 dB boost at 70 Hz, via a parametric EQ (PEQ) filter, to achieve the LF response shown in the spec sheet’s frequency response graph. R.5-MAX, R2-MAX Installation and Operation Manual...
- Page 14 — High Frequency — Low Frequency 1/6 Octave Smoothing, 1W/1m 1000 1000 10000 10000 1000 10000 1000 10000 Frequency (Hz) Frequency (Hz) Frequency (Hz) Frequency (Hz) Figure 10. R2-64MAX Spec Sheet Frequency Response Graphs Page 14 Installation and Operation Manual R.5-MAX, R2-MAX...
- Page 15 LF boost. However, this will reduce the safe, equalized Maximum Output SPL from an R2-MAX by 6 dB. In the case of the R2-64MAX, the Maximum Output SPL would be reduced from 132dB to 126dB. R.5-MAX, R2-MAX Installation and Operation Manual Page 15...
- Page 16 The LF boost simply serves to “square off” the response knee above the high pass filter. The published R.5-MAX equalization curves contain an optional PEQ filter that adds 6 dB at 120 Hz. (In the Resyn™...
-
Page 17: Technical Drawings
TECHNICAL DRAWINGS TYPICAL R.5-MAX COAXIAL LOUDSPEAKER 8" 16" (406mm) (5) 3/8"-16 (203mm) Threaded Inserts .2" (5mm) 10.2" (259mm) typ 9" (229mm) Center of 9" Gravity (229mm) 16.39" (416mm) Center Line Ø 0.45" (Ø 12mm) 8.2" (208mm) hole x 4 Ø 0.55" (Ø 14mm) Center only 2"... - Page 18 Ø .53" (Ø 13.5mm) typ. 30.75" (781mm) 24.75" (629mm) 12.38" Yoke 17.25" (314mm) (438mm) 15.43" (392mm) 12.38" (314mm) 24.75" (629mm) Center of Gravity Center of Gravity (5) 1/2"-13 Threaded Inserts Rear Sides Front Page 18 Installation and Operation Manual R.5-MAX, R2-MAX...
-
Page 19: Warranty Information
EC STATEMENT OF CONFORMITY This document confirms that the range of products of Community Professional Loudspeakers bearing the CE label meets all of the requirements in the EMC directive 89/336/EEC laid down by the Member States Council for adjustment of legal requirements. - Page 20 R-Series ©2013 Community Professional Loudspeakers Part#: 112928 v:6SEPT2013 Community Professional Loudspeakers 333 East Fifth Street, Chester, PA 19013-4511 USA Phone: (610) 876-3400 • Fax: (610) 874-0190 Page 20 Installation and Operation Manual R.5-MAX, R2-MAX www.communitypro.com...
