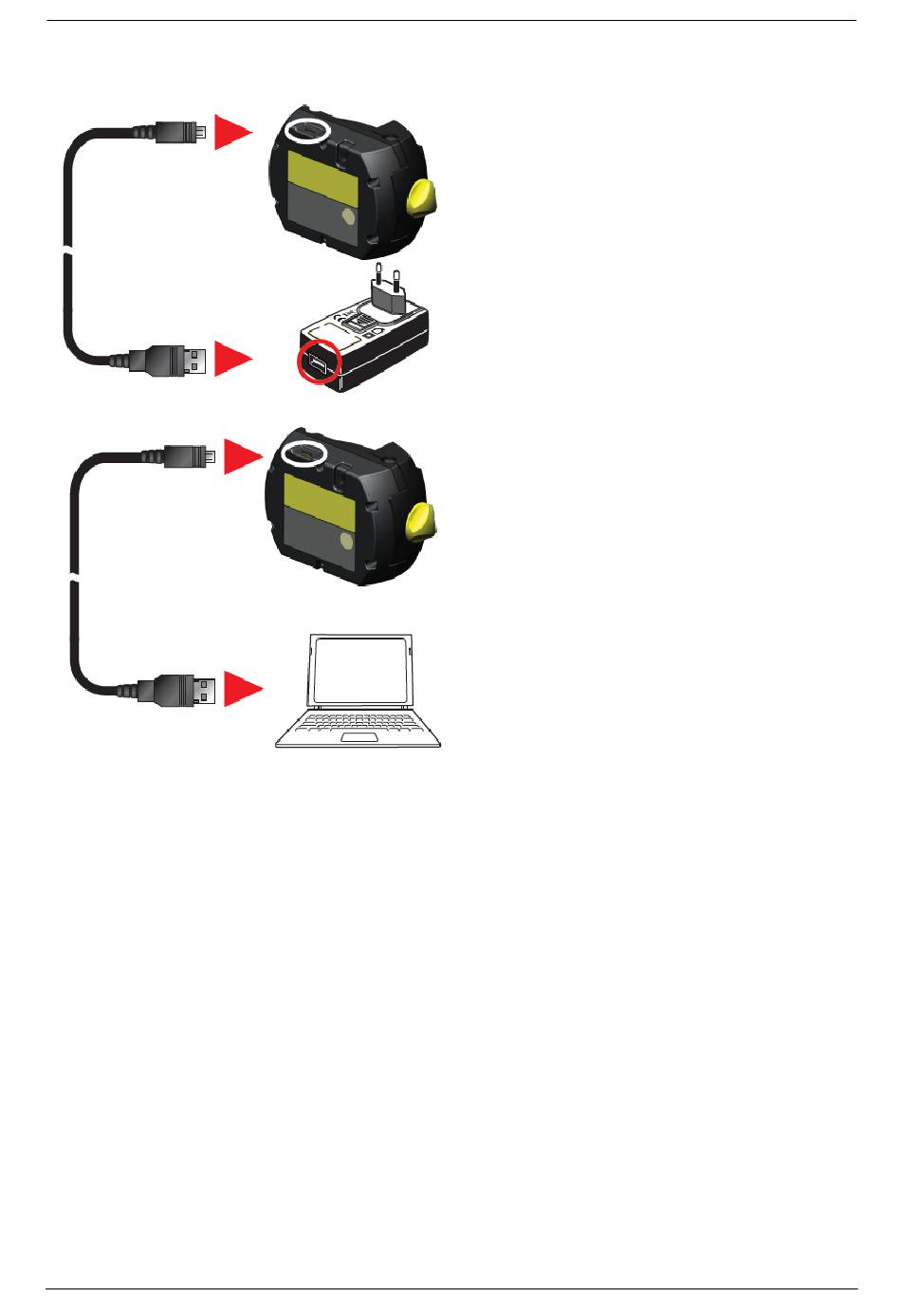

The supplied micro USB is used to connect the charging source to the sensor.
Reflector
The reflector is always mounted on the shaft or solid coupling of the machine to be moved. It
reflects the laser beam back into the position detector as the shafts are rotated. The locking
lever flips into the horizontal position, facing forward, to hold the reflector in place on the
bracket posts. The reflector is adjusted by changing its vertical position and its horizontal
angle (using the thumbscrews) so that the beam is reflected directly back into the sensALIGN
3 sensor.
The reflector must be kept clean. Use the provided lens cleaning cloth or a fine dusting brush
such as that normally used to clean other optical devices.
