NION-Simplex 4010 Configuration Menu
L L L L L earn P earn P earn P earn P earn Panel Devices anel Devices - This selection allows the NION to learn, or self program, all the devices associated with anel Devices anel Devices anel Devices
the Simplex 4010 panel it is connected to. This selection will start a panel learn session and the data display area
will show a progress bar and the number of device types the NION has detected on the panel. When the panel
learn session is complete, a message will appear. Click OK and click the Close button. The Simplex 4010
NION is now configured with the Simplex 4010 devices.
NOTE: The Learn Panel
Devices session is a lengthy
process. Please allow several
minutes for this operation.
NOTE: The NION will not
function properly unless a
Panel Learn session is
executed. If devices or
labels are added or
changed, a Panel Learn
must be performed again.
The Simplex 4010 devices must not have any duplicate device labels. If duplicate device labels are found during a
panel learn session, a message will appear on the Simplex Explorer screen. If any duplicates are found, the
Simplex NION Explorer creates a log file and saves it in the C:\UniNet\PlugIns\Data\ file folder, with a file name
of Simplex4010_node_XXX_duplicates.log (where XXX denotes the NION number). This file will list all dupli-
cate labels and their addresses. All point labels must be unique for proper functionality.
Enter Data Capture Mode Enter Data Capture Mode Enter Data Capture Mode Enter Data Capture Mode Enter Data Capture Mode - This selection changes the data display into a display of panel messages for
troubleshooting purposes. Simplex Explorer gives the option to save this information as a log file when Enter Data
Capture Mode is first selected. This file is written as follows:
Technical Manuals Online! - http://www.tech-man.com
Figure 3-4: Duplicate Device Labels
C:\UniNet\PlugIns\Data\Simplex 4010_node_XXX_data_capture.log
Simplex 4010 NION Installation/Operation Manual Version 2 Document 51998 Rev. A1 03/26/03
firealarmresources.com

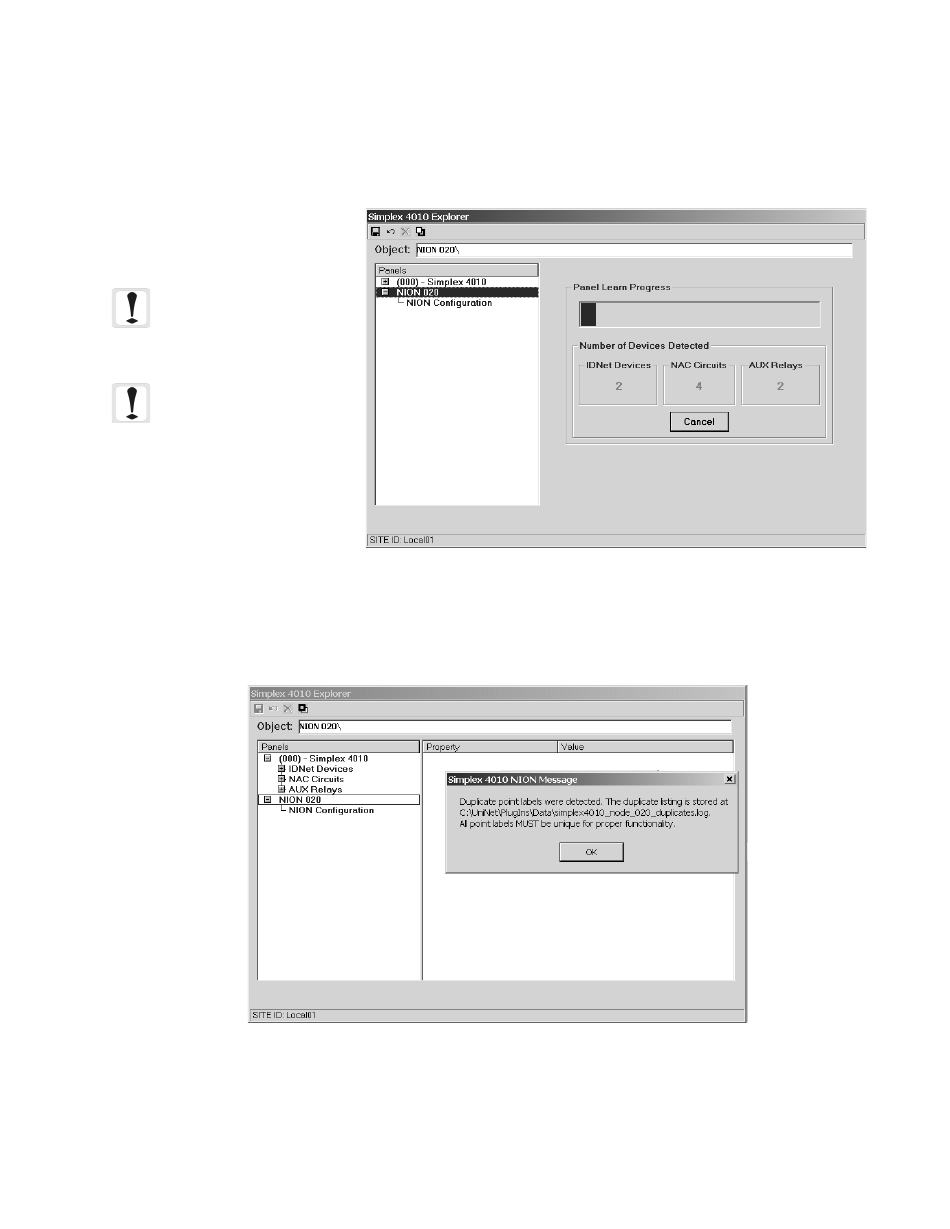

Figure 3-3: Learn Panel Devices Session
