Notifier UniNet 2000 Simplex 4010 NION Installation And Operation Manual page 14

FOXC-PCA and DFXC-PCA Fiber Optic Network Transceivers
The FOXC-PCA allows up to 8db of attenuation per segment in a point to point configuration only.
The DFXC-PCA can operate in either a bus or a ring format. The regenerative properties of the DFXC transceiver
allow runs of up to 12db of attenuation between each node, with up to 64 nodes per segment.
Fiber Optic Transceiver

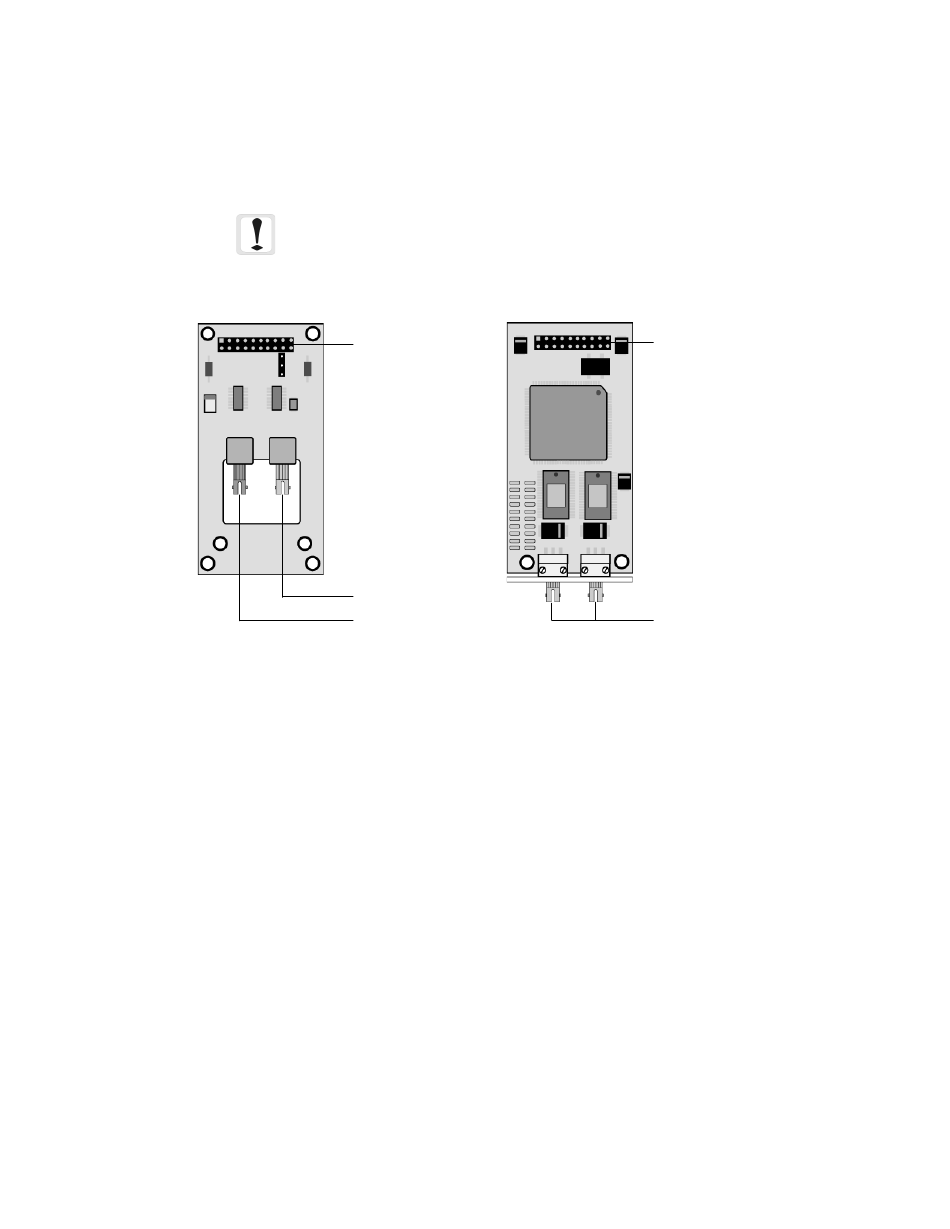

Figure 1-6: FOXC-PCA and DFXC-PCA Fiber Optic Network Transceivers
14
Technical Manuals Online! - http://www.tech-man.com
NOTE: See Section 1.1.3 of the Network Installation
manual for fiber optic cabling requirements for these
transceivers.
FOXC FOXC FOXC FOXC FOXC
Header Connection
ST Style RX Connection
ST Style TX Connection
Simplex 4010 NION Installation/Operation Manual Version 2 Document 51998 Rev. A1 03/26/03
firealarmresources.com
DFXC DFXC DFXC DFXC DFXC
Dual Fiber Optic Transceiver
Header Connection
ST Style Connection
