Notifier UniNet 2000 Simplex 4010 NION Installation And Operation Manual page 13

S7FTXC-PCA (Style-7) Network Transceiver
The S7FTXC-PCA combines two FT-10 interface ports that allow the transceiver to meet Style-7 wiring requirements.
The two ports on the S7FTXC-PCA, when used with true style-7 wiring requirements, create a point-to-point type
network segment allowing up to 8,000 feet between nodes that use the S7FTXC-PCA. The separate FT ports allow
two twisted pair connections so that a cabling fault on one segment will not affect the other.
The S7FTXC-PCA has four diagnostic LEDs that are visible when the board is installed onto a NION.
• Packet - Blinks when a packet is received or transmitted.
• Status - Blinks steadily when no network traffic is present and blinks rapidly when processing.
• P1 ERR and P2 ERR - These LEDs (P1 for Port1, P2 for Port 2) denote error conditions when they blink.
NOTE: The S7FTXC temporarily stops processing when an error occurs. This suppresses noise propagation throughout the network
For more information about Style-7 network configuration refer to the Local Area Server manual 51544.
NOTE: When using the S7FTXC with a NION-232B, relay 2 on the NION-232B (LED D13) will activate
when a wire fault is detected by the S7FTXC. When used with a Simplex 4010 NION LED D2 will light.
Bus Termination
FT Termination
Bus Termination
FT Termination
Local Area Server 1 Local Area Server 1 Local Area Server 1 Local Area Server 1 Local Area Server 1
Style-7 Network with Local Area Servers on One Computer Style-7 Network with Local Area Servers on One Computer Style-7 Network with Local Area Servers on One Computer Style-7 Network with Local Area Servers on One Computer Style-7 Network with Local Area Servers on One Computer
Technical Manuals Online! - http://www.tech-man.com
S7FTXC S7FTXC S7FTXC S7FTXC S7FTXC
Style 7 FT-10 Transceiver
Header Connection
Termination Jumper
( Port 2)
Termination Jumper
(Port 1)
Port 1
Port 2

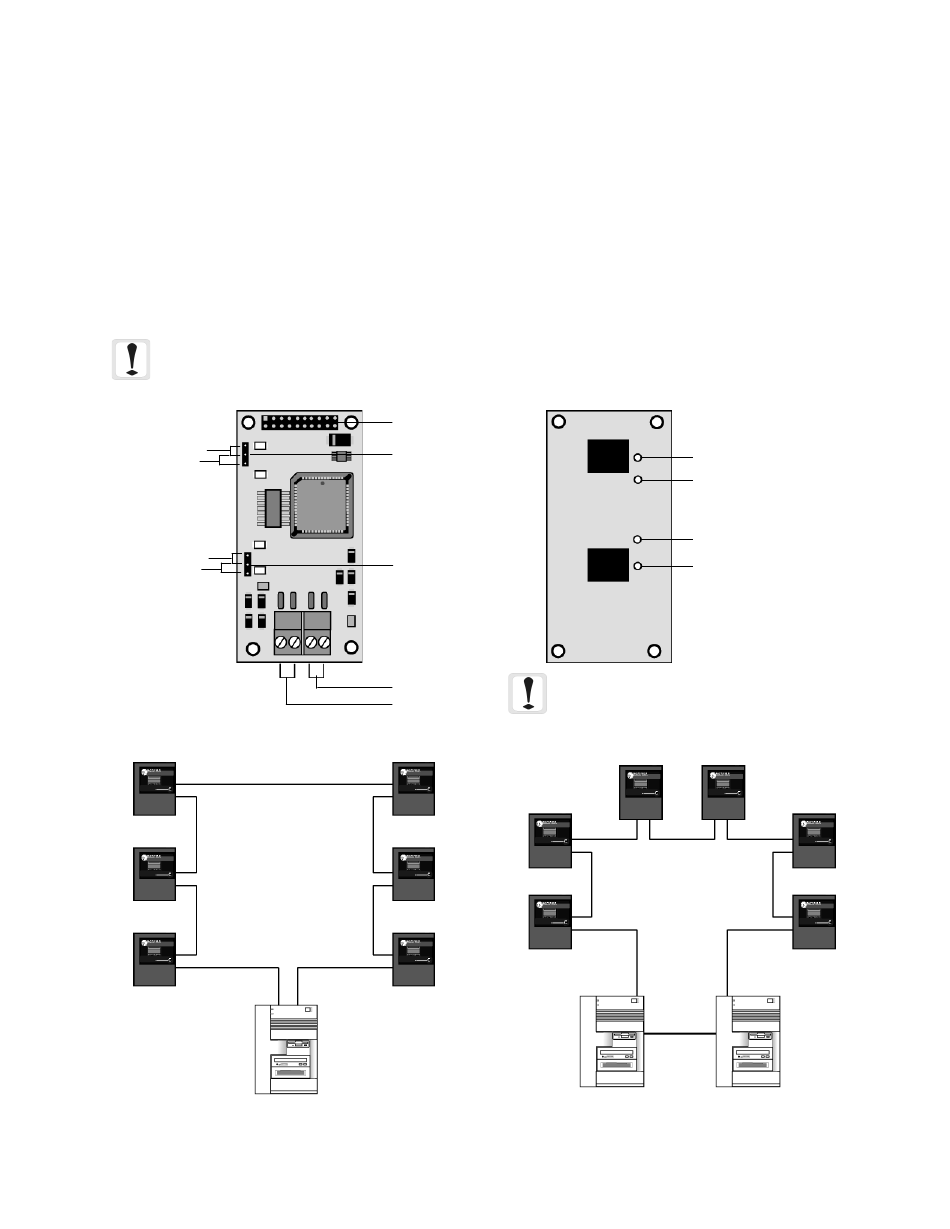

Figure 1-4: S7FTXC-PCA Style 7 Transceiver
Echelon Network Echelon Network Echelon Network Echelon Network Echelon Network
Local Area Server 2 Local Area Server 2
Local Area Server 2 Local Area Server 2 Local Area Server 2
) ) ) ) )
( P r i m a r y ( P r i m a r y ( P r i m a r y ( P r i m a r y ( P r i m a r y
( S e c o n d a r y ) ( S e c o n d a r y ) ( S e c o n d a r y ) ( S e c o n d a r y ) ( S e c o n d a r y )
Figure 1-5: Sample Style-7 Networks
Simplex 4010 NION Installation/Operation Manual Version 2 Document 51998 Rev. A1 03/26/03
firealarmresources.com
Opposite side of S7FTXC
NOTE: See section 1.1.8 of the Network
Installation manual 51539 for more infor-
mation about FT and Bus termination.
Echelon Network Echelon Network Echelon Network Echelon Network Echelon Network
Local Area Server 1 Local Area Server 1 Local Area Server 1 Local Area Server 1 Local Area Server 1
) ) ) ) )
( P r i m a r y ( P r i m a r y
( P r i m a r y ( P r i m a r y ( P r i m a r y
Ethernet Ethernet
Ethernet Ethernet Ethernet
Style-7 Network with Local Area Servers on Separate Computers Style-7 Network with Local Area Servers on Separate Computers Style-7 Network with Local Area Servers on Separate Computers Style-7 Network with Local Area Servers on Separate Computers Style-7 Network with Local Area Servers on Separate Computers
.
Packet LED
Status LED
Port 1 Error LED
Port 2 Error LED
Local Area Server 2 Local Area Server 2 Local Area Server 2
Local Area Server 2 Local Area Server 2
( S e c o n d a r y ) ( S e c o n d a r y )
( S e c o n d a r y ) ( S e c o n d a r y ) ( S e c o n d a r y )
