Configuring The Nion Through Simplex 4010 Explorer - Notifier UniNet 2000 Simplex 4010 NION Installation And Operation Manual

The Simplex 4010 Explorer Main Screen consists of the following:
Update button - Saves configuration changes made with Simplex Explorer to the NION.
Undo button - Cancels any configuration changes made in the plug-in.
Exit button - Closes the Simplex Explorer.
Arrange button - Toggles the Simplex 4010 Explorer window to be always on top or moved to the background
when an event occurs.
Panels tree - Displays the Simplex 4010 NION on the system and the associated Simplex 4010 panel in
expandable\collapsible menus.
Property and Value data display - The right half of the form displays the Property and Value of the device high-
lighted in the Panels tree.
Object window - Displays the path to the device currently highlighted in the Panels tree.
Arrange Button Arrange Button Arrange Button
Arrange Button Arrange Button
Exit Button Exit Button Exit Button Exit Button Exit Button
Undo Button Undo Button Undo Button
Undo Button Undo Button
Update Button Update Button Update Button Update Button Update Button
Object Window Object Window Object Window Object Window Object Window
P P P P P anels T anels T anels Tree anels T anels T ree ree ree ree
Data Display Area Data Display Area
Data Display Area Data Display Area Data Display Area

3.2.3 Configuring the NION through Simplex 4010 Explorer

The Simplex 4010 NION is easily configured to communicate with a Simplex 4010 FACP via the Simplex 4010
Explorer. Only an operator with administrator privileges can access configuration tools. To configure the NION
once Simplex Explorer is open, right-click on the NION item in the Panels tree to display a pop-up menu. The
menu items in this menu are used to configure the Simplex 4010 NION.
20
Technical Manuals Online! - http://www.tech-man.com

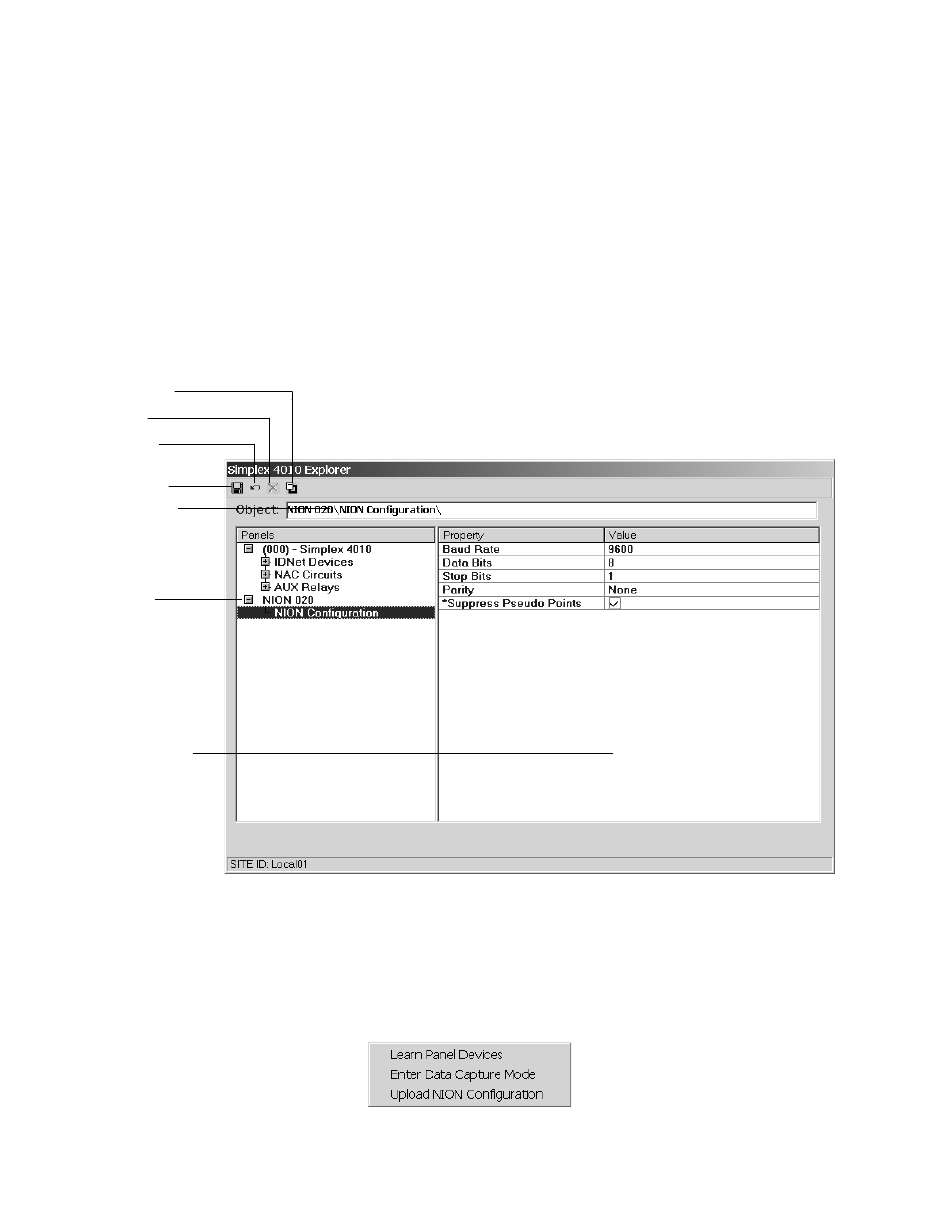

Figure 3-1: Simplex 4010 Explorer
Figure 3-2: NION-Simplex 4010 Configuration Menu
Simplex 4010 NION Installation/Operation Manual Version 2 Document 51998 Rev. A1 03/26/03
