Meter Wiring Of Sensor; Electrical Connection Of The Meter - COMAC CAL FLOW 38Imp Batch Manual

(Standardly for inductive sensor is made in COMAC CAL factory)
Sensor cable connection using pulse output from flow meter sensor (not for inductive sensor):

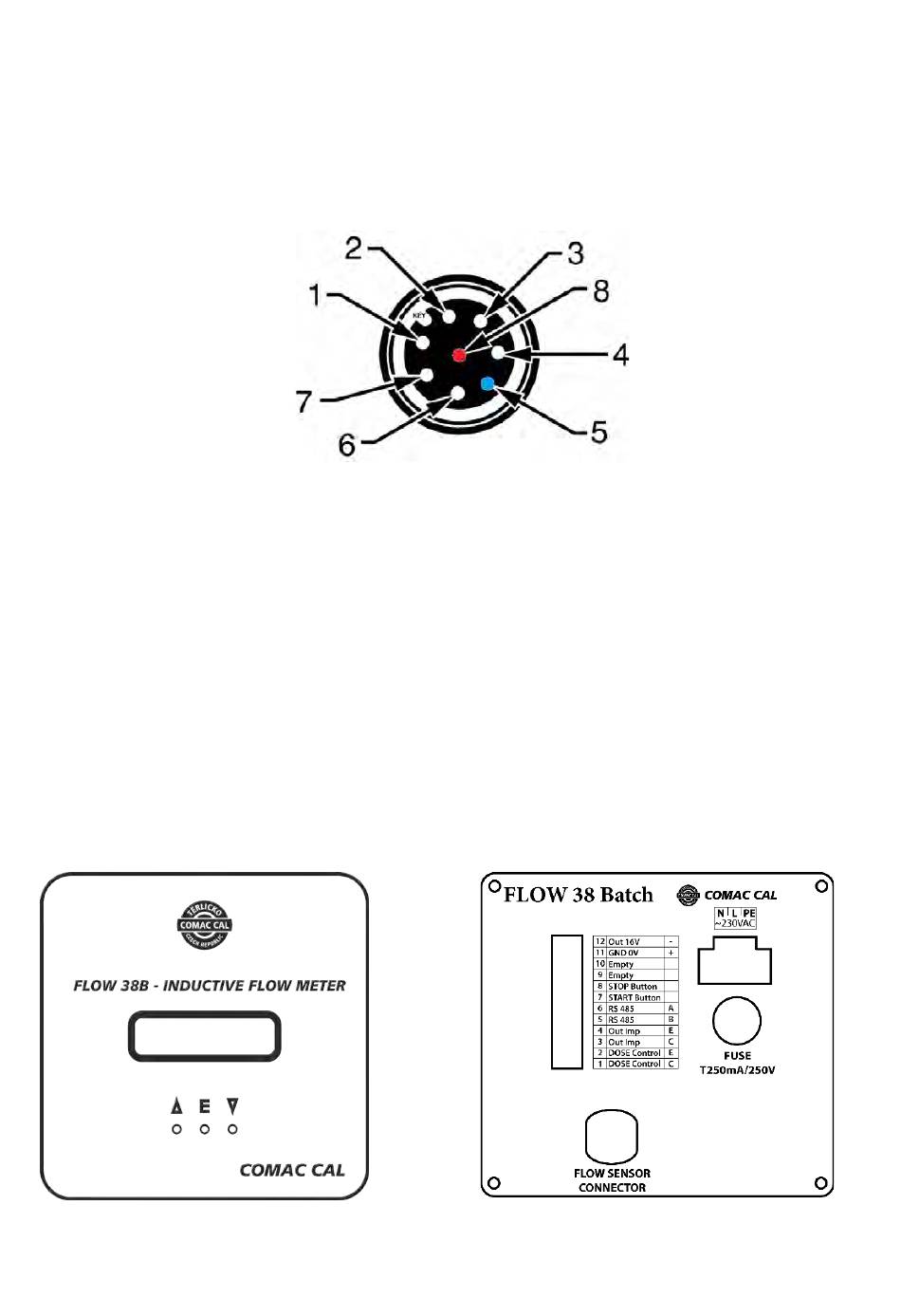

The sensor is connected via M12, 8-pin connector against the socket on the cover's body.
Pin5 GND
Pin8 pulse input
Input is designed for connection to any meter with a voltage free or transistor output interface.
Input includes internal pullup resistor 4k7. Voltage for pullup resistor is adjustable 5÷16V (default 5V)
Coupling is capacitive.
Evaluating unit is consists of two units:
Front panel with display unit
Technical and installation
manual FLOW 38 Batch (impulse)

Meter wiring of sensor

Electrical connection of the meter

(It is connected in the factory by default)
Back panel with outputs, inputs and power
Page 7 (total 26) COMAC CAL s.r.o.
