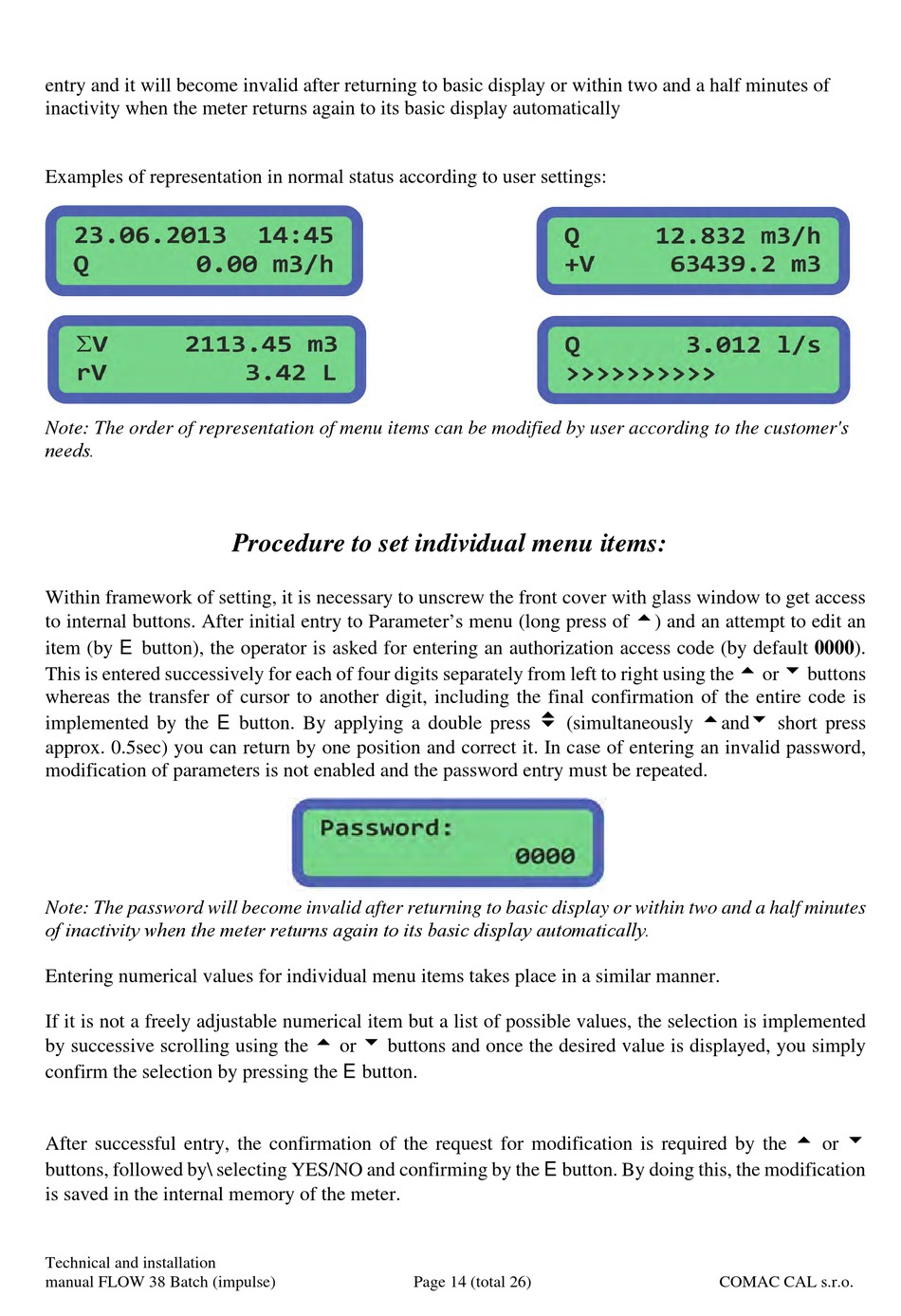

Procedure To Set Individual Menu Items - COMAC CAL FLOW 38Imp Batch Manual

entry and it will become invalid after returning to basic display or within two and a half minutes of
inactivity when the meter returns again to its basic display automatically
Examples of representation in normal status according to user settings:
Note: The order of representation of menu items can be modified by user according to the customer's
needs.

Procedure to set individual menu items:

Within framework of setting, it is necessary to unscrew the front cover with glass window to get access
to internal buttons. After initial entry to Parameter's menu (long press of ) and an attempt to edit an
item (by E button), the operator is asked for entering an authorization access code (by default 0000).
This is entered successively for each of four digits separately from left to right using the  or  buttons
whereas the transfer of cursor to another digit, including the final confirmation of the entire code is
implemented by the E button. By applying a double press  (simultaneously and short press
approx. 0.5sec) you can return by one position and correct it. In case of entering an invalid password,
modification of parameters is not enabled and the password entry must be repeated.
Note: The password will become invalid after returning to basic display or within two and a half minutes
of inactivity when the meter returns again to its basic display automatically.
Entering numerical values for individual menu items takes place in a similar manner.
If it is not a freely adjustable numerical item but a list of possible values, the selection is implemented
by successive scrolling using the  or  buttons and once the desired value is displayed, you simply
confirm the selection by pressing the E button.
After successful entry, the confirmation of the request for modification is required by the  or 
buttons, followed by\ selecting YES/NO and confirming by the E button. By doing this, the modification
is saved in the internal memory of the meter.
Technical and installation
manual FLOW 38 Batch (impulse) Page 14 (total 26) COMAC CAL s.r.o.
