Installation of the meter's detached evaluation unit
Wall mounting:

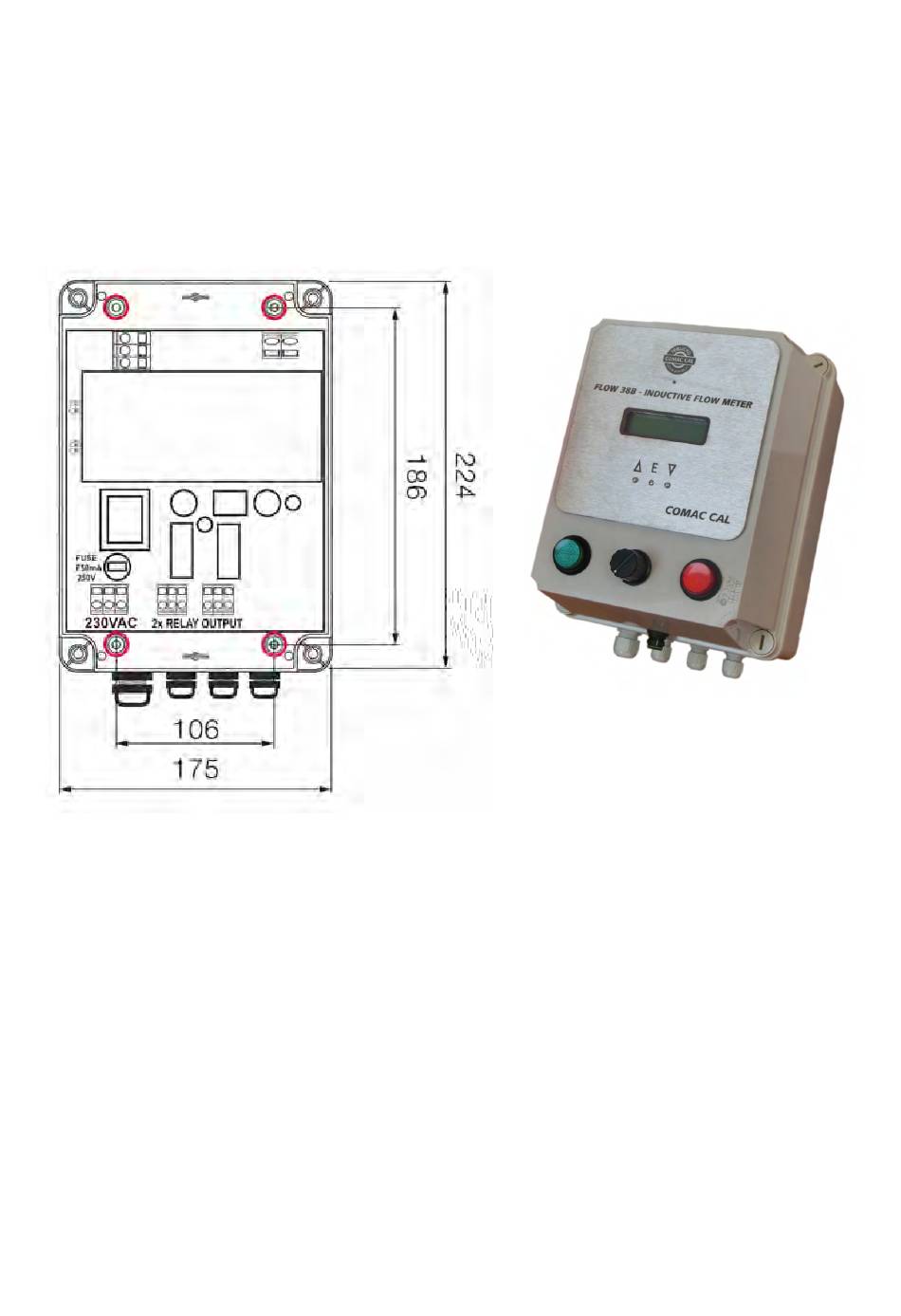

For mounting on the wall are at the device indicated four mounting points forming a rectangle witch
dimension 106x186mm (total box height is 200 mm). These points then drill and place with the dowels,
screws, install he unit to the wall and do the wiring. After completion, close the unit and tighten all
screw.
Total depth of box is 200mm!!!
Technical and installation
manual FLOW 38 Batch (impulse)
