Basic indications in idle state can be influenced and modified in such a manner that the data needed by
the user can be found on the first two lines on the display. Whereas the order of the other items is retained.
If you want to change a setting, press the E and or buttons and select the data on the line which is
then confirmed by the E button. The customer can select from these indications, namely both on the first
and the second lines:
Technical and installation
manual FLOW 38 Batch (impulse)

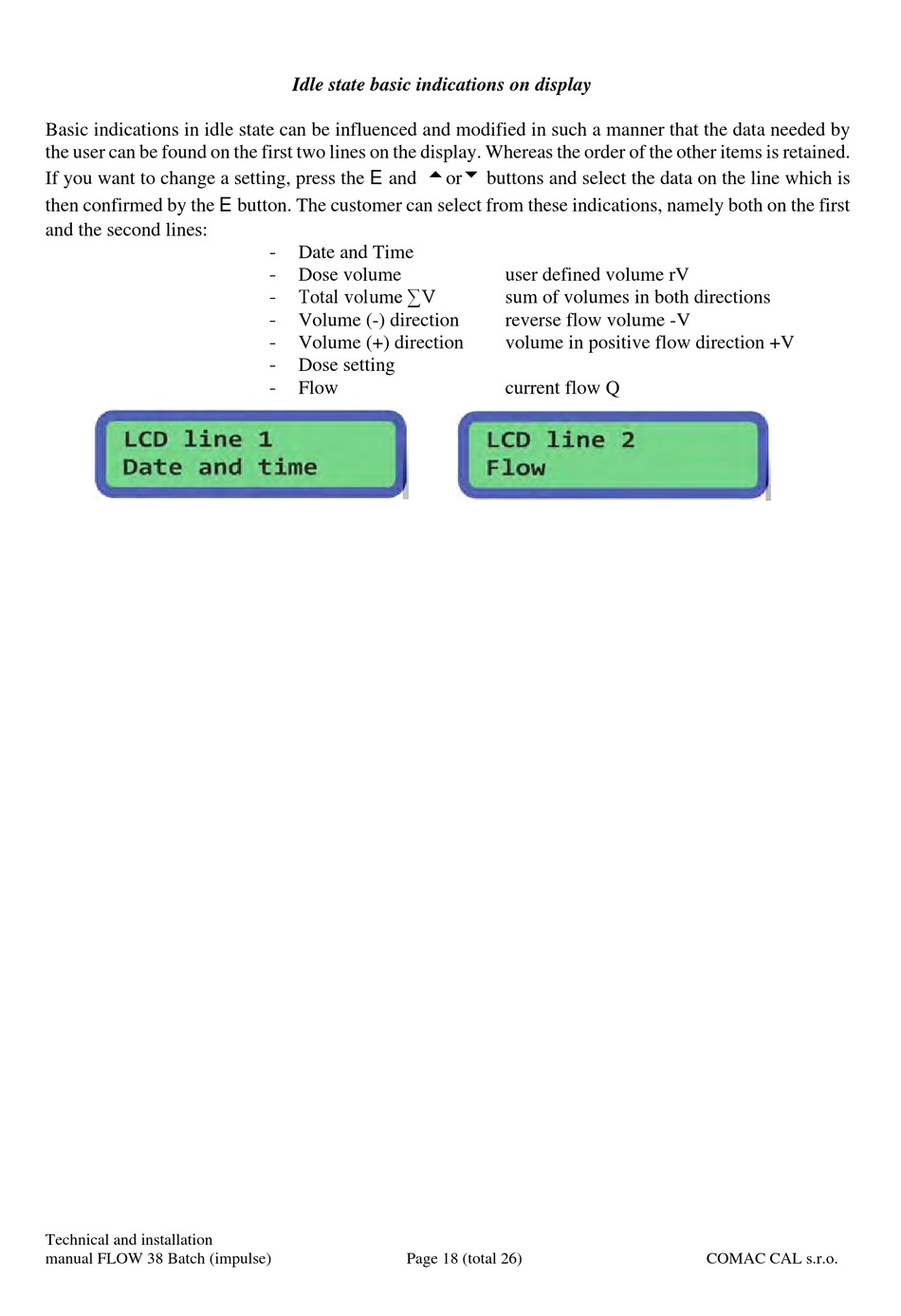

Idle state basic indications on display

-
Date and Time
-
Dose volume
Total volume ∑V
-
-
Volume (-) direction
-
Volume (+) direction
-
Dose setting
-
Flow
Page 18 (total 26)
user defined volume rV
sum of volumes in both directions
reverse flow volume -V
volume in positive flow direction +V
current flow Q
