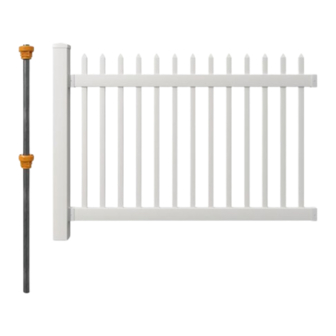

Vinyl picket fence with post and no-dig steel pipe anchor kit
Hide thumbs Also See for BL19101:

Advertisement

Quick Links

Download this manual
ASSEMBLY INSTRUCTIONS
NANTUCKET
VINYL PICKET FENCE
WITH POST AND
NO-DIG STEEL PIPE
ANCHOR KIT
Approximate assembly time
Want to see a video on how to
assemble this product?
WWW.WAMBAMFENCE.COM
WWW.WAMBAMFENCE.COM
(4'H X 6'W)
60 MIN
Scan the QR code
ASSEMBLY
INSTRUCTIONS
BL19101
BL19101
VER. 111220
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the BL19101 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for WamBam BL19101

Summary of Contents for WamBam BL19101

  • Page 1 BL19101 ASSEMBLY INSTRUCTIONS NANTUCKET ASSEMBLY INSTRUCTIONS VINYL PICKET FENCE BL19101 WITH POST AND NO-DIG STEEL PIPE ANCHOR KIT (4’H X 6’W) 60 MIN Approximate assembly time Want to see a video on how to assemble this product? Scan the QR code WWW.WAMBAMFENCE.COM...
  • Page 2 BL19101 ASSEMBLY INSTRUCTIONS GENERAL IMPORTANT INFORMATION Check the inside of the larger pieces in your box for other materials packed inside. When assembling components, place on a non-abrasive surface (i.e. shipping box) to avoid scratching. We recommend an area approximately 5’x 8’ for unobstructed assembling.
  • Page 3 BL19101 ASSEMBLY INSTRUCTIONS TIPS It is essential to carefully plan & measure your fence. Once the pipe anchors are driven into the ground, they are extremely difficult to move. After you install your first panel and are familiar with the process, you can opt to temporarily remove your fence panel and continue to drive all of the pipe anchors into the ground.
  • Page 4 BL19101 ASSEMBLY INSTRUCTIONS AVOID THESE PITFALLS! HAVE YOU CONTACTED You must call your local utilities before you start installing your fence to avoid puncturing any unseen underground YOUR LOCAL UTILITIES? utilities, especially electrical or gas lines. Fortunately, this is made easy for you.
  • Page 5 BL19101 ASSEMBLY INSTRUCTIONS LAY OUT MATERIALS STEP 1: Post Cap (1) Post (1) 4” x 4” x 53" Bracket (4) Top Rail (1) Picket (13) 1½” x 3½” x 67¾" ⅞” x 1½” x 44¼" 1” Self-Drilling Stainless Bottom Rail (1)
  • Page 6 BL19101 ASSEMBLY INSTRUCTIONS INSTALL PIPE ANCHORS AND POSTS STEP 2: STEP 2.1 Note: Try and drive the pipe anchor as level After establishing your fence as possible. Check level about every 12”. After lines with string and stakes, drive about 18” the trajectory of the pipe anchor is...

  • Page 7: Install Rails

    BL19101 ASSEMBLY INSTRUCTIONS STEP 2.4 STEP 2.5 Slide posts down over donuts. Adjust bottom and top donuts to compensate for a crooked pipe Note: Ground can be dug out about 3” to anchor. 4” to allow post bottoms to sit below the ground if necessary.
  • Page 8 BL19101 ASSEMBLY INSTRUCTIONS STEP 3.3 STEP 3.4 Temporarily remove bottom rail, and install bracket using (4) 1” self-drilling stainless steel screws. Use a level on the top of the bottom rail to determine height of opposing bracket, and mark for installation.
  • Page 9 BL19101 ASSEMBLY INSTRUCTIONS INSTALL PICKETS AND POST CAPS STEP 4: STEP 4.1 Install pickets by inserting them through top rail and locking them into he bottom rail. Note: Pickets cannot be removed once inserted. STEP 4.2 Trim down tops of the posts if necessary, and install post caps (A).
  • Page 10 BL19101 ASSEMBLY INSTRUCTIONS 6935 Reames Rd. Ste. K. Charlotte, NC 28216 hmmm@wambamfence.com 704-892-5222 877-234-6196 WWW.WAMBAMFENCE.COM WWW.WAMBAMFENCE.COM...
