Summary of Contents for WamBam Yard & Pool Vinyl Gate

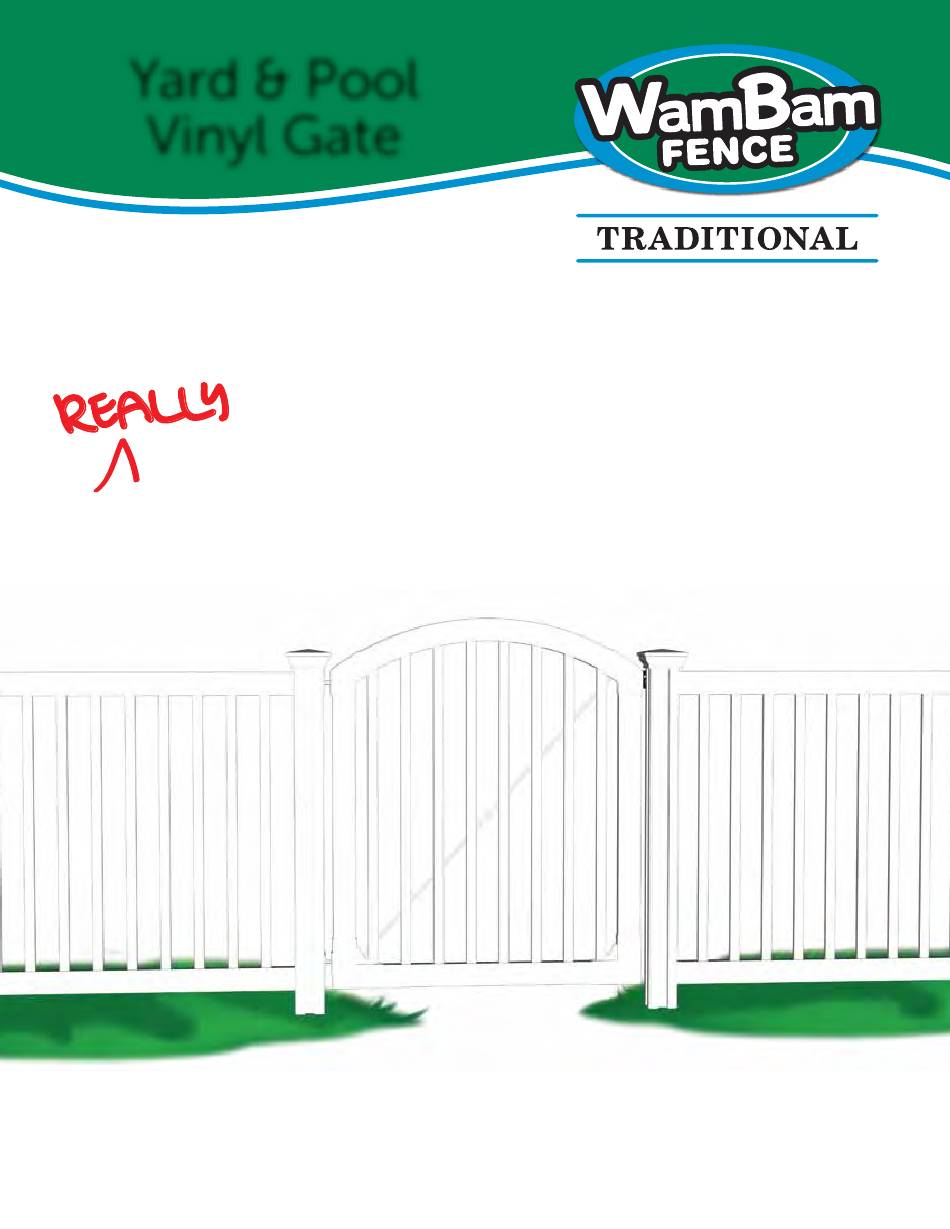

- Page 1 Yard & Pool Vinyl Gate Important stuff to know about installing your WamBam gate. 1-877-778-5733 www.wambamfence.com Ver 1, May 2013...
- Page 2 Yard & Pool Vinyl Gate Reality Check 1 - Read Over Fence Instructions First Your gate and fence will work better together as an integrated solution if you rst take the time to read and understand your fence instructions. 2 - Do a Dry Run First on the Gate Frame Only (not pickets or boards) Please do not glue or screw your gate frame together until you...
- Page 3 Yard & Pool Vinyl Gate 4 - Ideally, Do Not Hang Your Gate System Off a Single Non-Supported Post. Your gate will perform better and last longer if your hinge post is connected to a panel of fence which is connected to another post.
- Page 4 Yard & Pool Vinyl Gate Box Contents .050in. wall .090in. wall thickness thickness Each Gate Box Includes: • Top Rail (1) • Gate Hinges (2) • Pickets (8) • Arch Brackets (2) • Gate Latch (1) • Vertical Stiles (2) •...
- Page 5 Yard & Pool Vinyl Gate PRODUCT OVERVIEW Gate Assembly Gate Installation 3.56in. 1.5in. 58.84in. 52in. 56.84in. 41.5in. 22in. Ground 7.75in. 2in. 3.5in. Concrete Footing 20in. 50in. 48in. 36in. 54.5in. Posts Sold Separately 1.5in. 1.5in. 3.5in. 10in. 1.5in. 3.5in. 3.5in. 1.5in. 3.5in.
- Page 6 Yard & Pool Vinyl Gate Detailed Installation Instructions STEP 1 Assemble the Gate Frame Bottom & Sides Handle with care: vinyl weld glue takes approximately five minutes to cure. Completely assembled gate shown A - Run bead of vinyl weld continously around the inside of the gate bracket Did you do a dry run of assembly first? Please read page 1 of instructions.
- Page 7 Yard & Pool Vinyl Gate Insert Pickets & Assemble STEP 2 the Gate Frame Top Did you do a dry run of assembly first? Please read page 1 of instructions. A - Run bead of vinyl weld continously around B - Insert the top rail until it bottoms out inside the inside of the gate bracket arch bracket C - Insert the top rail until it bottoms out inside...
- Page 8 Yard & Pool Vinyl Gate Screw Gate Frame/Brackets STEP 3 A - Screw into brackets as necessary For more information, contact us at 1 877-778-5733.
- Page 9 Yard & Pool Vinyl Gate Fasten Gate Hinges STEP 4 & Gate Latch For swimming and other child safety gates, most safety standards specify: a) Your fence height needs to be between 4’ and 6’ high minimum b) Your gate needs to open outwards away from the pool c) Latch releasing mechanism to be minimum 54”...
- Page 10 Yard & Pool Vinyl Gate Assemble & Fasten STEP 5 Gate Brace Gate Brace Parts .25” x .75” Hex Bolts .25” Lock Washers .25” Nuts 1.25” (#10) Screws B - Ensure that gate is square, then screw A - Assemble gate bace bracing into place.
- Page 11 Yard & Pool Vinyl Gate Position, Adjust & Align Gate/ STEP 6 Secure Hinges to Posts A - Use temporary spacers or blocks to rest the gate on during alignment and installation Please try to line up your screws as per this drawing.
- Page 12 Yard & Pool Vinyl Gate Level Gate & Adjust Hinges STEP 7 LEVEL A - Fasten gate hinges accordingly B - Check for level, fit and function to latching post Adjust the spring tension in gates as necessary. Use steel insert pin. C - Hinges can be adjusted moderately Latch is designed for left and right hand applications.
- Page 13 Yard & Pool Vinyl Gate Align & Install Latch STEP 8 A - Align and fasten the gate latch catch to fit and function with the gate finger. Congratulations! You did it! Go grab a beverage of your choice, admire your handy work, and show us what you got by entering our annual photo/video contests! For more information, contact us at 1 877-778-5733.
