WamBam Nantucket Vinyl Picket Quick Start Manual

WamBam Nantucket Vinyl Picket Fence w/Post
and No-Dig Steel Pipe Anchor Kit (4'H x 6' W)
TIPS
1
. Careful planning & measuring of your fence is essential. Moving pipes once driven into ground is extremely di cult.
2
. After you install your rst panel and you have gone thru the learning curve, you can opt to temporarily remove your
fence panel and posts and continue driving all your pipe. This will enable you to work with an unobstructed string line.
3
. When cutting PVC use a ne-toothed metal or wood blade.
4
. For easier spacing of pipe anchors, you can optionally use a piece of 1x4 wood lumber cut at 70 3/8" for step 2.
2
Use a wood spacing guide (not included) cut to 70 3/8" to
help identify the location of your next pipe anchor.
5
. Once your corner and end posts are set you can use your string line to adjust your top donuts into alignment for a
straight fence line (Figure A). Then use a level to plumb the remaining bottom donuts to ensure each post is straight
and level to the connecting fence panel (Figure B).
Figure A
(View From Top)
Adjust donuts to the string line.
Line Posts
End Post
6
. Most yards are relatively level and will allow for a fairly simple installation.
If your yard is steeply pictched or is very uneven you may need to stair step your panels as illustrated below.
Post heights can be trimmed down as necessary.
WARNING!
If your yard has a severe
slope or elevation change
greater than approximately
7" to 8" over one panel of
fence, you will not be able
to install this fence. Your
post will not be long
enough to accommodate.
Figure B
(View From Front)
String Line
Corner Post
Ground
Please note the height of post in regards to the top of the panel versus a level application.
The bottom of the posts would also sit approximately ush to the top of the ground versus
being buried into the ground 1"to 3".
4
WamBam Nantucket Vinyl Picket Fence w/Post
and No-Dig Steel Pipe Anchor Kit (4'H x 6' W)

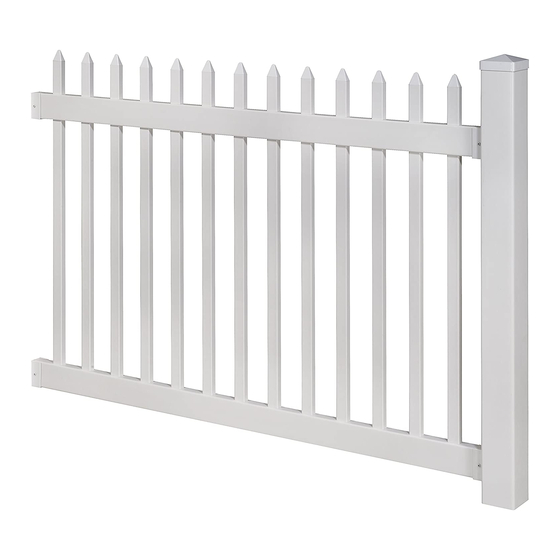

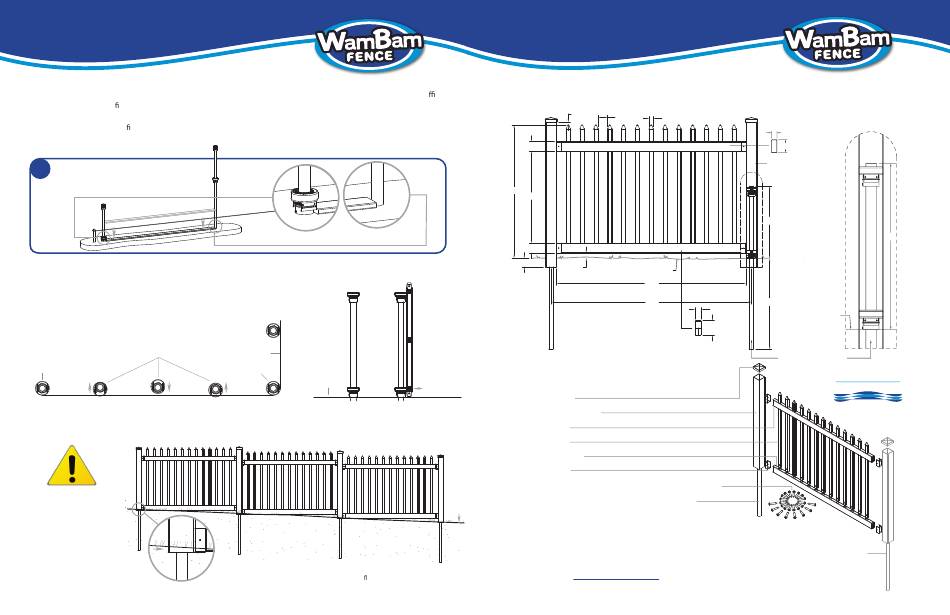

PRODUCT OVERVIEW
1 in
3.5 in
48 in
33 in
3.5 in
3 to 4 in
2 in
BOX CONTENTS
Each Fence Panel Box Includes:
Adjust bottom
donut into level.
• Post Cap (1)
• 4"x4" Vinyl Post (1)
• Top Rail (1)
• Pickets (13)
• Bottom Rail (1)
• Brackets (4)
• #10 x 1in. Stainless Steel Screws (24) For Brackets
• Steel Pipe Anchor w/Gears and Donuts (1)
Ground
Sold Separately:
• 4"x4" Finishing Post w/Cap and No-Dig Steel Pipe Anchor Kit
Please visit www.wambamfence.com or call us at 1-877-778-5733 for answers to your other questions.
We are eager to help you succeed in your project. Thanks for choosing WamBam and all the best with your project.
This fence can easily be trimmed down in width to accomodate shorter applications.
3.46 in
1.5 in
1.5 in.
3.5 in.
4" x 4" Post
26 in
Ground
68 in
72 in
32.5 in
1.5 in
3.5 in
.090 in. Wall Thickness
1 5/8" Galvanized Steel Pipe
4"x4" Finishing Post w/Cap and No-Dig Steel Pipe Anchor Kit Sold Separately (see note on left)
1
V-3.1
Pipe Anchor Detail
26 in.
Ground
