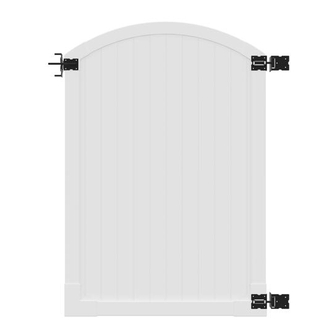

- Page 1 VG26100 ASSEMBLY INSTRUCTIONS STEADY ASSEMBLY INSTRUCTIONS FREDDY VG26100 VINYL GATE (6 ’H X 4’W) 60 MIN Approximate assembly time Want to see a video on how to assemble this product? Scan the QR code WWW.WAMBAMFENCE.COM VER. 061621 WWW.WAMBAMFENCE.COM...
- Page 2 VG26100 ASSEMBLY INSTRUCTIONS GENERAL IMPORTANT INFORMATION Check the inside of the larger pieces in your box for other materials packed inside. When assembling components, place on a non-abrasive surface (i.e. shipping box) to avoid scratching. We recommend an area approximately 5’x 8’ for unobstructed assembling.
- Page 3 VG26100 ASSEMBLY INSTRUCTIONS INFORMATION GENERAL 1. Read over fence instructions first. Your gate and fence will work better together if you first take the time to read and understand your fence. 2. Pre-assemble the gate frame. Please do not screw the gate frame together until you have temporarily assembled the gate frame.
- Page 4 VG26100 ASSEMBLY INSTRUCTIONS DETAILED PRODUCT DIMENSIONS AND SPECIFICATIONS 48in. 3.5in. 11.75in. 73.5in. 70in. 72in. 62.7in. 50.45in. 36in. 2in. 3in. 7.8in. 3.8in. Ground 7.8in. 32.4in. 7. 8 in. 50in. 48in. 54in. 1.5in. 1.5in. WamBam Anchor 3.5in. (Large) 1.5in. 3.5in. 1.5in. 3.5in.
- Page 5 VG26100 ASSEMBLY INSTRUCTIONS LAY OUT MATERIALS STEP 1: Hinge (2) Corner Gate Brace w/ Arch Metal Post Fasteners (1) Bracket (2) Bracket (2) Stabilizer (1) Latch Catch (1) Top Rail (1) Bottom Rail (1) Gate Jig (1) Latch Finger (1) 1½”...
- Page 6 VG26100 ASSEMBLY INSTRUCTIONS INSTALL GATE JIG, POST ANCHORS, AND POSTS STEP 2: STEP 2.1 STEP 2.2 Identify the location of your gate. Dig a trench Identify the location of the Metal Post 60” long x 6” wide x 5½” deep.
- Page 7 VG26100 ASSEMBLY INSTRUCTIONS STEP 2.7 Make sure to fasten the fence panels before attaching the gate. ASSEMBLE THE GATE FRAME BOTTOM AND SIDES STEP 3: STEP 3.1 Insert the Bottom Rail until it bottoms out inside the Corner Bracket (A).
- Page 8 VG26100 ASSEMBLY INSTRUCTIONS INSERT BOARDS STEP 4: STEP 4.1 STEP 4.2 Insert the tongue of the Privacy Board 1 Insert Privacy Boards 2 (J), 3 (K), and 4 tightly into the vertical stile. Continue sliding until they bottom out inside the bottom rail.
- Page 9 VG26100 ASSEMBLY INSTRUCTIONS FASTEN GATE BRACKETS STEP 6: STEP 6.2 STEP 6.1 To ensure your gate is square, the corner to- Fasten together using (12) 11/4” White corner measurements must be the same, and Self-Drilling Stainless Steel Screws (P). the width of the gate should be 48”.
- Page 10 VG26100 ASSEMBLY INSTRUCTIONS ASSEMBLE AND FASTEN GATE BRACE STEP 8: STEP 8.1 Assemble the Gate Brace by sliding the larger square tube over the smaller square tube. Align the holes and install by using the included hardware. STEP 8.2 Double check that the gate is square...
- Page 11 VG26100 ASSEMBLY INSTRUCTIONS ALIGN GATE AND SECURE HINGES TO POST STEP 9: STEP 9.1 Align the gate to the horizontal fence rails. Note: Both the fence & gate hori- zontal rail spacing can be adjusted to lower heights. STEP 9.2A...
- Page 12 VG26100 ASSEMBLY INSTRUCTIONS STEP 9.2B How to position the screws on the post side of the hinge: Using a ⅛” drill bit, pre-drill the holes for the hinge screws as illustrated. Angle your drill slightly as illustrated. Note: Swing the gate open and pre-drill four more holes for the hinge screws as illustrated.
- Page 13 VG26100 ASSEMBLY INSTRUCTIONS LEVEL GATE AND ADJUST HINGES STEP 10: STEP 10.1 STEP 10.2 Using a level, make sure that the gate fits and The hinges can be adjusted moderately to functions with its latching post. bring the gate into level alignment with post.
- Page 14 VG26100 ASSEMBLY INSTRUCTIONS INSTALL LATCH CATCH STEP 11: STEP 11.1 Align and fasten the Latch Catch to fit and function with the gate finger using (6) total 2” black self-drilling stainless steel screws. Congratulations! You did it! Go grab a beverage of your choice, admire your handiwork, and show us what you got by entering our annual photo contest! WWW.WAMBAMFENCE.COM...
- Page 15 VG26100 ASSEMBLY INSTRUCTIONS INSTALL OVER A ALTERNATIVE APPLICATION: SIDEWALK OR PATH STEP 1.1 Option 1: If the sidewalk is less than 52”, use the gate jig as a temporary spacer. Proceed installing the panels according to the fence’s install guide.
- Page 16 VG26100 ASSEMBLY INSTRUCTIONS 6935 Reames Rd. Ste. K. Charlotte, NC 28216 hmmm@wambamfence.com 704-892-5222 877-778-5733 WWW.WAMBAMFENCE.COM WWW.WAMBAMFENCE.COM...
