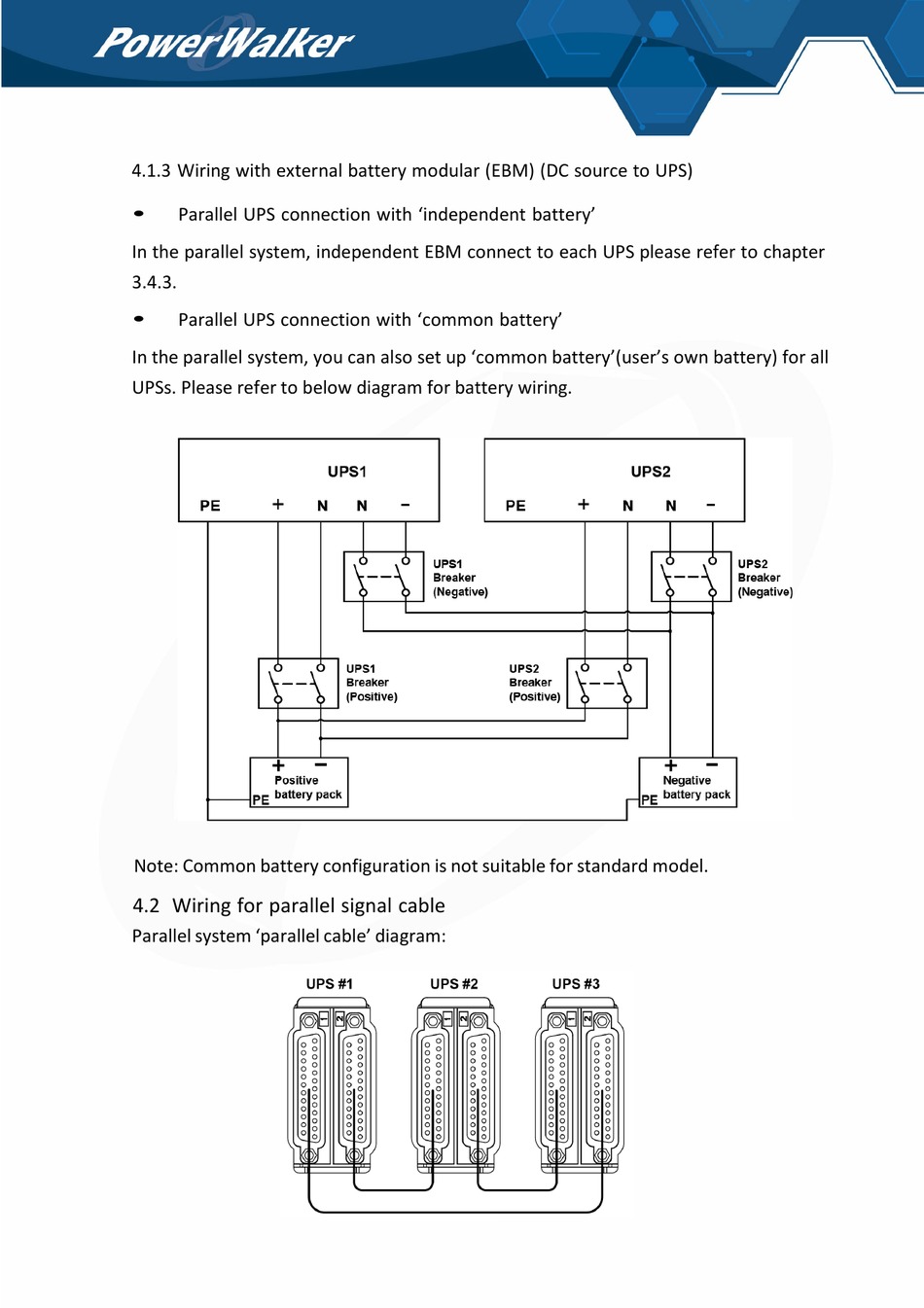

4.1.3 Wiring with external battery modular (EBM) (DC source to UPS)

Parallel UPS connection with 'independent battery'



In the parallel system, independent EBM connect to each UPS please refer to chapter

3.4.3.

Parallel UPS connection with 'common battery'



In the parallel system, you can also set up 'common battery'(user's own battery) for all

UPSs. Please refer to below diagram for battery wiring.

Note: Common battery configuration is not suitable for standard model.

4.2 Wiring for parallel signal cable

Parallel system 'parallel cable' diagram:
