  • Page 1 BYARM-W071-PC User Manual IBASE Technology Inc.
  • Page 2 BYARM-W071-PC User Manual Revision Release Date V1.0 2015/12/15 Copyright © 2013 IBASE Technology Inc. All Rights Reserved.
  • Page 3 BYARM-W071-PC User Manual Copyright © 2013 IBASE Technology Inc. All Rights Reserved. No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of IBASE Technology INC.

  • Page 4: Table Of Contents

    BYARM-W071-PC User Manual Table of Contents Setting up your system ....................... iii Care during use ........................iv Acknowledgments ....................... v CHAPTER 1 INTRODUCTION ..................1 1.1 General Description ....................... 1 1.2 System Specifications..................... 2 1.2.1 Hardware Specifications ..................... 2 1.2.2 Dimensions ......................... 3 1.2.3 I/O View ........................

  • Page 5: Setting Up Your System

    IBASE Technology Inc. Safety Information Your BYARM-W071-PC is designed and tested to meet the latest standards of safety for information technology equipment. However, to ensure your safety, it is important that you read the following safety instructions Setting up your system ...

  • Page 6: Care During Use

    BYARM-W071-PC User Manual Care during use  Do not walk on the power cord or allow anything to rest on it.  Do not spill water or any other liquids on your system.  When the system is turned off, a small amount of electrical current still flows.

  • Page 7: Acknowledgments

    FINTEK is a registered trademark of FINTEK Electronics Corporation.  REALTEK is a registered trademark of REALTEK Electronics Corporation.  All other product names or trademarks are properties of their respective owners. Copyright © 2013 IBASE Technology Inc. All Rights Reserved.

  • Page 9: Chapter 1 Introduction

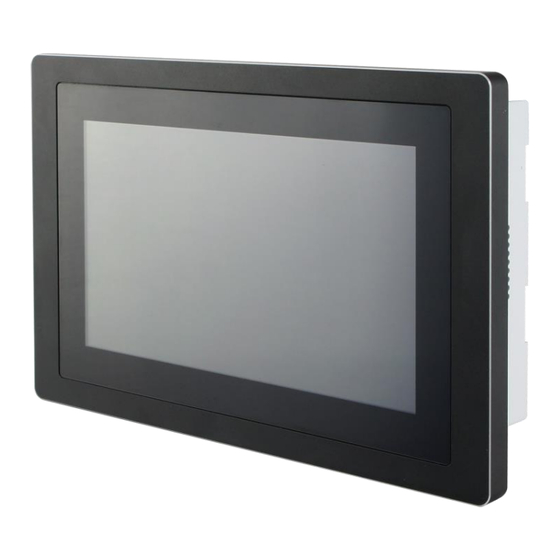

    BYARM-W071-PC User Manual CHAPTER 1 INTRODUCTION 1.1 General Description BYARM-W071-PC, a 7” ARM Based i.MX6 All-in-One Panel PC, utilizes the Freescale I.MX6 Dual-Core Processor that provides high computing performance with low power consumption. Well suited for industrial applications, BYARM-W071-PC comes with 1GB DDR3L memory, one 4GB eMMC and one SD card slot for data storage.

  • Page 10: System Specifications

    BYARM-W071-PC User Manual 1.2 System Specifications 1.2.1 Hardware Specifications Model Name BYARM-W071-PC System Mainboard IB113A-PPC Freescale i.MX6 Dual-Core @ 800MHz Memory 1GB DDR3L memory 1x USB (USB Host. A-Type) 1x USB OTG (mini USB B Type) I/O Interface 1x RS-232/422/485 via RJ45 connector...

  • Page 11: Dimensions

    IBASE Technology Inc. 1.2.2 Dimensions BYARM-W071-PC Copyright © 2013 IBASE Technology Inc. All Rights Reserved.

  • Page 12: I/O View

    BYARM-W071-PC User Manual 1.2.3 I/O View 1.3 Packing List Part No. Description Quantity 40W power adaptor 1 pc Panel mount bracket 1 set Rubber 1 set...

  • Page 13: Installation

    IBASE Technology Inc. 1.4 Installation 1.4.1 Installing SD card 1. Remove the SD cover as shown in the picture to install the SD card. Copyright © 2013 IBASE Technology Inc. All Rights Reserved.

  • Page 14: Chapter 2 Motherboard Introduction

    BYARM-W071-PC User Manual CHAPTER 2 MOTHERBOARD INTRODUCTION 2.1 Introduction BYARM-W071-PC uses the iBASE designed motherboard B113A-PPC, which has settings for BYARM-W071-PPC. IBASE technical support staff needs to be contacted for any changes require in the motherboard settings. IB113A-PPC is a 3.5" Disk-Size SBC with an ARM-based Freescale i.MX6 Cortex-A9 800Mhz processor.

  • Page 15: I/O View

    Devices WiFi / GPS / 3G module (option) Software Support Ubuntu Linux 12.04(kernel 3.0.35)/ Android 4.3 Relative Humidity 10%~90% (non-condensing) This specification is subject to change without prior notice. I/O View Copyright © 2013 IBASE Technology Inc. All Rights Reserved.

  • Page 16: Jumper Setting On Ib113A-Ppc

    BYARM-W071-PC User Manual 2.2 Jumper setting on IB113A-PPC [Important] Do not adjust the jumper settings by yourself to avoid unexpected problems. IBASE shall not be responsible for any resulting product damage. Please contact your IBASE sales window or FAE before making any changes.
  • Page 17 JP9: COM2 RS232, RS422, RS485 Selection Mode 2-4 Short RS232 3-5 Short 3-5 Short RS422 4-6 Short 1-3 Short RS485 4-6 Short Default setting is RS232 mode. JP9 setting for COM2. Copyright © 2013 IBASE Technology Inc. All Rights Reserved.
  • Page 18 BYARM-W071-PC User Manual JP6: USB +3.3V/+5V Power Setting(factory use only) Setting +3.3V Default setting is +5V. JP6 setting for J9. JP4: LVDS +3.3V/+5V Power Setting (factory use only) Setting +3.3V Default setting is +3.3V. ; JP4 setting for CH1, CH2.
  • Page 19 COM1 PORT: COM1 RS232 Connector (Debug Port, factory use only) Part Number: 0195-01-200-040 Description: Pin Header 2.0*2.0mm S/T Single Row 4pin Signal Name Pin # COM1 RX, Receive data COM1 TX, Transmit data GND, ground Copyright © 2013 IBASE Technology Inc. All Rights Reserved.
  • Page 20 BYARM-W071-PC User Manual COM2 : RS232/RS422/RS485 Serial Port Pin # Signal Name RS-232 RS-422 RS-485 DATA- DATA+ Ground Ground Ground Note: Please refer to JP9 setting for RS232, RS422 and RS485 mode selection. CH1, CH2: LVDS Display Connector Part Number: DF13-20DP-1.25V(95) Description: P1.25 SMD 20PIN Male 180D 2R...
  • Page 21 Description: Molex 53047 1.25mm Wafer S/T Type 2pin Signal Name Pin # SPEAKER_RIGHT- SPEAKER_RIGHT+ Note: The maximun output power is 2 W with 4 Ω speaker or 1.4 W with 8 Ω speaker Copyright © 2013 IBASE Technology Inc. All Rights Reserved.
  • Page 22 BYARM-W071-PC User Manual J8: Speaker Left Out Connector Part Number: 0110-2610020 Description: Molex 53047 1.25mm Wafer S/T Type 2pin Pin # Signal Name SPEAKER_LEFT- SPEAKER_LEFT+ Note: The maximun output power is 2 W with 4 Ω speaker or 1.4 W with 8 Ω speaker...
  • Page 23 Note: All In/Out signals level are 3.3V . SW2: Push Button for Hardware Reset BAT: 3.0V Lithium Battery Connector Part Number: 0110-2610020 Description: Molex 53047 1.25mm Wafer S/T Type 2pin Signal Name Pin # +VCC Copyright © 2013 IBASE Technology Inc. All Rights Reserved.
  • Page 24 BYARM-W071-PC User Manual CN9: 12V~24V Power Connector This connector supplies the system board operating voltage. Pin 1 Pin 2 Signal Name Pin # +12V ~ +24V J10: 12V~24V Power Connector Signal Name Pin # +12V ~ +24V Note: J10 signals are the same as CN9.
  • Page 25 J9: USB2.0 Connector Part Number: B4B-PH-K-S(LF)(SN) Description: Mini Base;DIP S 2mm 4P Signal Name Pin # +5V / +3.3V Default setting is +5V. Please refer to JP6 setting for +5V and +3.3V selection. Copyright © 2013 IBASE Technology Inc. All Rights Reserved.
  • Page 26 BYARM-W071-PC User Manual J6: Line Out Connector Part Number: 0110-2610030 Description: Molex 53047 1.25mm Wafer S/T Type 3pin Signal Name Pin # LINE_OUTL LINE_OUTR...
  • Page 27 J4: Mini PCIE Connector Signal Name Pin # Pin # Signal Name +3.3V PCIE_CLK1_N PCIE_CLK1_P +3.3V RESET# PCIE_RXM +3.3V PCIE_RXP I2C2_SCL PCIE_TXM I2C2_SDA PCIE_TXP USB2.0 D- USB2.0 D+ +3.3V +3.3V +3.3V Copyright © 2013 IBASE Technology Inc. All Rights Reserved.

  • Page 28: Chapter 3 Software Setup

    BYARM-W071-PC User Manual CHAPTER 3 Software Setup [Important] Please ask for our FAE support for any software setting. iBASE may not offer a free service if the product is damaged due to incorrect software settings. Basically, the IB113A-PPC is preloaded O.S (Android / Linux) into eMMC by default.
  • Page 29 5. And then, flash the Android/ Linux image into your SD card in your PC (Windows). 6. Please check the boot device switch and make sure it can boot from the SD card. Copyright © 2013 IBASE Technology Inc. All Rights Reserved.
  • Page 30 BYARM-W071-PC User Manual SW1: System Boot Configuration (factory use only) Boot From 10101010 01100110 EMMC --- Boot Up with IB113A-PPC--- Please double check the Boot device selection before powering on. (IB113A-PPC, by default, is set to boot up from eMMC.) Insert the SD card/MicroSD into the motherboard.

  • Page 31: Parameter Setting On U-Boot

    COM1 PORT: COM1 RS232 Connector (Debug Port, factory use only) Part Number: 0195-01-200-040 Description: Pin Header 2.0*2.0mm S/T Single Row 4pin Signal Name Pin # COM1 RX, Receive data COM1 TX, Transmit data GND, ground Copyright © 2013 IBASE Technology Inc. All Rights Reserved.

  • Page 32: Display Setting Command For Linux And Android

    BYARM-W071-PC User Manual 3.2.2 Display setting command For Linux and Android With the debug port, follow the reference command examples to help you to be familiar with display modification. (For advanced software engineers only) Command to set LVDS output to 1024x768, 24bit:...

  • Page 33: Appendix. Adb Configuration (For Android Only)

    Connect the Android Device into PC, uninstall your old driver named "Android Phone" in the device manager, then re-install driver by scanning and locating .inf file under the directory you unpack the IB113A-PPC_ADB_usd_driver.7z manually: Unpack and install the driver Copyright © 2013 IBASE Technology Inc. All Rights Reserved.
  • Page 34 BYARM-W071-PC User Manual This is warning message should show If driver match. If driver can not found, check device properties had “MI_01” string, if “MI_01” does not exist, the ADB and ADB driver not work.
  • Page 35 IBASE Technology Inc. Restart the ADB server D:\adt-bundle-windows-x86_64-20130729\sdk\platform-tools> adb.exe kill-server D:\adt-bundle-windows-x86_64-20130729\sdk\platform-tools> adb.exe start-server Finally, test your ADB connection D:\ adt-bundle-windows-x86_64-20130729\sdk\platform-tools> adb.exe devices List of devices attached 0e46dbc9b9d40f17 device ps. 0e46dbc9b9d40f17 id device UUID. Copyright © 2013 IBASE Technology Inc. All Rights Reserved.
