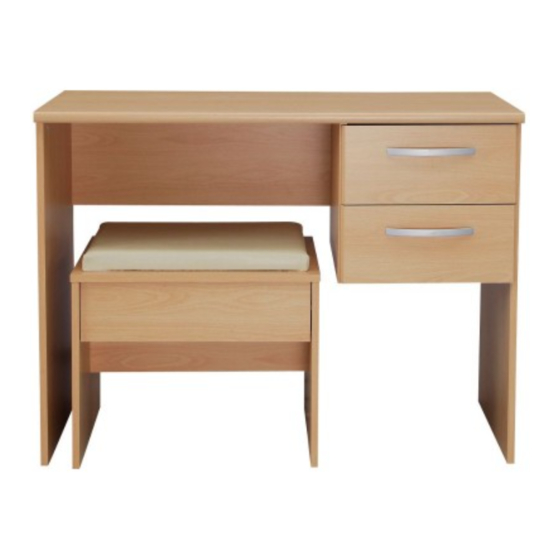

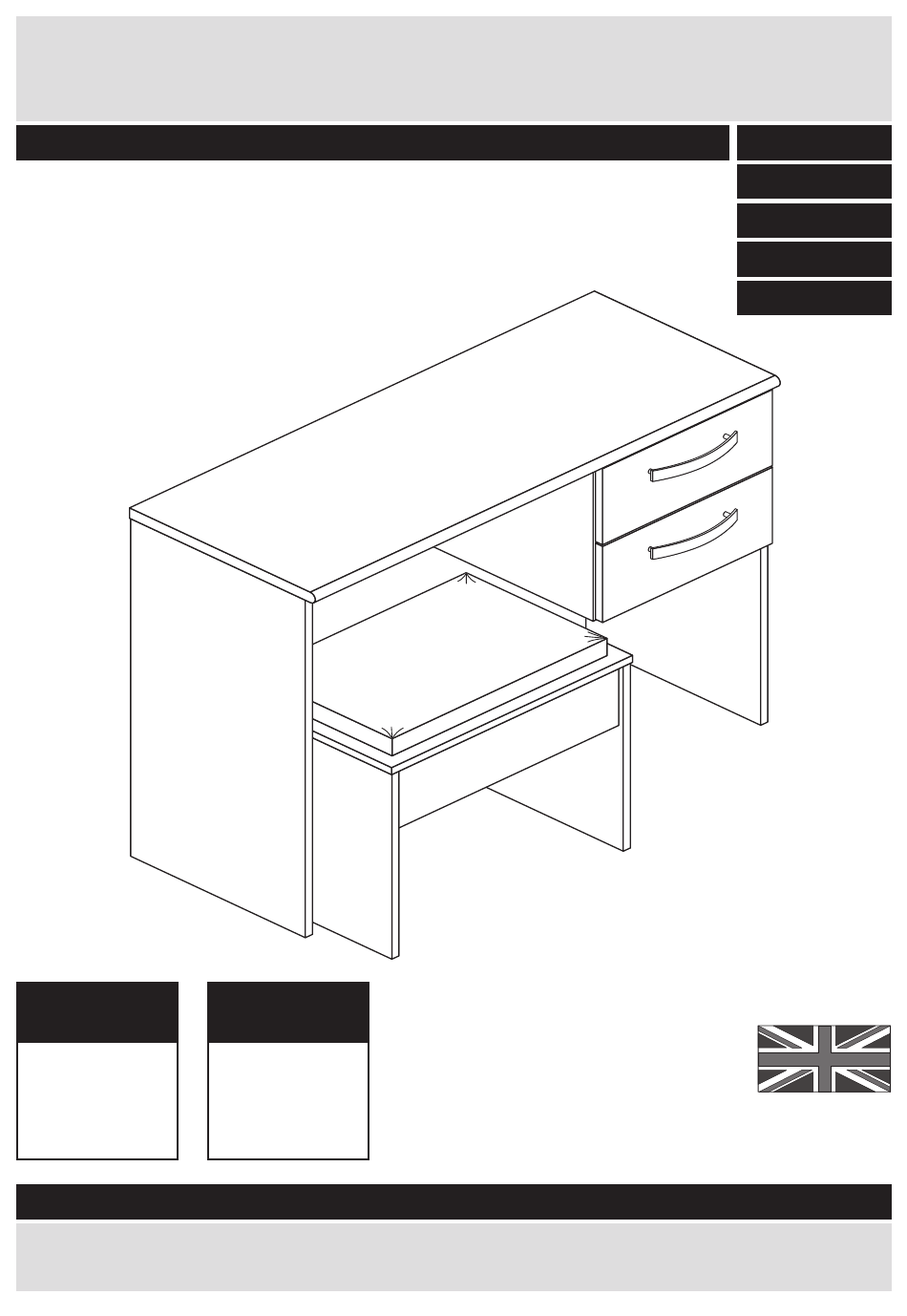

Hallingford - Dresser and Stool
Assembly Instructions -
Dresser
Dimensions
Width - 99cm
Depth - 40cm
Height - 74.5cm
Important -
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 0870 112 1928
or email: Help@ClickSpares.co.uk (quoting your original order number)
Please keep for future reference
Stool
Dimensions
Width - 51.5cm
Depth - 35.5cm
Height - 45cm
305/2323
305/2299
305/2316
305/2282
305/2347
MADE IN
BRITAIN
Issue 4 - 28/01/14
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Argos Hallingford 305/2323
Summary of Contents for Argos Hallingford 305/2323
- Page 1 Hallingford - Dresser and Stool Assembly Instructions - 305/2323 Please keep for future reference 305/2299 305/2316 305/2282 305/2347 Dresser Stool Dimensions Dimensions Width - 99cm Width - 51.5cm Depth - 40cm Depth - 35.5cm MADE IN Height - 74.5cm Height - 45cm BRITAIN Important - Please read these instructions fully before starting assembly...
- Page 2 Safety and Care Advice Important - Please read these instructions fully before starting assembly • Warning: This unit weighs • Make sure you have enough • We do not approximately 29kgs. space to layout the parts before recommend the Please lift with care. starting.
- Page 3 If you have damaged or missing components, call the Components - Panels Customer Helpline: 0870 112 1928 or email: Help@ClickSpares.co.uk (quoting your original order number and the reference numbers below) Please check you have all the panels listed below Dresser Modesty (D2330A) (598 x 244mm)
- Page 4 If you have damaged or missing components, call the Components - Fittings Customer Helpline: 0870 112 1928 or email: Help@ClickSpares.co.uk (quoting your original order number and the reference numbers below) Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
- Page 5 If you have damaged or missing components, call the Assembly Instructions Customer Helpline: 0870 112 1928 or email: Help@ClickSpares.co.uk (quoting your original order number and the reference numbers below) Step 1 Prepare the 2 drawer fronts Screw 2 metal dowels into the holes shown on the back of each drawer front...
- Page 6 Assembly Instructions Step 4 Fit the drawer base Slide the drawer base down the grooves in the drawer sides and down into the groove in the drawer front Step 5 Fit the drawer back Fit the drawer back between the drawer sides Make sure that the drawer base...
- Page 7 Assembly Instructions Step 7 Runners must be pushed up against the drawer front Fit runners to the drawers Turn the 2 drawer assemblies over. Fit runner , marked with ‘R’, to the bottom edge of the right drawer side , as shown, making sure that it is pushed up against the back of the drawer front...
- Page 8 Assembly Instructions Step 9 Prepare the right side Fit 2 runners the right side The 1st screw uses Finished the 2nd hole in from the front edge front of the runner. The 2nd and 3rd screws screw screw screw use the holes that line up with the other panel holes.
- Page 9 Assembly Instructions Step 11 screw screw screw Prepare the upright Fit 2 runners the upright The 1st screw uses Finished the 2nd hole in from the front edge front of the runner. The 2nd and 3rd screws use the holes that line up with the other panel holes.
- Page 10 Assembly Instructions Step 12 Fit the upright Push the upright onto the 2 rails Use a screwdriver to tighten the 2 large locking nuts fitted to the rails Step 13 Plain chipboard Prepare the modesty surface Insert 4 large locking nuts into the modesty Step 14...
- Page 11 Assembly Instructions Step 15 Join the modesty to the left side Push the modesty onto the left side Note: The top edges should be flush. Use a screwdriver to tighten the 2 large locking nuts fitted to the modesty Step 16 Fit the modesty and left side assembly Push the modesty...
- Page 12 Assembly Instructions Step 17 Prepare the top Screw 6 metal dowels into the top Step 18 Fit the top Lower the top down onto the assembly. Use a screwdriver to tighten the 6 large locking nuts fitted to the left side , right side and upright...
- Page 13 Assembly Instructions Step 19 The measurement from top corner X to bottom corner X must be equal to the measurement from top corner Y to bottom corner Y Fit the back Square up the unit by making sure that measurement x to x equals y to y.
- Page 14 Assembly Instructions Step 21 Prepare the stool drawer front Screw 2 metal dowels into the stool drawer front Step 22 Note: Due to the manufacturing process, the holes for the Prepare the stool locking nut can be on either surface of the drawer sides. drawer sides Insert a small locking into the hole...
- Page 15 Assembly Instructions Step 24 Fit the stool drawer base Slide the stool drawer base down the grooves in the stool drawer sides and down into the groove in the stool drawer front Step 25 Fit the stool drawer back Fit the stool drawer back down onto the stool drawer base Make sure that the stool...
- Page 16 Assembly Instructions Step 27 Prepare the stool left side Place a runner onto the stool left side Slide back the top of runner and use the 2nd hole from the front to fit the 1st screw Slide the runner back the other way and use the 2nd hole from the back to fit the 2nd screw...
- Page 17 Assembly Instructions Step 28 Prepare the stool right side Place a runner onto the stool right side . Slide back the top of runner and use the 2nd hole from the front to fit the 1st screw Slide the runner back the other way and use the 2nd hole from the back to fit the 2nd...
- Page 18 Assembly Instructions Step 29 Fit a stool rail to the stool left side Push a stool rail onto the stool left side Use a screwdriver to tighten the 2 large locking nuts fitted to the stool rail Step 30 Plain Prepare the stool chipboard surface...
- Page 19 Assembly Instructions Step 32 Fit the other stool rail Push the other stool rail onto the stool left side Use a screwdriver to tighten the 2 large locking nuts fitted to the stool rail Step 33 Fit the stool right side Push the stool right side onto the stool base and the 2 stool rails...
- Page 20 Assembly Instructions Step 35 Plain Prepare the stool top chipboard surface Screw 4 metal dowels into the stool top Step 36 Fit the stool seat pad Fit the stool seat pad to the stool top using 4 screws Note: Make sure that Soft you screw into the hard surface...
- Page 21 If you need help or have damaged or missing parts, call the Customer Helpline: 0870 112 1928 or email: Help@ClickSpares.co.uk (quoting your original order number and the reference numbers on the component pages) Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW...
- Page 24 ALR2888...
