Argos Winchester 656/7011 Assembly Instructions Manual
Argos Winchester 656/7011 Assembly Instructions Manual

Argos Winchester 656/7011 Assembly Instructions Manual

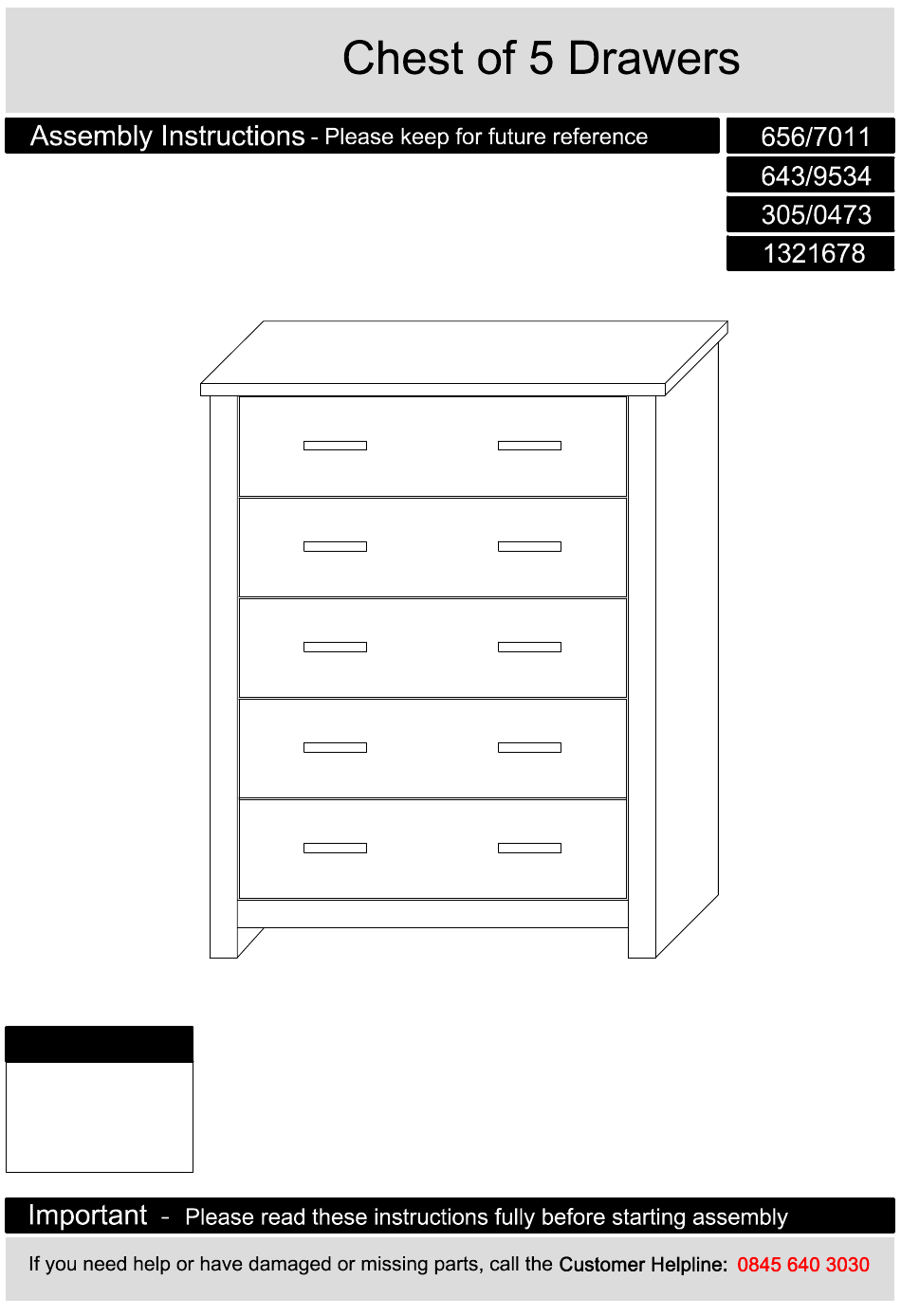

Chest of 5 drawers

Advertisement

Quick Links

Winchester -
Dimensions
Width - 89cm
Depth - 42.5cm
Height - 110.1cm
Issue 6 - 12/10/12

Advertisement

loading
Need help?

Need help?

Do you have a question about the Winchester 656/7011 and is the answer not in the manual?

Questions and answers

Summary of Contents for Argos Winchester 656/7011

  • Page 1 Winchester - Dimensions Width - 89cm Depth - 42.5cm Height - 110.1cm Issue 6 - 12/10/12...
  • Page 3 Top panel x 1 (89 x 42.5cm) Bottom front support x 1 (75 x 7.1cm) Left side panel x 1 Right side panel x 1 Bottom back support x 1 (39.5 x 107.8cm) (39.5 x 107.8cm) (75 x 7.1cm) Bottom plinth x 1 Right hinge frame x 1 (74.9 x 5.3cm) (5.3 x 107.8cm)
  • Page 4 Note Tools required...
  • Page 5 Step 1 Attaching runners a: Position left runners and right runners A on to the drilled holes of the left and right side panels Fix through holes shown using screws b: Attaching feet Position plastic feet to the left and right side panels from below and fix them using...
  • Page 6 Assembly Instructions Step 4 Frame assembly Insert screws in to the frames Step 5 Insert wooden dowels as shown, align correctly and insert large locking nuts in to the frame , place the frames and turn lucking nuts clockwise to lock.
  • Page 7 Assembly Instructions Step 6 Attaching the frame Insert wooden dowels into the edge of the left and right side panels Align correctly and insert large locking nuts into left and right side panels and place the frame and turn locking nuts clockwise to lock.
  • Page 8 Assembly Instructions Step 8 Attaching back panel Note: You must ensure the chest is square Position back panel before attaching in position on the back of the back panel. bedside chest. Position nails 5 mm in from side edge of the back panel with distance 100 mm between each...
  • Page 9 Assembly Instructions Step 9 - continued g: Align correctly and insert small locking nuts into left and right drawer sides turn them clockwise to lock. h: Position left and right runners B to left and right drawer sides , fix using screws i: Large drawers only: Position 2 drawer base...
  • Page 10 Assembly Instructions Step 10 Fixing to wall It is recomended that the chest is fixed to a wall. Poke wall strap through the hole in the back panel and fix it to top panel underneath using screw and underlay Mark fixing hole onto wall. Drill a hole and insert a suitable wall plug.
  • Page 11 Assembly Instructions Step 12 Drawer runner adjustment To move drawers up or down: loosen screws shown and move runners up or down as required. Retighten screws and fix the runners using screws Assembly is complete. Customer Helpline: 0845 640 3030 Home Retail Group Plc, 489 - 499 Avebury boulevard, Milton Keynes, MK9 2NW...
