Argos Malibu 305/1805 Assembly Instructions Manual

3 drawer 2+2 door robe
Hide thumbs

Advertisement

Quick Links

Download this manual

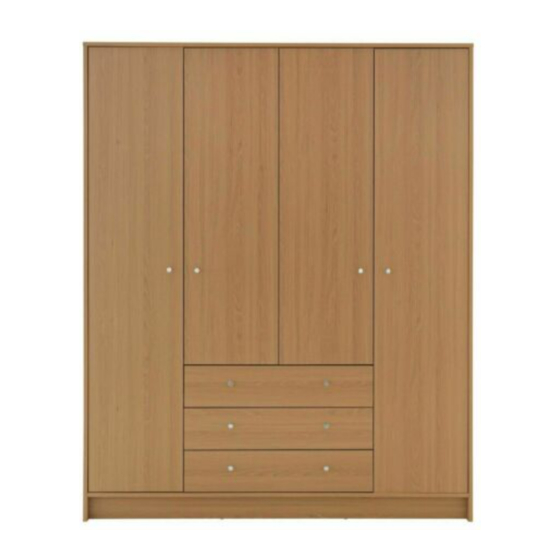

Malibu - 3 Drawer 2+2 Door Robe
Assembly Instructions -
Dimensions
Width - 145.5cm
Depth - 50cm
Height - 181cm
Important -
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Please keep for future reference
305/1805
305/1812
305/1795
305/1829
305/1788
MADE IN
BRITAIN
Issue 3 - 03/09/13
