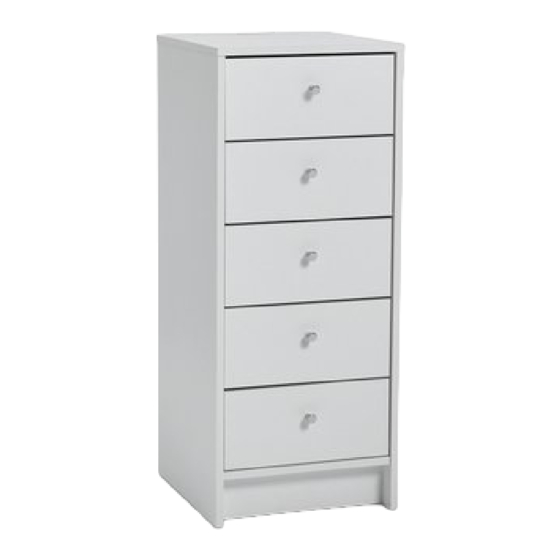

Malibu - 5 Drawer Chest
Assembly Instructions -
Dimensions
Width - 39cm
Depth - 40cm
Height - 92.5cm
Important -
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Please keep for future reference
305/1764
305/1733
305/1757
305/1740
305/1771
MADE IN
BRITAIN
Issue 2 - 30/09/13
Advertisement
Related Manuals for Argos Malibu 305/1764
Summary of Contents for Argos Malibu 305/1764
- Page 1 Malibu - 5 Drawer Chest Assembly Instructions - 305/1764 Please keep for future reference 305/1733 305/1757 305/1740 305/1771 Dimensions Width - 39cm Depth - 40cm MADE IN Height - 92.5cm BRITAIN Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 Issue 2 - 30/09/13...
- Page 2 Safety and Care Advice Important - Please read these instructions fully before starting assembly • Warning: This unit weighs • Make sure you have enough • We do not approximately 16.5kgs. space to layout the parts before recommend the Please lift with care. starting.
-
Page 3: (910 X 394Mm)
If you have damaged or missing components, call the Components - Panels Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the panels listed below (D2029A) (388 x 396mm) Rail (D2032A) (349 x 92mm) Left Side Right Side Cross Rail (D2030A) - Page 4 If you have damaged or missing components, call the Components - Fittings Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
- Page 5 If you have damaged or missing components, call the Assembly Instructions Customer Helpline: 08456 400800 quoting the reference numbers below Step 1 Prepare the drawer fronts and wraps Screw 2 metal dowels into the holes shown on the back of the 5 drawer fronts Note: Tighten metal dowels up fully against...
- Page 6 Assembly Instructions Step 3 Attach the drawer stops Carefully break off 2 drawer stops (F599) from a set of drawer runners Push the drawer stops fully through the drawer wrap from the inside. F599 F599 F599 F599 Step 4 Attach the handles Attach a handle each of the 5 drawer fronts...
-
Page 7: Right Side
Assembly Instructions Step 5 Prepare the left side F600 Separate the runners 10mm Push fit the left runners marked ‘L’ into the left side Note: Runners must be be fitted flat against the panel. If necessary gently tap into final Finished position. -
Page 8: Rail (D2032A)
Assembly Instructions Step 7 Rail (349 x 92mm) Prepare the rails Tap 2 wooden dowels into each of the rails Step 8 Fit the rails to the right side Push the rails onto the right side secure them with 2 screws Finished front edge... - Page 9 Assembly Instructions Step 10 Fit the cross rails Push the cross rails onto the right side p l a i n c and secure them with 2 h i p s u r screws a r d f a c p l a i n c h i p...
- Page 10 Assembly Instructions Step 12 Prepare the top Screw 4 metal dowels into the top Fix the bracket in the middle of the top flush to the back edge, using screw Finished front edge Step 13 Fit the top Push the top onto the side panels Use a screwdriver to...
- Page 11 Assembly Instructions Step 14 The measurement from top corner X to bottom corner X must be equal to the measurement from top corner Y to bottom corner Y Fit the back Square up the unit by making sure that measurement x to x equals y to y.
- Page 12 Lift with care. If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 and quote the reference numbers on the component pages. Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW ALR2845...
