Opening fitlet3

You will need to open fitlet3 in order to install RAM, storage and RTC battery.
Required tool: Phillips screwdriver.

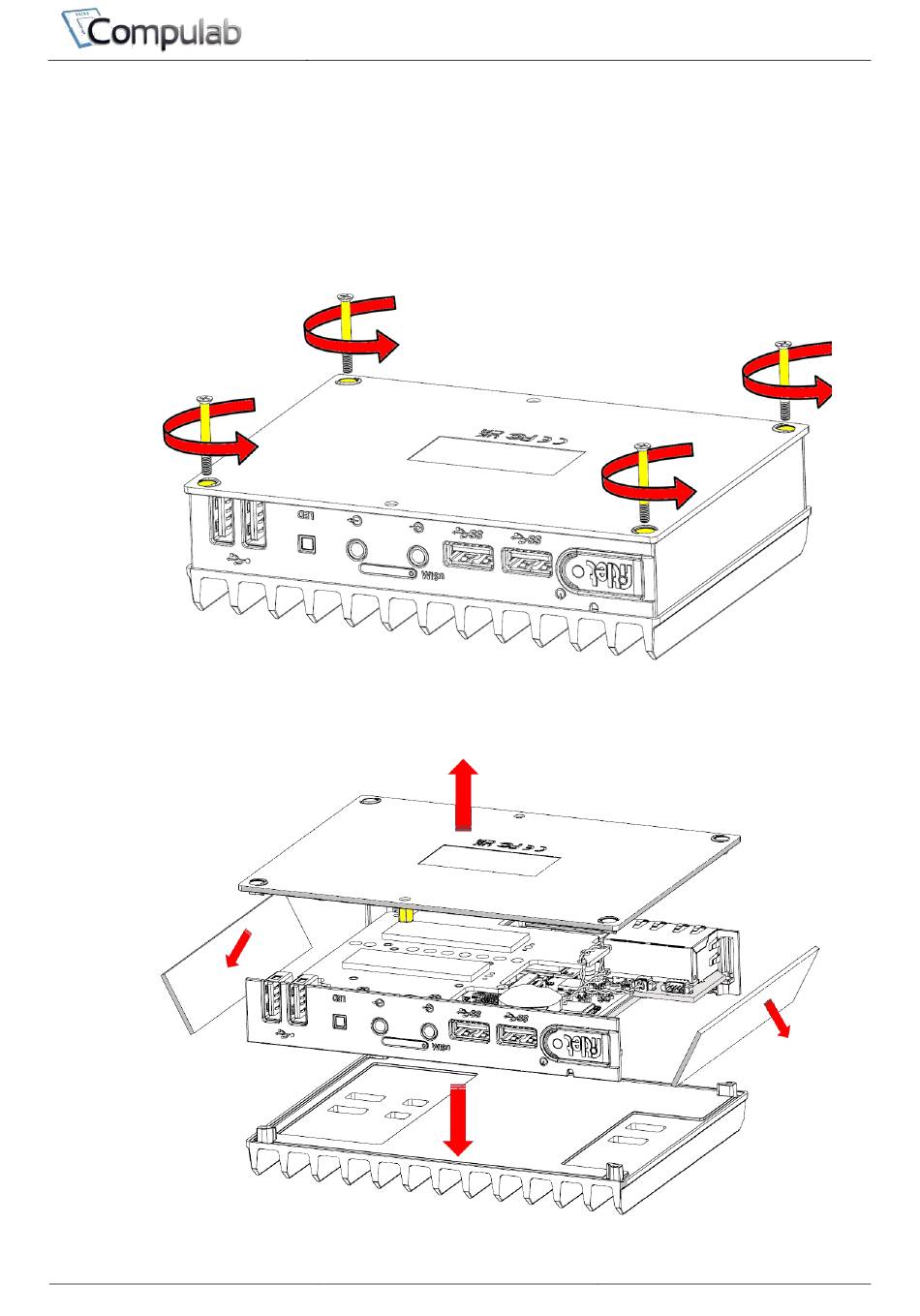

To open fitlet3 please follow these steps:
1.
Place fitlet3 on a flat surface bottom-up.
2.
Open the four screws using the Phillips screwdriver (counter clock-wise).
3.
Lift the bottom cover to remove it. Side panels should fall-off.
4.
Lift fitlet3 from the top cover
