Summary of Contents for Peak Scientific Infinity 1045

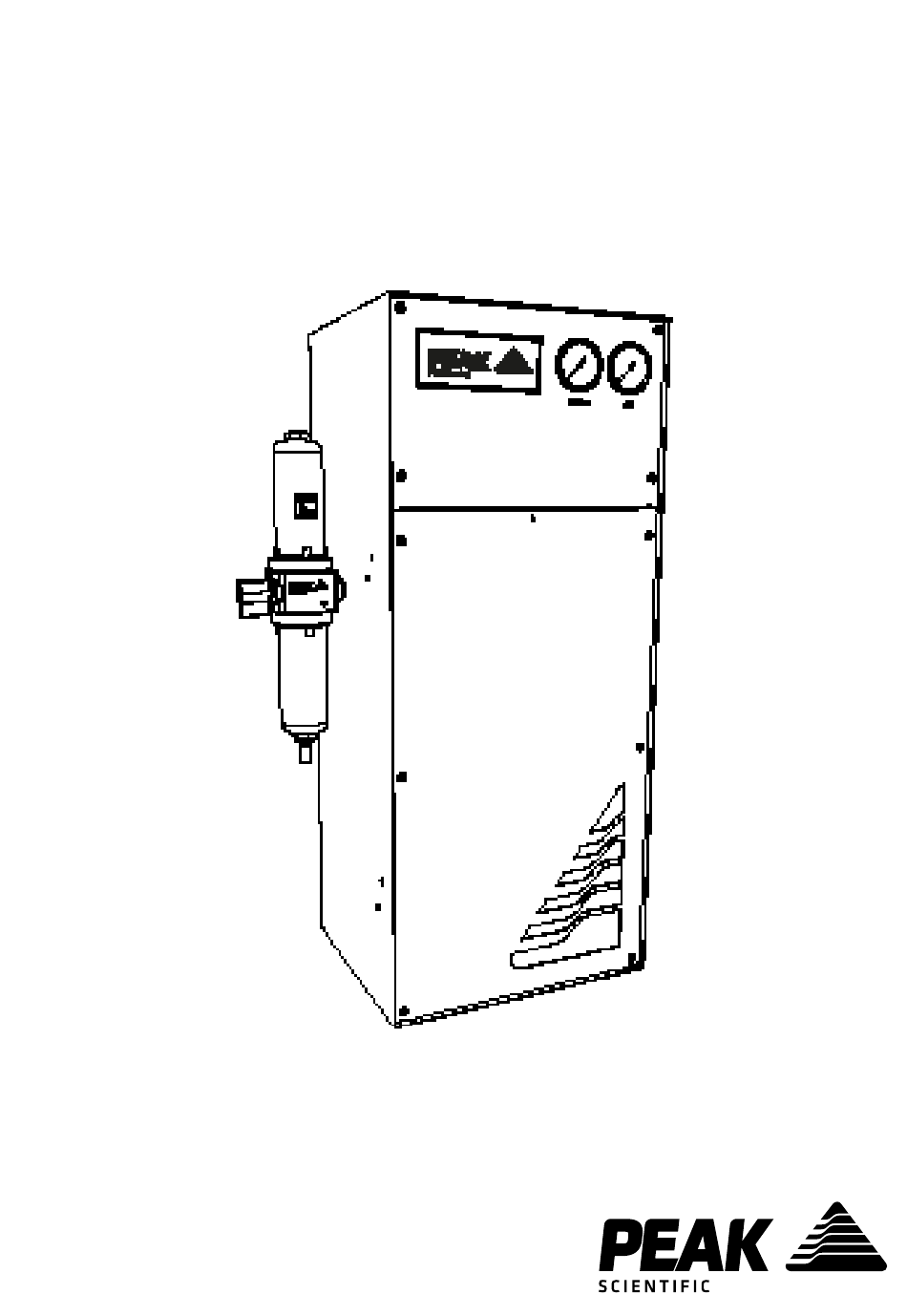

- Page 1 Infinity 1045 User Manual Copyright © Peak Scientific Instruments Ltd 2021 — Infinity 1045 User Manual Rev 2 RSID 179 EN —12/10/2021...
-
Page 2: Table Of Contents
Contents Change History How to use this Manual Introduction Warranties and Liabilities Warranty & Liability Coverage Safety Notices Certificate of Compliance Technical Specification Unpacking Fittings Kit Contents Installation Generator Overview Air Connection Commissioning Service Requirements Peak Protected Cleaning Safely Isolated Condition Troubleshooting Notes Page 2... -
Page 3: Change History
Users can refer to the contents page to find the relevant information. Please review each of the following sections carefully. Thank you for selecting Peak Scientific to meet your gas generation needs, and should you require any further assistance or support please do not hesitate to contact Peak Scientific or the Peak Partner from which you purchased your generator. -
Page 4: Introduction

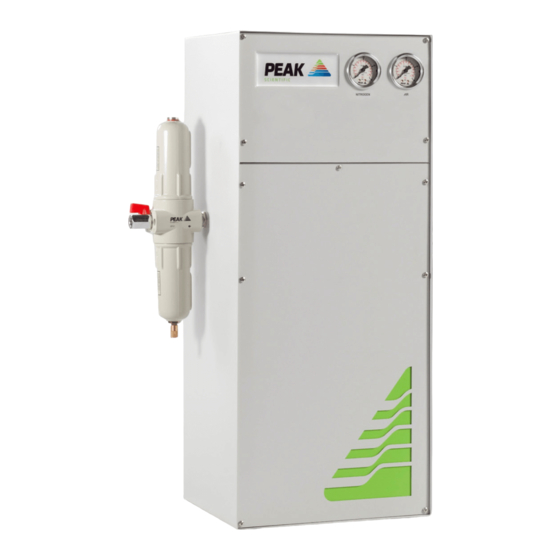

Introduction The Infinity 1045 compressorless nitrogen generator has been specifically designed to supply the Bruker EVOQ Triple Quadrupole Mass Spectrometer with carrier nitrogen gas and a separate dry air output. The Infinity Series are compressor-free gas generators which require a clean source of in-house air to operate effectively. -
Page 5: Warranties And Liabilities
Warranties and Liabilities Warranty & Liability Coverage Peak warrants that, subject to the provisions in this statement, purchased Peak generators, whether purchased directly from Peak or indirectly via an approved, certified and trained distributor or partner (referred to hereafter as a “Peak Partner”) will comply in all material respects with any specifications referred to in your customer order confirmation and, subject to installation and operational guidelines being followed as described in applicable product manuals, shall be free from any defects in quality of materials or workmanship for a period of one year from the date of installation, provided this takes... - Page 6 8. Peak shall not be liable in respect of any claim made for costs, damages, losses or expenses (whether consequential, direct, indirect or otherwise) or in any respect howsoever arising including, but not limited to, liability from accident or negligence (other than pursuant to clause 5) that may be suffered by you or any third party.
-
Page 7: Safety Notices
If the user employs an operating procedure, item of equipment or a method of working which is not specifically recommended by Peak Scientific, the user must ensure that the equipment will not be damaged or become hazardous to persons or property. - Page 8 • Restriction on the use of certain hazardous substances in electronic equipment (RoHS) Directive 2011/65/EU as amended by EU 2015/863. • FCC 47 CFR Part 15 class A Unintentional radiators; Conducted and Radiated emissions limits. Signed for and on behalf of Peak Scientific by Signed: Name: Fraser Dunn...
- Page 9 BS61326-1:2013 Electrical Equipment for Measurement , Control and Laboratory Use – EMC Requirements. • The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012 (SI 2012 / 3032) as amended. Signed for and on behalf of Peak Scientific by Signed: Name: Fraser Dunn...
- Page 10 WEEE Compliance Statement The Waste Electrical and Electronic Equipment (WEEE) Regulations SI 2013 No 3113 and or the Waste Electrical and Electronic Equipment (WEEE) Directive 2012/19/EU apply to all electrical and electronic equipment placed on the market in the UK and EU covered by the scope of regulations which can be found in the Government Guidance Notes (PDF) produced by the Department for Business Innovation and skills for the UK and here for Europe.
-
Page 11: Technical Specification
Technical Specification Infinity 1045 Environment Infinity 1045 Minimum Operating Ambient Temperature 5 °C (41°F) Maximum Operating Ambient Temperature 35°C (95°F) Maximum Relative Humidity 70% Non-Condensing Inlet Conditions Minimum Air Inlet Pressure 8 bar (116 psi) Maximum Air Inlet Pressure 10 bar (145 psi) -
Page 12: Unpacking
Check ‘SHOCKWATCH’ and ‘TIP-N-TELL’ labels for signs of rough handling prior to unpacking Any damage should be reported immediately to the carrier and Peak Scientific or the Peak Partner from where the unit was purchased. Follow the unpacking instructions posted on the side of the crate. It will require two people to remove the unit from the shipping crate and to manoeuvre the generator to the desired location. -
Page 13: Fittings Kit Contents
3. Screw N8 x 1 ½ Supa Counter Sunk 4. Raw-Plug for N8 Screw (521-3087) 5. Installation Guide–Infinity 1045 6. User Manual CD– Infinity 1045 All of the generators output ports are located on the output panel at the rear of the unit. -
Page 14: Installation
Installation Generator Environment The generator is designed for indoor use only. It should be installed adjacent to the application(s) it is supplying. If this is not convenient then the unit can be sited elsewhere, however, consideration should be made of the lengths of pipe runs as pressure drops can result from extended runs of pipe. -
Page 15: Generator Overview
Generator Overview General Dimensions 250.00 mm 330.00 mm The generator must always be placed on a flat, level surface. Failure to do so will affect the performance of the generator. WARNING Page 15... -
Page 16: Air Connection
Air Connection Infinity 1045 Generator should be connected to a clean, dry, OIL - FREE source of compressed air. A minimum inlet pressure of 116 psig (8 barg) is required. Any doubts as to the suitability of your compressed air supply should be referred to Peak Scientific or any of their authorised partners. -
Page 17: Commissioning
Commissioning With the Generator installed (as described earlier), connect compressed air to the unit and open the air supply to the Unit. Disconnect the Outlet connections to allow the generator to vent to atmosphere until the unit is stabilised. The Generator has been pre- set in the factory to give the specified output flow-rate and pressure in line with known requirements. -
Page 18: Service Requirements
Service Requirements Service Schedule Purchase Interval Component Visit 12 Months Infinity 1045/1046 Annual Maintenance Kit www.peakscientific.com/ordering Page 18... -
Page 19: Peak Protected
Peak Protected With Peak Scientific you invest in not only a product but peace of mind. With a network of certified Peak engineers stationed throughout the globe, Peak’s rapid response team are never far away and our commitment is to keep your generator running day in, day out, protecting your laboratory workflow. -
Page 20: Cleaning
Cleaning Clean the outside of the generator only using warm soapy water and a clean damp cloth. Ensure all excess fluid is thoroughly removed from the cloth prior to use. Under no circumstances should any solvents or abrasive cleaning solutions be used as these can contain fumes that could be harmful to the generator. -
Page 21: Troubleshooting
Troubleshooting Problem Possible Solution • Check the pressure regulator at the back of the unit has not been adjusted. • Check to see if the inlet pressure gauge has dropped below the set air supply The output pressure has dropped below its pressure. - Page 22 See our enclosed Peak [Protected] leaflet for further information. Important! You have 1 month to register your Peak Scientific product from the date of installation. Once registered the warranty will be honoured for a period of 12 months. If you wish to defer the installation of your generator, you must notify Peak Scientific immediately by emailing warranty@peakscientific.com.
-
Page 23: Notes
Notes Page 23... - Page 24 Tel: +44 141 812 8100 Fax: +44 141 812 8200 For further information on any of our generator products please contact marketing@peakscientific.com Copyright © Peak Scientific Instruments Ltd 2021 — Infinity 1045 User Manual Rev 2 RSID 179 EN —12/10/2021...
