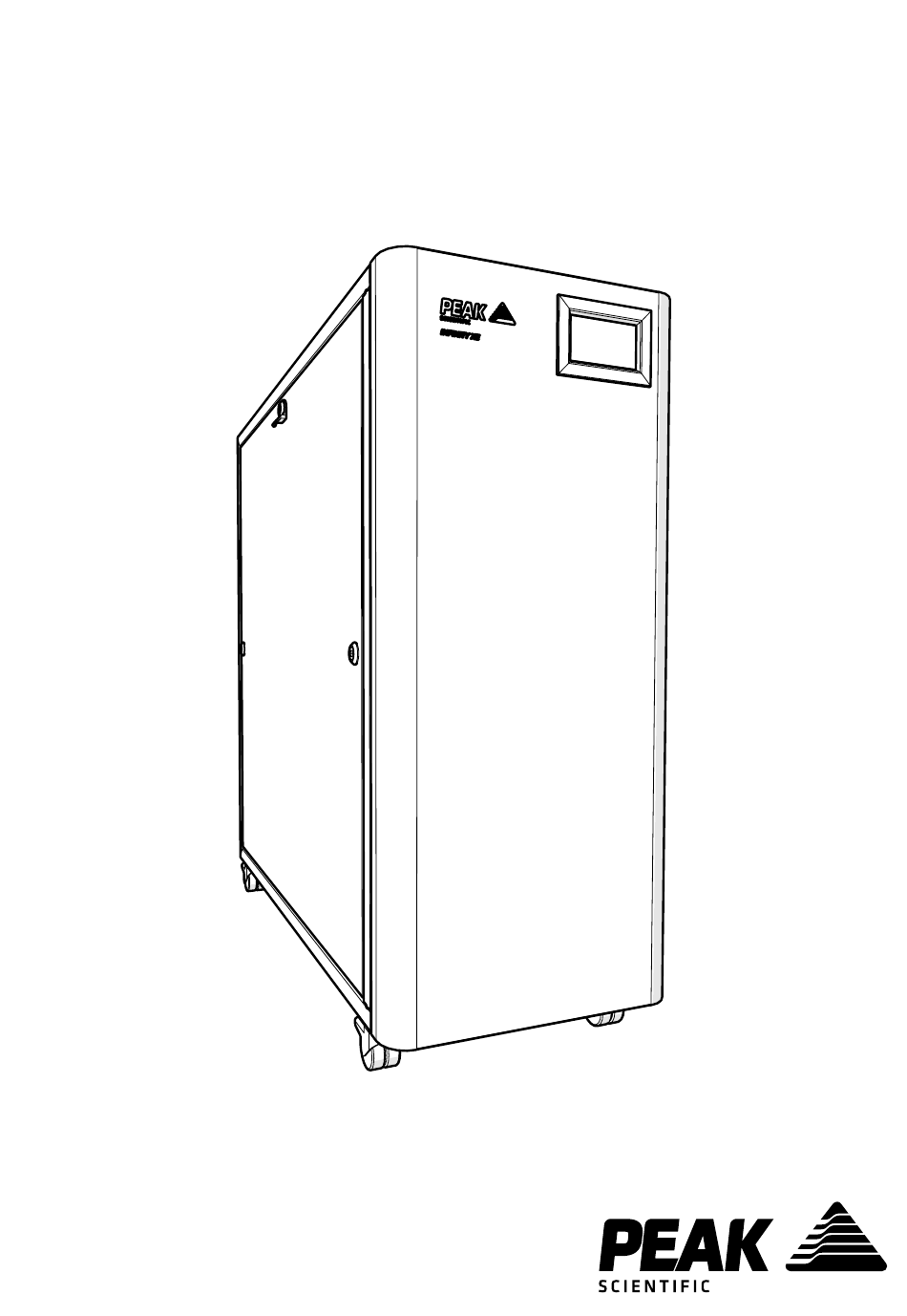

Page 1: User Manual
Infinity XE 60 Series User Manual Copyright © Peak Scientific Instruments Ltd 2021 — Infinity XE 60 Series User Manual Rev 3 RSID 4129 EN —28/09/2021... -
Page 2: Table Of Contents
Contents User Manual Change History How to use this Manual Warranties and Liabilities Warranty & Liability Coverage Safety Notices Symbols Safety Notice to Users EU Declaration of Conformity UK Declaration of Conformity WEEE Compliance Statement Technical Specification Unpacking Fittings Kit Contents Installation Generator Environment Inlet Air Quality... -
Page 3: Change History
Users can refer to the contents page to find the relevant information. Please review each of the following sections carefully. Thank you for selecting Peak Scientific to meet your gas generation needs, and should you require any further assistance or support please do not hesitate to contact Peak Scientific or the Peak Partner from which you purchased your generator. -
Page 4: Warranties And Liabilities
Warranties and Liabilities Warranty & Liability Coverage Peak warrants that, subject to the provisions in this statement, purchased Peak generators, whether purchased directly from Peak or indirectly via an approved, certified and trained distributor or partner (referred to hereafter as a "Peak Partner") will comply in all material respects with any specifications referred to in your customer order confirmation and, subject to installation and operational guidelines being followed as described in applicable product manuals, shall be free from any defects in quality of materials or workmanship for a period of one year from the date of installation, provided this takes place... - Page 5 from failure of Peak to comply with the provisions in clauses 1, 2, 3, 4 & 5. Exclusions & Limitations 7. This warranty does not cover: a. Damage, deterioration or malfunction resulting from an alteration or modification to a generator which has not been carried out by Peak or a Peak Partner;...
-
Page 6: Safety Notices
If the user employs an operating procedure, item of equipment or a method of working which is not specifically recommended by Peak Scientific, the user must ensure that the equipment will not be damaged or become hazardous to persons or property. -
Page 7: Eu Declaration Of Conformity
• Restriction on the use of certain hazardous substances in electronic equipment (RoHS) Directive 2011/65/EU as amended by EU 2015/863. • FCC 47 CFR Part 15 class A Unintentional radiators; Conducted and Radiated emissions limits. Signed for and on behalf of Peak Scientific by Signed: Name: Fraser Dunn... -
Page 8: Uk Declaration Of Conformity
BS61326-1:2013 Electrical Equipment for Measurement , Control and Laboratory Use – EMC Requirements. • The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012 (SI 2012 / 3032) as amended. Signed for and on behalf of Peak Scientific by Signed: Name: Fraser Dunn... -
Page 9: Weee Compliance Statement
WEEE Compliance Statement The Waste Electrical and Electronic Equipment (WEEE) Regulations SI 2013 No 3113 and or the Waste Electrical and Electronic Equipment (WEEE) Directive 2012/19/EU apply to all electrical and electronic equipment placed on the market in the UK and EU covered by the scope of regulations which can be found in the Government Guidance Notes (PDF) produced by the Department for Business Innovation and skills for the UK and here for Europe. -
Page 10: Technical Specification
Technical Specification Infinity XE 6010 & 6020 Environment 6010 6020 Minimum Operating Ambient Temperature 5°C (41°F) Maximum Operating Ambient Temperature 30°C (86°F) Maximum Altitude 3000m Maximum Relative Humidity Maximum safety ambient temperature 30°C When taken out of storage the generator should be allowed to acclimatize at room temperature for a minimum of 3 hours before operation. - Page 11 Technical Specification Infinity XE 6030 & 6040 Environment 6030 6040 Minimum Operating Ambient Temperature 5°C (41°F) Maximum Operating Ambient Temperature 30°C (86°F) Maximum Altitude 3000m Maximum Relative Humidity Maximum safety ambient temperature 30°C When taken out of storage the generator should be allowed to acclimatize at room temperature for a minimum of 3 hours before operation.
-
Page 12: Unpacking
Check ‘SHOCKWATCH’ and ‘TIP-N-TELL’ labels for signs of rough handling prior to unpacking Any damage should be reported immediately to the carrier and Peak Scientific or the Peak Partner from where the unit was purchased. Follow the unpacking instructions posted on the side of the crate. It will require two people to remove the unit from the shipping crate and to manoeuvre the generator to the desired location. -
Page 13: Fittings Kit Contents
Fittings Kit Contents Supplied in the Fittings Kit are all the fittings required to connect the generator to the application. The contents of the Fittings Kit are as follows: 1. 6mm PE Tubing x 3m 2. 12mm PE Tubing x 3m* 3. -
Page 14: Installation
Installation Generator Environment The generator is designed for indoor use only. It should be installed adjacent to the application(s) it is supplying. If this is not convenient then the unit can be sited elsewhere, however, consideration should be made of the lengths of pipe runs as pressure drops can result from extended runs of pipe. -
Page 15: Generator Overview
Generator Overview General Dimensions The generator must always be placed on a flat, level surface. Failure to do so will affect the performance of the generator. WARNING Ensure all inlets and outlets are connected to correct sources and applications WARNING All Connections should only be carried out by trained personnel WARNING Generator must be switched off and unplugged prior to any cleaning... -
Page 16: Rear Connections
Rear Connections Page 16... -
Page 17: Electrical Connection
Electrical Connection Connect the generator to an appropriate 100-230 volt single-phase supply, refer to the generator serial plate for input specification and ensure your supply matches the requirements. If the appropriate power cord is not supplied; a new plug, rated to at least 12 amps, can be fitted by a qualified electrician. -
Page 18: Normal Operation
Normal Operation The Infinity XE 60 Series Gas Generators are designed specifically to minimize operator involvement. Given that the systems are installed as described in earlier sections and is serviced in accordance with the specified maintenance recommendations (see Service Requirements), then it should simply be a matter of turning the Generator on when it is required. -
Page 19: Commissioning
CAUTION > 10 - 40 meters: Use 12/10 (12mm O/D, 10mm I/D) Tubing. > 40 metres: Please contact Peak Scientific with the relevant distance andwe will calculate the flow resistance and the tubing size required. The imperial equivalents are: 12/10 = 1/2” O/D, 3/8” I/D. - Page 20 HMI Screens Normal Operation When the generator is powered on it will show the following screens until a system check has been performed. The checks will last a few seconds then the HMI will show the home screen. Customers can view two screens at this stage. Home Screen This shows live system pressures.
- Page 21 The second information screen shows details on service timeline and program ver- sions. Settings Screen These screens allow the user to toggle between different flow and purity measure- ment units. These can be set to the users personal preference at any time. To change simply select the unit and then select confirm when prompted.
-
Page 22: System Icons
System Icons System icons will show in the top right of the screen and give indications on running conditions, faults or service alarms. A ‘tick’ icon in the top right indicates normal run- ning conditions with no faults or service requirements. ‘Eco’... - Page 23 Fault Codes XE60 Minor Fault Warning Codes In the event of a minor fault with the generator, the HMI will display an amber warning signal along with a fault reference code. Toggle the warning indicator in the top right corner of the HMI to view warning code. Minor Fault codes A list of minor fault codes for the XE60 is shown below;...
- Page 24 XE60 Major Fault Warning Codes In the event of a major fault with the generator, the HMI will display a red warning sig- nal along with a fault reference code. Toggle the warning indicator in the top right corner of the HMI to view warning code. Major Fault codes A list of major fault codes for the XE60 is shown below;...
- Page 25 Service alarms When a service is due, the HMI will show the following Icon on the screen; When a service is overdue, the HMI will show the following Icon on the screen; Page 25...
- Page 26 When a service is overdue, the HMI will show the following Icon on the screen; Page 26...
-
Page 27: Service Requirements
Service Requirements Service Schedule Purchase Interval Component Visit Infinity XE 60 Series Annual Maintenance 12 Months www.peakscientific.com/ordering 4 years Infinity XE 60 Series 4-year Maintenance Kit Page 27... - Page 28 Optional Extras Air Dryer Optional Extra If the generator has been fitted with the optional extra of an Air Dryer output, the HMI screens will have additional images; Home Screen The Home Screen will include this additional bar graph to show Dry Air output pres- sure.
-
Page 29: Peak Protected
Peak Protected With Peak Scientific you invest in not only a product but peace of mind. With a network of certified Peak engineers stationed throughout the globe, Peak’s rapid response team are never far away and our commitment is to keep your generator running day in, day out, protecting your laboratory workflow. -
Page 30: Cleaning
Cleaning Clean the outside of the generator only using warm soapy water and a clean damp cloth. Ensure all excess fluid is thoroughly removed from the cloth prior to use. Cleaning should only be undertaken with the power switched off and the power cord removed from the rear of the generator. -
Page 31: Troubleshooting
Troubleshooting Problem Possible Solution • Ensure power cord is plugged into the Generator and that the power socket is turned on. The Generator will not switch on and the • Check the fuse in the power cord plug. power switch does not illuminate. •... - Page 32 Important! You have 1 month to register your Peak Scientific product from the date of installation. Once registered the warranty will be honoured for a period of 12 months. If you wish to defer the installation of your generator, you must notify Peak Scientific immediately by emailing warranty@peakscientific.
- Page 33 Tel: +44 141 812 8100 Fax: +44 141 812 8200 For further information on any of our generator products please contact marketing@peakscientific.com Copyright © Peak Scientific Instruments Ltd 2021 — Infinity XE 60 Series User Manual Rev 3 RSID 4129 EN —28/09/2021...
