Reassembling the Appliance

To reassemble the appliance:
1. Install the cover:
a. Make sure all internal cables are routed correctly and connected, and no tools or extra parts
are left inside the system.
b. Align the tabs on the cover with the guide slots on the appliance.
c. Push the latch down.
d. Slide the cover forward.
The tabs on the cover should engage with the guide slots on the appliance.
The latch should lock into place.
e. Use a flat or Phillips head screwdriver to rotate the latch release lock clockwise to the locked
position.

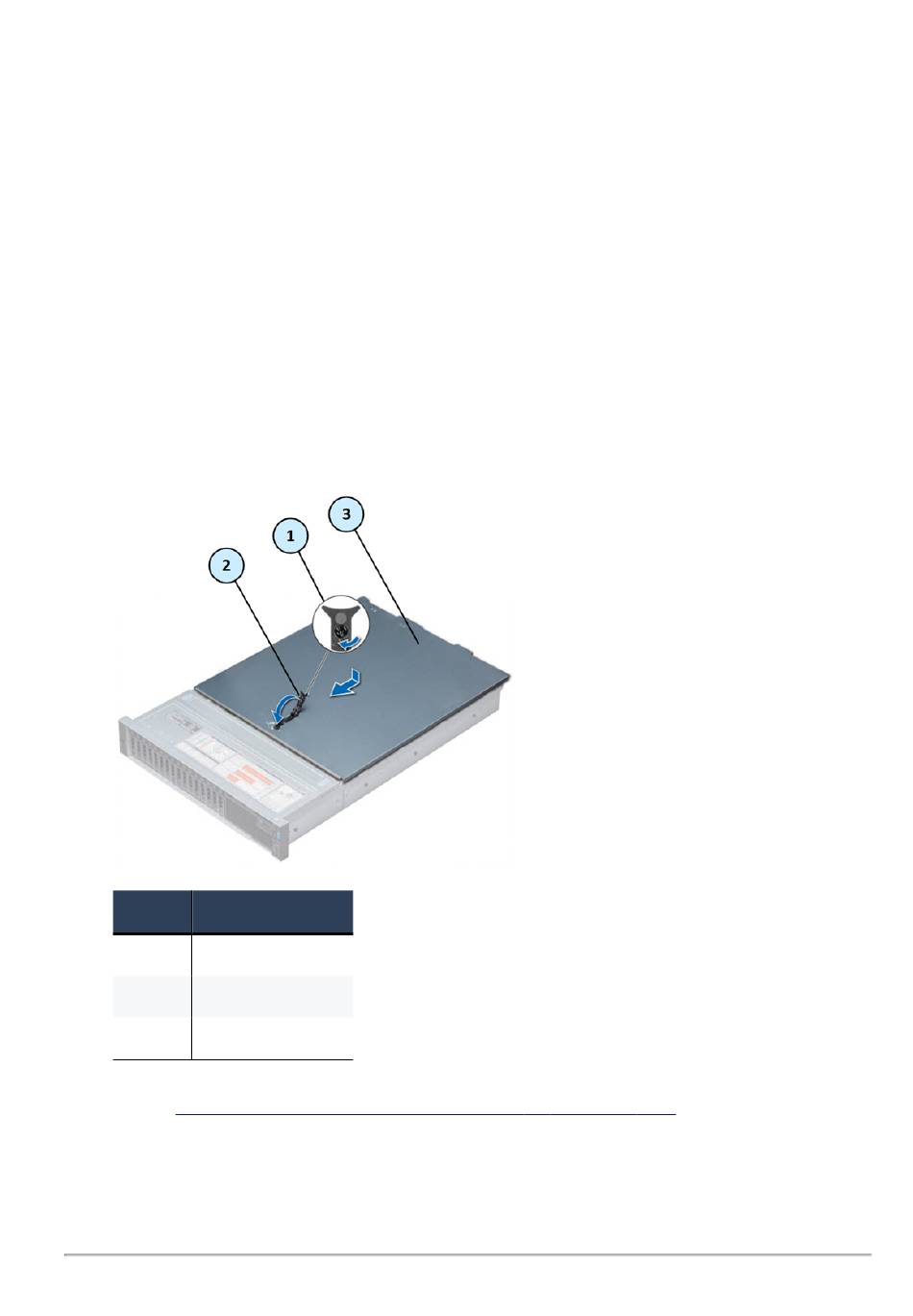

Item Description
1 Latch release lock
2 Latch
3 Cover
2. Install the appliance into the rack.
Installing the Quantum Smart-1 6000-L/6000-XL Telescopic Rails
See the
installation procedures.
Quantum Smart-1 600-M/6000-L/6000-XL Appliances Replacing Line Cards | 18
Procedure for Smart-1 6000-L/6000-XL Appliances
booklet for illustrated
