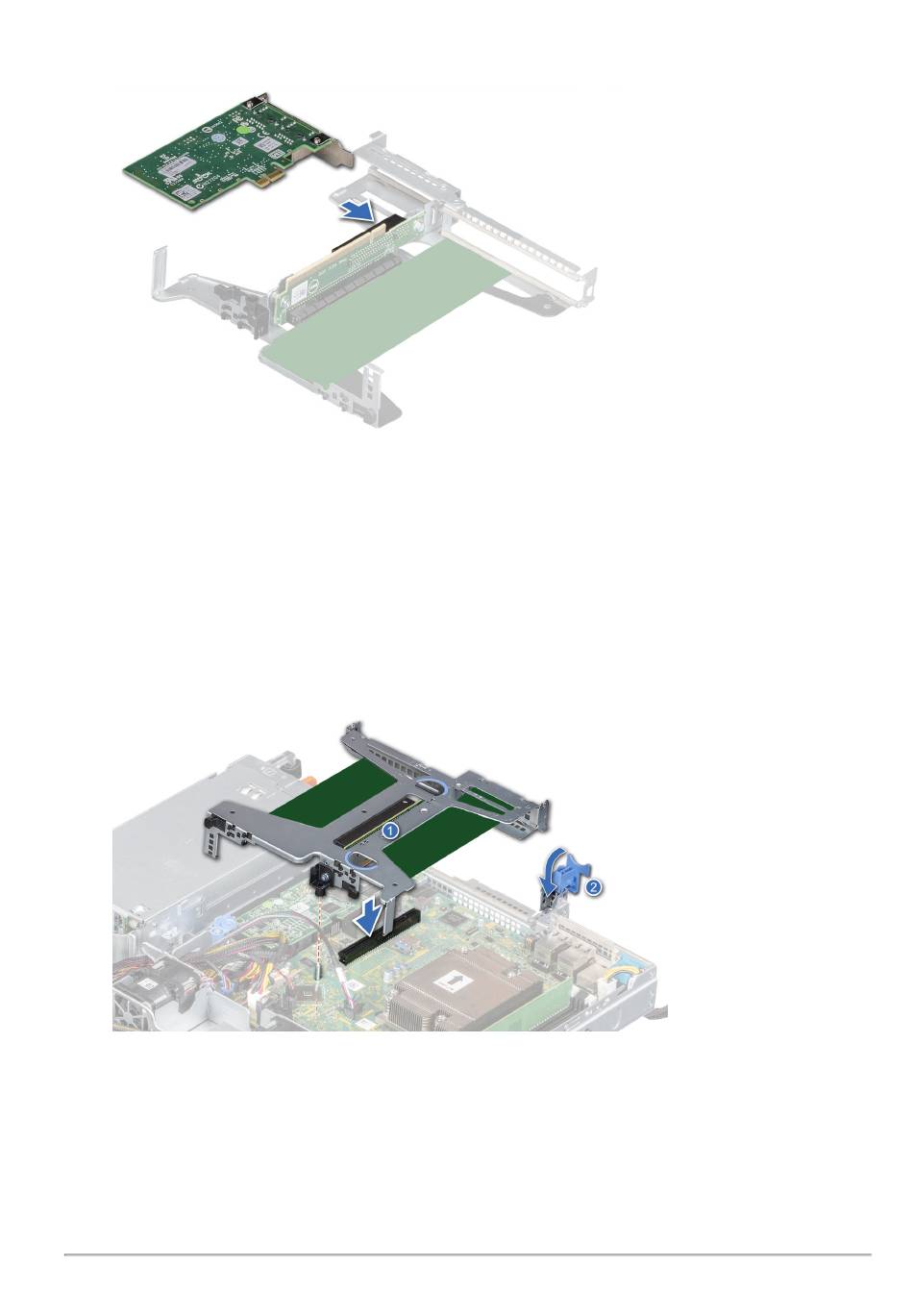

6. Insert the card connector into the riser connector until the card is firmly seated.
Installing the Riser
1. Open the riser latch.
2. Align the following:
a. Guide on the riser with the guide pin on the system board.
b. Riser connector with the connector on the system board.
3. Lower the riser until the riser is firmly seated in the connector on the system board.
4. Close the riser latch.
Reassembling the Appliance
Make sure that all internal cables are routed correctly and connected, and no tools or extra parts are left
inside the appliance.
Quantum Smart-1 600-M/6000-L/6000-XL Appliances Replacing Line Cards | 12
