EXFO FTB-2 Notice

N

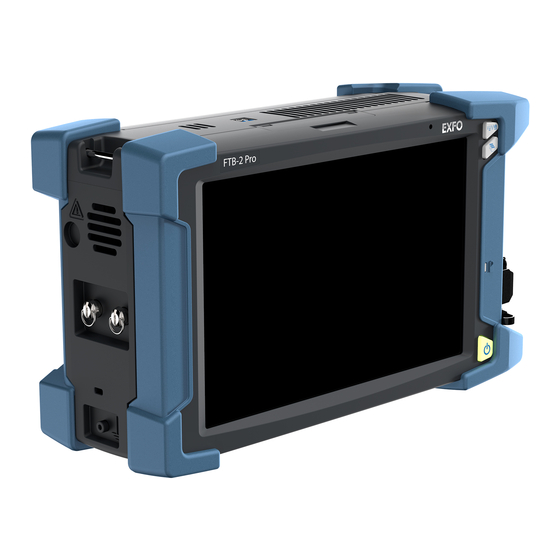

This information applies only to the
FTB-2/FTB-2 Pro and FTB-4 Pro units.
Note: This document is available in several languages at www.EXFO.com.
Installing the Carry Handle
In addition to the hand strap, you can install a carry handle on your unit.
Note: If you wish to use a shoulder strap (sold separately by EXFO), you must first
install the carry handle.
To install the carry handle:
1. Position the unit so that its front panel is facing you, and that you can
see its top panel.
Top panel
Metal rods for the installation of
2. Ensure that both ends of the carry handle are fully extended.

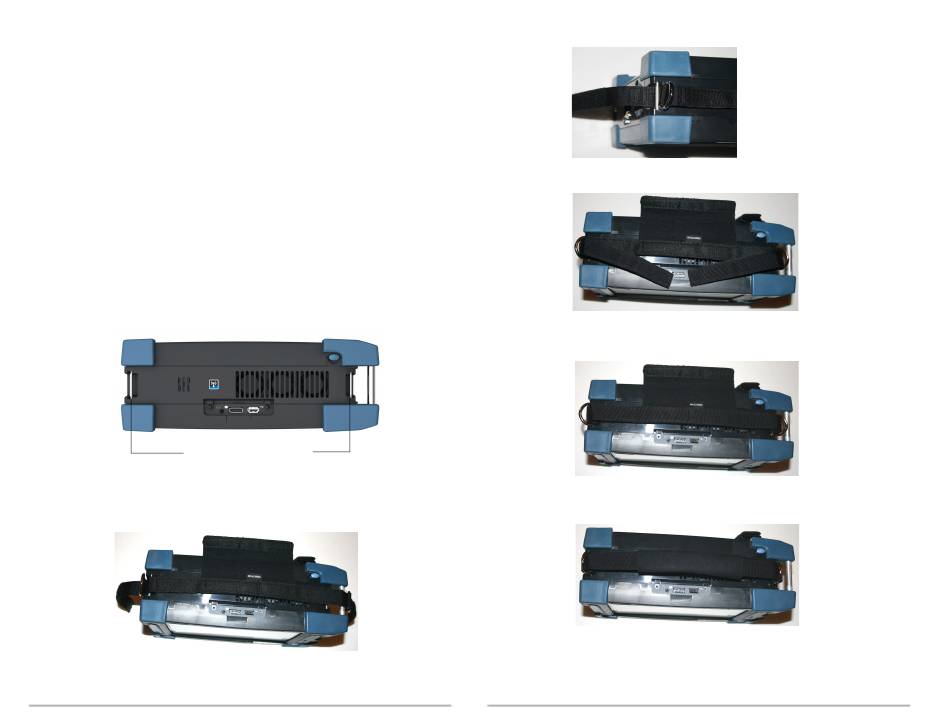

3. Place the handle flat on the top of your unit as shown below.
4. Slide each end of the handle under the corresponding metal rod.
P/N: 1070856
OTICE
the carry handle
April 2017
5. Pull on the straps until the base of each D-shaped metal ring rests on
the corresponding rod.
6. Slide the straps through the D-shaped rings.
7. Fold the Velcro straps towards the center. Both ends should meet
without any gap.
8. Fold the large part of the handle over the straps, and secure it in place
with the Velcro.
You are now ready to use the carry handle, or to attach a shoulder strap.
