EXFO FTB-2 Notice

N

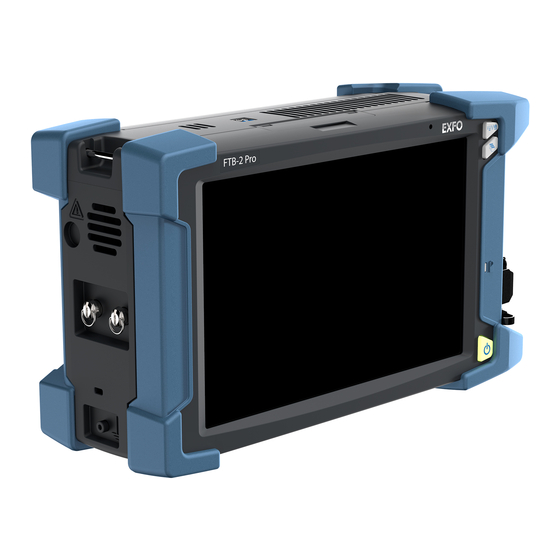

This information applies only to the
FTB-2/FTB-2 Pro and FTB-4 Pro units.
Note: This document is available in several languages at www.EXFO.com.
Securing the FTB Modules with the
Front Locking Screws
In addition to the built-in retaining screws, your unit comes with four front
locking screws (packaged separately) to secure the FTB modules properly
in your unit.
Note: The FTBx modules do not require these extra front locking screws.
Never insert or remove a module while the unit is turned on. This
will result in immediate and irreparable damage to both the
module and unit.
EXFO recommends that you use the front locking screws to secure
the FTB modules in your unit, especially when you work with
heavier modules such as the OSA, or the FTB-88100NGE
PowerBlazer.
P/N: 1070857
OTICE
C
AUTION
I
MPORTANT
April 2017
To secure the FTB module with the front locking screws:
1. If your unit is not already equipped with module adapters, you must
install such adapters before inserting FTB modules. For more
information, refer to the user guide or the online help of your unit.
2. Insert the FTB module in your unit. For more information, refer to the
user guide or the online help of your unit.
3. Insert a locking screw in one of the screw holes on the front of the unit.
4. Turn the screw clockwise until it makes contact with the faceplate of
the module.
5. Repeat steps 3 and 4 with the three remaining screws.
Note: To remove the screws, turn them counterclockwise.
1/2
P/N: 1070857

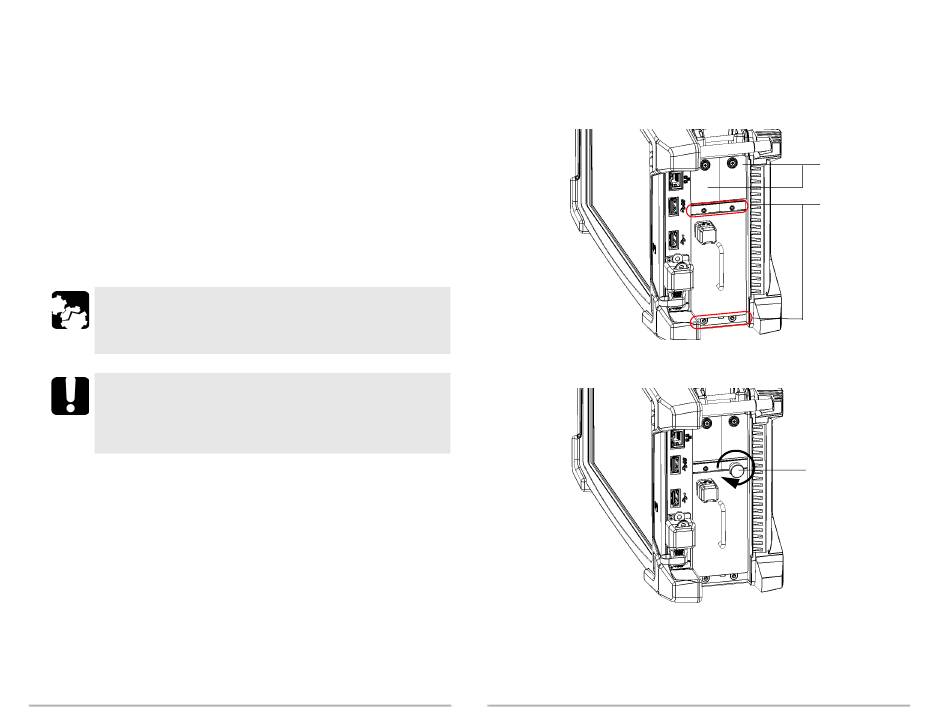

Adapters
for FTB modules
Screw holes
Turn locking screw
clockwise
April 2017
2/2
