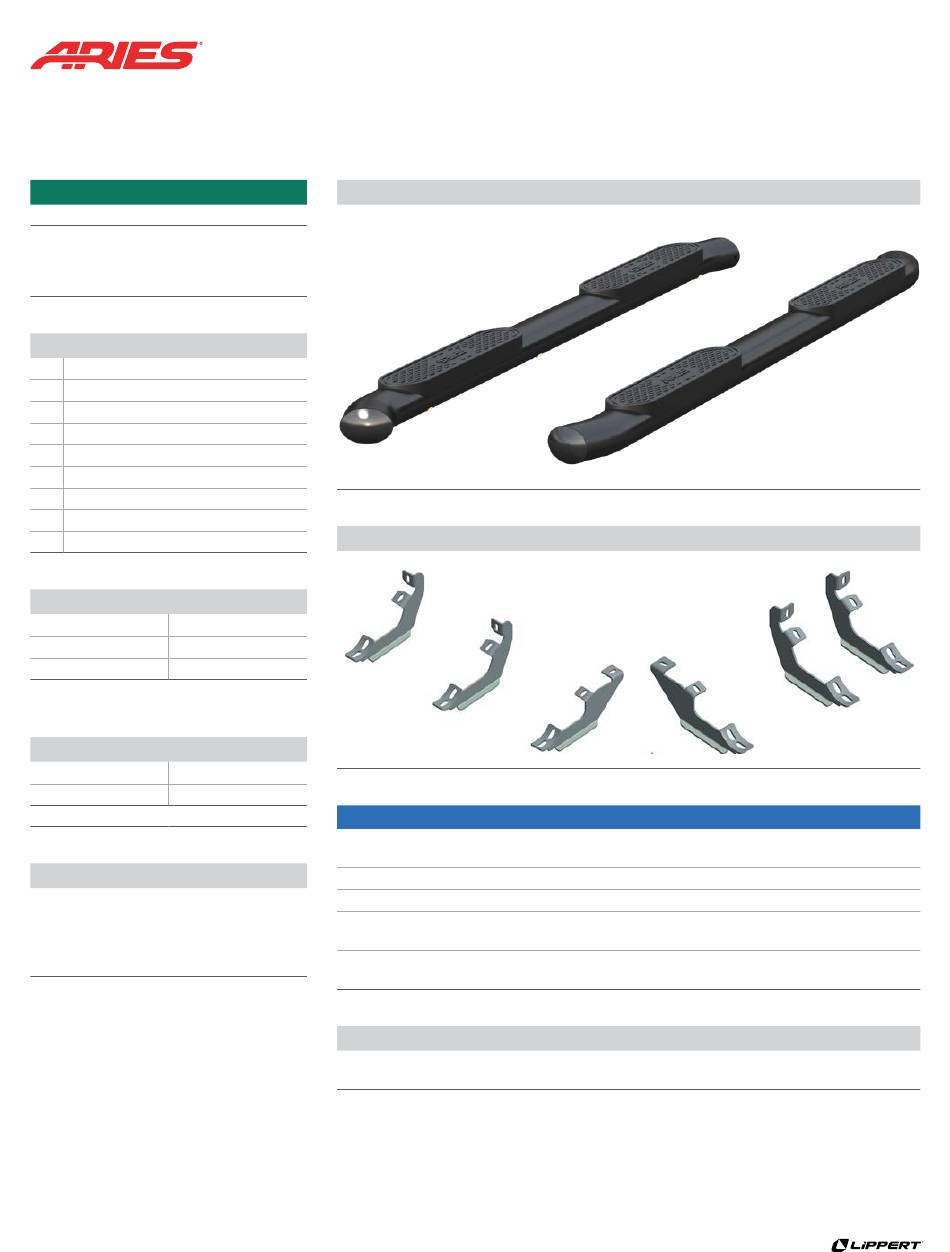

INSTALLATION MANUAL
Level of Difficulty
Easy
Installation difficulty levels are based on time
and effort involved and may vary depending on
the installer level of expertise, condition of the
vehicle and proper tools and equipment.
Parts List
Qty Description
1
Driver / left running board*
1
Passenger / right running board*
2
Mounting bracket, front
2
Mounting bracket, middle
2
Mounting bracket, rear
24
Hex bolts, M10
24
Lock washers, M10
24
Flat washers, M10
Tools Required
Socket, 13mm
Ratchet
Socket, 16mm
Torque wrench
Wrench, 16mm
Flathead screwdriver
Torque Specifications
M8 bolt
7 ft-lbs.
M10 bolt
16 ft-lbs.
Use above torque setting unless otherwise noted
Product Registration and Warranty
ARIES stands behind our products with
industry-leading warranties. To get copies
of the product warranties, register your
purchase or provide feedback, visit:
warranty.curtgroup.com/surveys
ARIESAUTOMOTIVE.COM

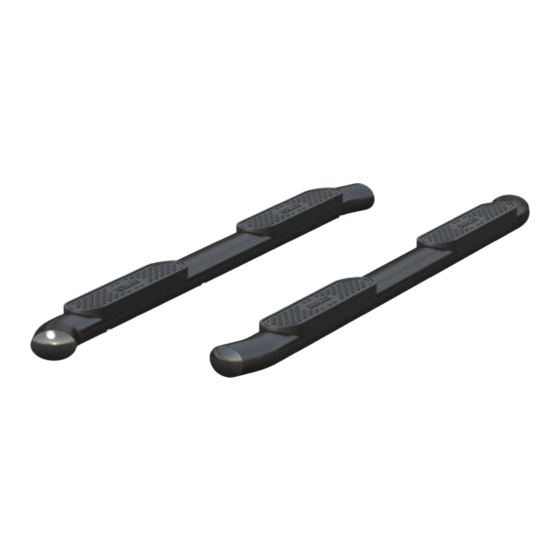

Product Photo
Brackets and Hardware
Rear
NOTICE
Visit www.ariesautomotive.com for a full-color copy of this
instruction manual, as well as helpful videos, guides and much more!
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
Periodic inspection of your product should be performed
to ensure all hardware and / or components remain secure.
To help prevent damage to the product or vehicle, refer to the specified
torque specifications when securing hardware during the installation process.
Maintenance
Mild automotive detergent may be used to clean the product. Do not use dish detergent, abrasive
cleaners, abrasive pads, wire brushes or other similar products that may damage the finish.
•
PRODUCT SUPPORT: 877.287.8634
Middle
Front
•
S224050-INS-RA
•
04/25/2023
S224050
Front
Front
10210
•
ECN
•
PAGE 1
Rear
Rear
Middle
Advertisement
Table of Contents
Related Manuals for Lippert ARIES S224050
Summary of Contents for Lippert ARIES S224050
- Page 1 INSTALLATION MANUAL S224050 Level of Difficulty Product Photo Easy Installation difficulty levels are based on time and effort involved and may vary depending on the installer level of expertise, condition of the vehicle and proper tools and equipment. Rear Parts List Qty Description Driver / left running board* Passenger / right running board*...
- Page 2 PROCEDURE: 1. REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION. 2. Starting from underneath the Passenger/Right body panel, locate the front mounting location and the threaded holes in the body panel, (Figure 1). Remove the plastic plugs covering the holes. 3.
- Page 3 Passenger/Right side Installation Pictured The Rear Brackets have a small hole in the back Front (Fig 3) Passenger/Right center mounting location (Fig 4) The Center and Rear Mounting Brackets are similar but are unique (2) 10mm Hex Bolts (2) 10mm Lock Washers (2) 10mm Flat Washers (Fig 5) Attach (1) Passenger/Right Center Mounting Bracket to the center location...
