3. INSTALLATION

• Embed the flush-mounting box Mod. 503 in the wall or the flush-mounting box Ø 60 at the height shown

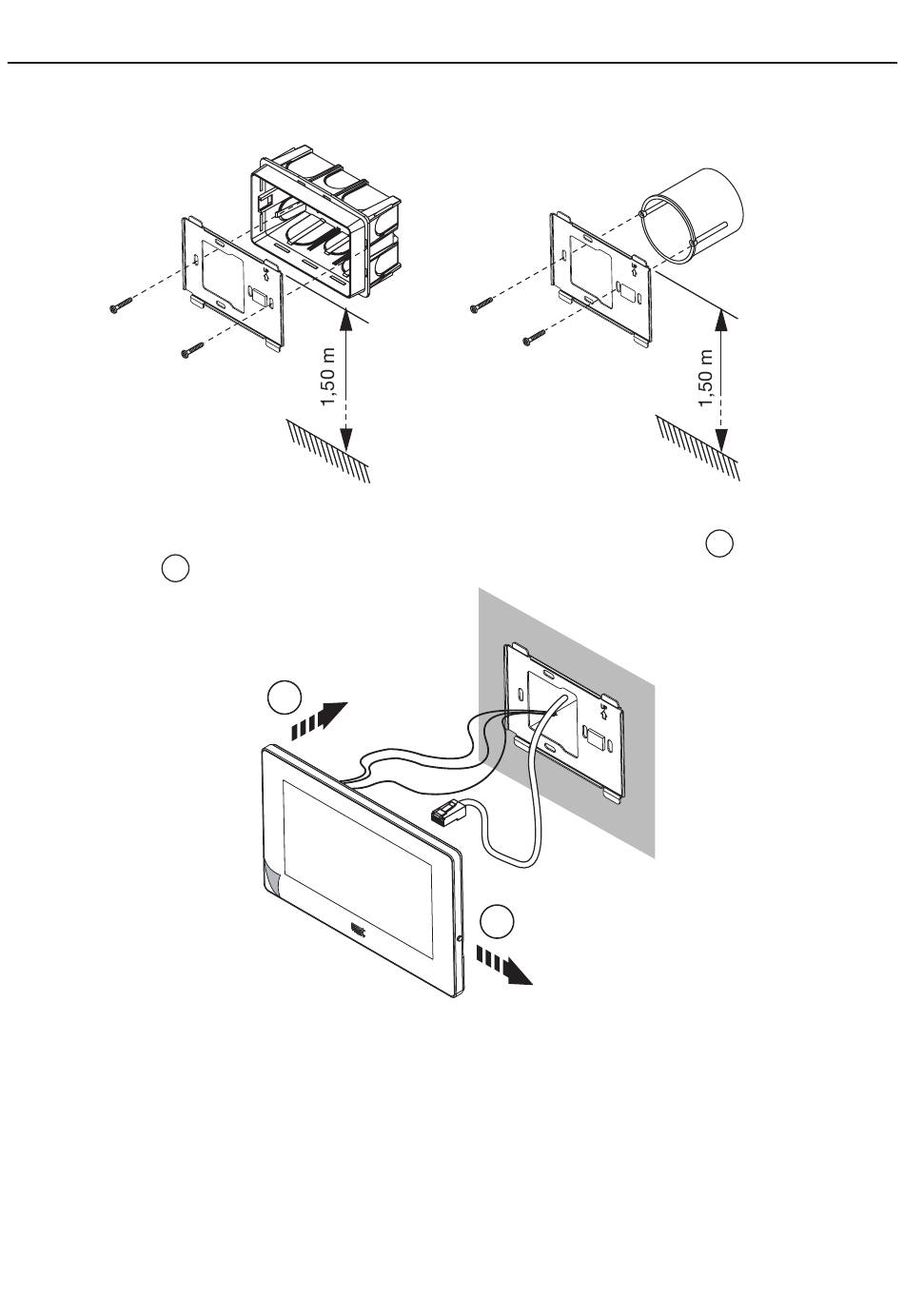

in the following drawing.
• Fix the bracket to the mounting box as indicated.
2 x M3.5 x 19 mm
provided
• Connect any panic function, additional ringtone and floor call leads to the connector wires.
• Move the video door phone close to the bracket by centring the special fixings 1 and slide it right to
reach its stop 2 (see the following image).
• Remove the protective film from the display.
DS1741-001
Box
503
1
2 x M3.5 x 19 mm
provided
2
Box
Ø 60 mm
