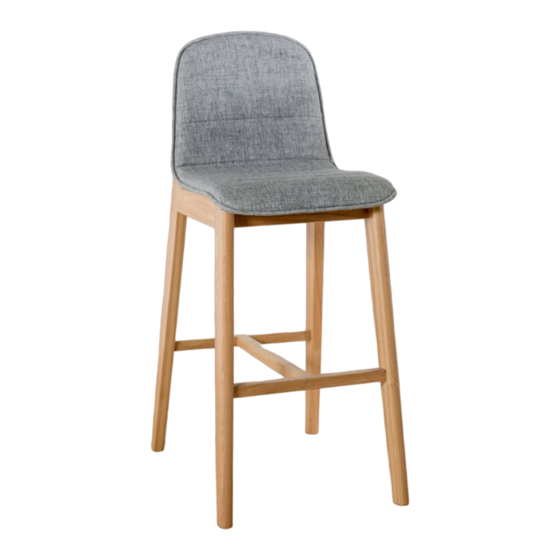

Vera Bar Stool
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.

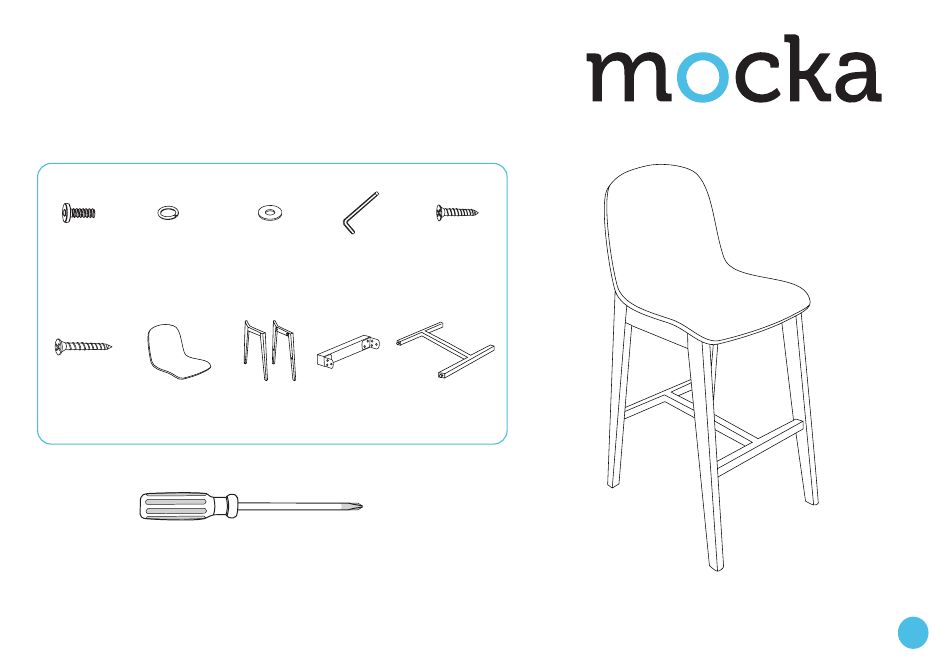

A
B
Bolt
Spring Washer
x12
x12
F
G
Large
Seat
Screw x4
x1
Phillips screwdriver
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558
C
D
Flat Washer
Allen Key
x12
x1
H
I
Legs
Frame
x2
x2
E
Small Screw
x12
J
Support
x1
1
Advertisement
Table of Contents
Related Manuals for Mocka Vera Bar Stool
Summary of Contents for Mocka Vera Bar Stool
- Page 1 Flat Washer Allen Key Small Screw Large Seat Legs Frame Support Screw x4 Phillips screwdriver For quicker assembly, we recommend the use of a power drill on a low-speed setting. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
- Page 2 2 x Frames (I) and secure with 12 x Bolts (A), 12 x Spring Washers (B) screwdriver. and 12 x Flat Washers (C). Tighten with an Allen Key (D). Tighten all of the pre-installed screws with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
- Page 3 Vera Bar Stool Assembly Instructions Attach 1 x Seat (G) and secure with 12 x Small Screws (E). Tighten with a screwdriver. You’re done, enjoy! mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
