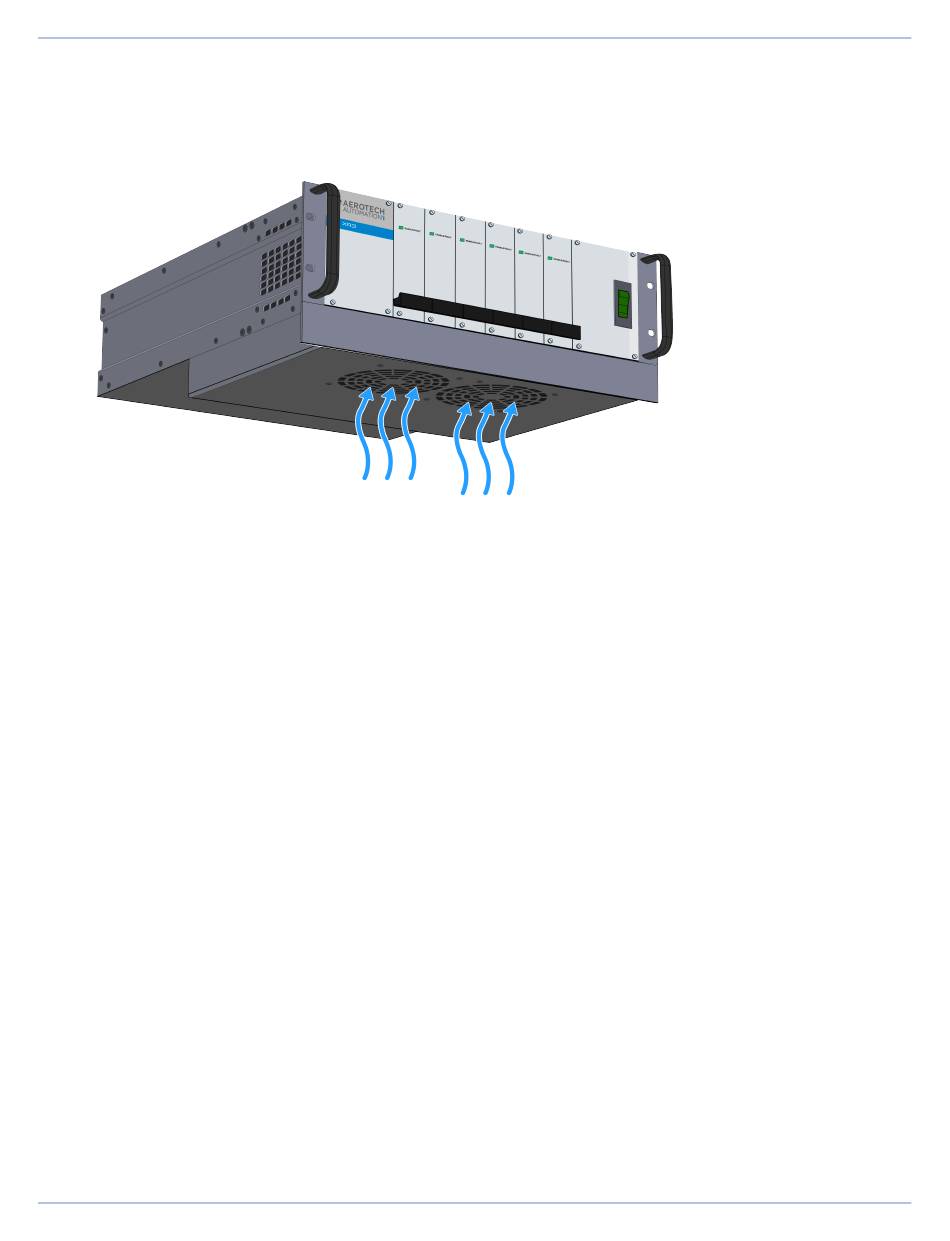

Figure 2-52: -C2 1U Fan Location And Air Flow - Aerotech Automation1 iXR3 Hardware Manual

iXR3/XR3 Hardware Manual
Fan Tray Option [-C2]
If you ordered the Fan Tray option, Aerotech will attach a 1U fan tray to the bottom of the chassis at
the factory. The tray houses two fans that will direct airflow through the drive rack from the bottom
to the top. Refer to
Figure 2-52: -C2 1U Fan Location and Air Flow
www.aerotech.com
Figure 2-52. For the dimensions, refer to
2.14. Cooling Options [-C0/-C1/-C2 Option]
