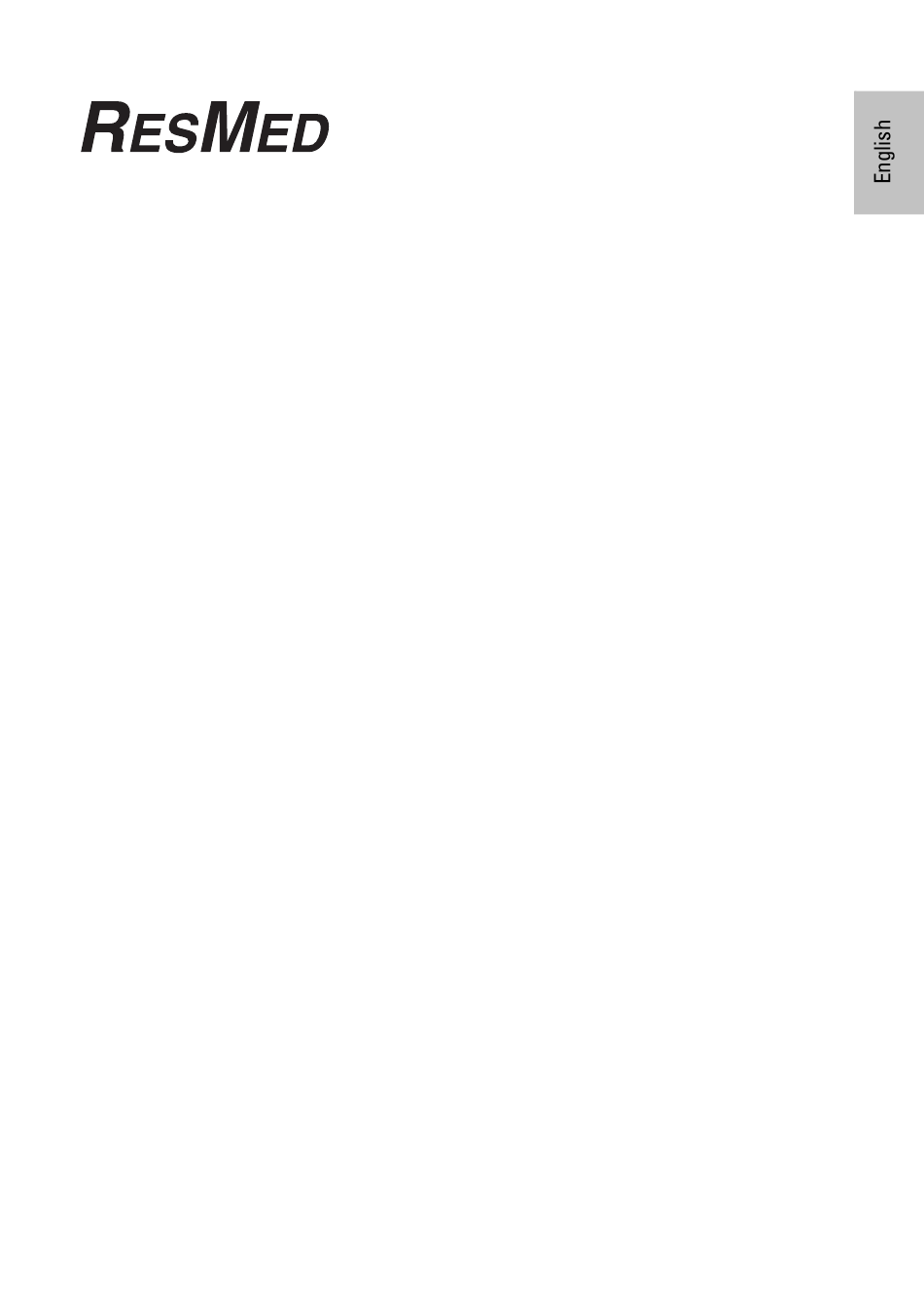

VPAP Malibu™
User Guide
English
268106-Eng/1 06 12
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VPAP Malibu and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ResMed VPAP Malibu

Summary of Contents for ResMed VPAP Malibu

  • Page 1 VPAP Malibu™ User Guide English 268106-Eng/1 06 12...

  • Page 2: Table Of Contents

    Stopping Treatment Using the Mask-Fitting Feature Using DC Power to Run the VPAP Malibu Helpful Hints ....... . 27...

  • Page 3: Introduction

    Introduction Definitions This guide contains special terms and icons that appear in the margins to draw your attention to specific and important information. WARNING Alerts you to possible injury. CAUTION Explains special measures for the safe and effective use of the device. Note: Is an informative or helpful note.

  • Page 5: Medical Information

    Discontinue therapy and seek medical advice if, during therapy or when you start therapy each night, you feel faint or light-headed. The following are general warnings that pertain to your use of a VPAP Malibu unit. Specific warnings appear next to the relevant instructions in this guide.
  • Page 6 • recommended by ResMed, or by your physician or respiratory therapist. A mask should not be used unless the VPAP Malibu unit is turned on and operating properly. The vent hole or holes associated with the mask should never be blocked.

  • Page 7: Cautions

    Repairs and internal servicing should only be performed by an authorized service agent. Possible Side Effects The VPAP Malibu flow generator is designed to help you have a good night’s sleep. However, you need to be aware of possible problems that may arise during CPAP or bilevel treatment.

  • Page 9: The Vpap Malibu System

    Air tubing Power cord Power cord clip 6’6" (2 m) Mask You will also need a ResMed mask system (supplied separately). The following ResMed mask systems are recommended for use with the VPAP Malibu: Nasal Masks Meridian™ Nasal Mask •...
  • Page 10 In VSet mode, only ResMed masks are compatible for use with the • VPAP Malibu. Your clinician needs to set up your VPAP Malibu for use with your particular • mask. Humidifier A humidifier may be required if you are experiencing dryness of the nose, throat, or mouth.

  • Page 11: Supplemental Oxygen

    Supplemental Oxygen The VPAP Malibu is designed to be compatible with the use of low flow oxygen therapy provided from an external source and supplied at a fixed rate of up to 15 L/min (S mode, CPAP mode) or 5 L/min (VSet mode). At a fixed flow rate of...

  • Page 13: Preparing For Use

    Ensure that the air filter and air filter cover are fitted at all times. Place the VPAP Malibu unit on a flat surface near the head of your bed. If the unit is placed on the floor, ensure that the area is free from dust and clear of bedding, clothes, or any other objects that could block the air inlet.
  • Page 14 AC power switch Locking clip AC power cord CAUTION Do not connect both AC and DC power cords to the VPAP Malibu at the same time. WARNING Make sure the power cord and plug are in good condition and the equipment is not damaged.
  • Page 15 Connect your mask system to the free end of the air tubing. The VPAP Malibu is now ready for use. To start treatment, see “Operating Instructions” on page 21. Preparing for Use...
  • Page 16 The VPAP Malibu is not compatible with external humidifiers. HumidAire 2i The HumidAire 2i attaches to the front of the VPAP Malibu to provide heated humidification. No other accessories are required for its use. The VPAP Malibu automatically detects the presence of the HumidAire 2i. No menu changes are required.
  • Page 17 LCD screen. Guiding text includes exit and cancel To assist you in adjusting the VPAP Malibu, the keypad and LCD are equipped with a backlight. The LCD backlight comes on when the unit is turned on or when you press a key, and turns off after two minutes.
  • Page 18 It also displays the number of days the VPAP Malibu was used out of the total number of days available for use. The SW screen displays the current software version that is installed in your VPAP Malibu.
  • Page 19 • The Exhalation screen is only available if enabled by a clinician. Menus with a Humidifier If the HumidAire 2i is connected to the VPAP Malibu, and treatment has not commenced, the VPAP Malibu will display one of the following screens:...
  • Page 20 Menus with a ResLink and Oximeter If your clinician has recommended that you use a ResLink module, and the ResLink and an oximeter are connected to the VPAP Malibu, then display of (oxygen saturation) and HR (heart rate) takes priority. If treatment has not...

  • Page 21: Operating Instructions

    Operating Instructions Starting Treatment The VPAP Malibu unit should be assembled beside your bed with the air tubing and mask system connected. See “Setting Up the VPAP Malibu” on page 13. Turn the main power switch at the back of the unit to on (I).
  • Page 22 Treatment mode: Mode of treatment set by your clinician. Options are: CPAP, S and VSet. Ramping indicator: (CPAP mode, S mode) Appears if the VPAP Malibu is in ramp mode. This disappears once the ramp time has elapsed. Settling indicator: (VSet mode) Appears if the VPAP Malibu is in settling mode.

  • Page 23: Stopping Treatment

    VPAP Malibu operating, select a settling time. The airflow will remain at Minimum Pressure for the period of time that you set, giving you time to fall asleep. After this time, the VPAP Malibu will be able to increase pressure in response to events The clinician will set a maximum settling time;...

  • Page 24: Using The Mask-Fitting Feature

    Using the Mask-Fitting Feature The VPAP Malibu Mask-Fitting feature can be used to help you fit your mask properly. The mask-fitting feature delivers air pressure for a three-minute period, prior to starting treatment, for checking and adjusting your mask fit to minimize leaks.

  • Page 25: Using Dc Power To Run The Vpap Malibu

    12V or 24V battery to be connected to the DC input of the VPAP Malibu. When using DC, power is turned on and off via the switch on the connector to the power source, not the power switch at the back of the VPAP Malibu.
  • Page 26 Traveling with the VPAP Malibu International Use Your VPAP Malibu flow generator has an internal power adapter that enables it to operate in other countries. It will operate on power supplies of 100–240V and 50–60Hz. No special adjustment is necessary, but you will require an approved...

  • Page 27: Cleaning And Maintenance

    Weekly 1. Remove the air tubing from the VPAP Malibu unit and the mask. 2. Wash the mask system according to the instructions supplied with it. 3. Wash the air tubing in warm water using mild detergent. Rinse thoroughly, hang and allow to dry.

  • Page 28: Replacing The Air Filter

    Inspect the air filter every month to check if it is blocked by dirt or contains holes. With normal use of a VPAP Malibu unit, the air filter needs to be replaced every six months (or more often if your unit is in a dusty environment). To replace the...
  • Page 29 If you feel that your unit is not performing properly, see “Troubleshooting” on page 31. CAUTION Inspection and repair should only be performed by an authorized agent. Under no circumstances should you attempt to service or repair the flow generator yourself. Cleaning and Maintenance...

  • Page 31: Troubleshooting

    Troubleshooting If there is a problem, try the following suggestions. If the problem cannot be solved, contact your equipment supplier or ResMed. Do not attempt to open the unit. Problem Possible Cause Solution No display. Power not connected or Ensure the power cable is switch at back is not on.
  • Page 32 Air tubing not connected properly. Connect firmly at both ends. Air tubing kinked or punctured. Straighten or replace. VPAP Malibu unit does Mask Alarm has been Disable Mask Alarm to not stop when you enabled; SmartStop has enable SmartStop. remove your mask.
  • Page 33 Problem Possible Cause Solution Displays error Component failure. Return your VPAP Malibu message: for servicing. SYSTEM ERROR Call service! Excessive motor noise. Component failure. Return your unit for servicing. Troubleshooting...

  • Page 35: Technical Specifications

    Technical Specifications Performance Operating pressure range: 3 to 25 cm H Maximum single fault pressure: 40 cm H Pressure measurement tolerance: ±0.5 cm H O + 4% of the measured reading Flow measurement tolerance: ±0.2 L/s Dynamic pressure characteristics VSet mode: 4 to 25 cm H O (measured at the end of standard 6’6"...
  • Page 36 Table 2: Displayed values Value Range Accuracy Display Resolution Pressure sensor at air outlet Pressure -5 to 30 cm H ±0.5 cm H 0.1 cm H Flow sensor in flow generator* Leak 0–120 L/min 1 L/min Tidal volume 100–3000 mL 1 mL Respiratory rate 6–60 BPM...
  • Page 37 Guidance and manufacturer’s declaration – electromagnetic emissions The VPAP Malibu is intended for use in the electromagnetic environment specified below. The customer or the user of the VPAP Malibu should assure that it is used in such an environment. Electromagnetic environment -...
  • Page 38 Guidance and manufacturer’s declaration – electromagnetic immunity The VPAP Malibu is intended for use in the electromagnetic environment specified below. The customer or the user of the VPAP Malibu should assure that it is used in such an environment. Electromagnetic...
  • Page 39 If the measured field strength in the location in which the VPAP Malibu is used exceeds the applicable RF compliance level above, the VPAP Malibu should be observed to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as reorienting or relocating the VPAP Malibu.
  • Page 40 Recommended separation distances between portable and mobile RF communications equipment and the VPAP Malibu The VPAP Malibu is intended for use in an environment in which radiated RF disturbances are controlled. The customer or the user of the VPAP Malibu can help prevent electromagnetic interference by maintaining...

  • Page 41: Limited Warranty

    ResMed shall not be responsible for any incidental or consequential damages claimed to have occurred as a result of the sale, installation or use of any ResMed product. Some regions or states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation may not apply to you.

  • Page 43: Index

    Periodic cleaning 27 Electromagnetic emissions and immunity Preparing for use 13 Error messages 32 Ramp screen 18 Features of the VPAP Malibu 17 Ramp time 18 Filter 28 Replacing the air filter 28 Flow characteristics 35 Replacing the antibacterial filter 28...
  • Page 44 Technical specifications 35 Traveling 26 Troubleshooting 31 Up/Down key 17 Used (time) screen 18 User/owner responsibility 3 Using the Mask-Fitting feature 24 Using the menus 18 Warnings related to treatment 7 Warranty 41 Weekly cleaning 27...
