ResMed VPAP ST User Manual
Noninvasive ventilator
Hide thumbs
Also See for VPAP ST:
- Information manual (119 pages) ,
- Welcome manual (82 pages) ,
- Clinical manual (41 pages)
Subscribe to Our Youtube Channel
Related Manuals for ResMed VPAP ST
Summary of Contents for ResMed VPAP ST
- Page 1 VPAP ™ NONINVASIVE VENTILATOR User Guide English Respiratory Care Solutions Making quality of care easy...
- Page 2 Respiratory Care Solutions Making quality of care easy...
- Page 3 English Indications for use The VPAP ST is indicated to provide noninvasive ventilation for patients weighing more than 13 kg or more than 30 kg in iVAPS mode with respiratory insufficiency or obstructive sleep apnoea (OSA). The VPAP ST is intended for home and hospital use.

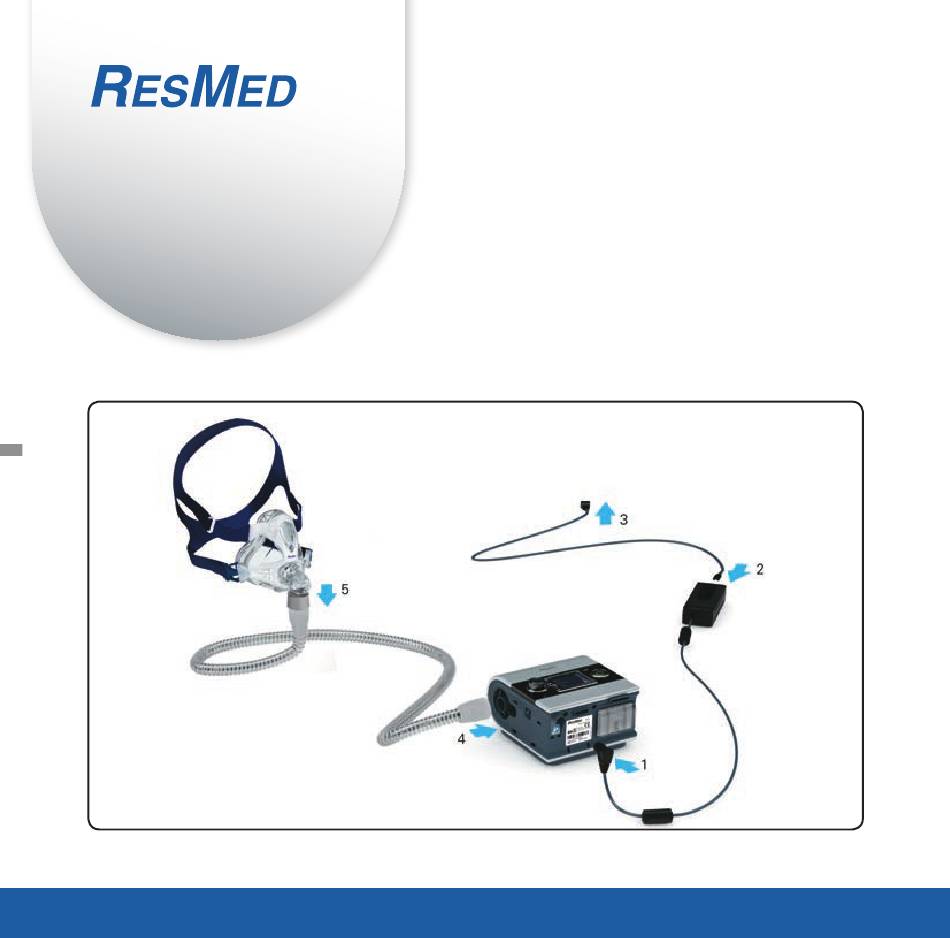

- Page 4 Setup Refer to illustration A. Connect the DC plug of the power supply unit to the rear of the device. Connect the power cord to the power supply unit. Plug the other end of the power cord into the power outlet. Connect one end of the air tubing firmly onto the air outlet.
- Page 5 Remove the air filter cover from the back of the device. Remove and discard the old air filter. Insert a new ResMed air filter ensuring that it is sitting flat in the air filter cover. Replace the air filter cover.
- Page 6 Please retain the S9 SD Card Protective Folder for future use. Troubleshooting If there is a problem, try the following suggestions. If the problem cannot be solved, contact your equipment supplier or ResMed. Do not attempt to open the device enclosure. Problem/Possible cause Solution No display Power is not connected.
- Page 7 SmartStart/Stop is enabled but the device does not stop automatically when you remove your mask Incompatible mask system Only use equipment recommended by ResMed. being used. Incorrect mask setting being Check the selected mask type in the Setup menu. Change it if used.
- Page 8 Turn the humidity level setting down and empty the water from the air tubing. high, resulting in accumulation of water in the air tubing. Check ResMed 30/90W Power Supply Unit and fully insert the connector Displays message: The DC plug is partially inserted Fully insert the DC plug.
- Page 9 Problem/Possible cause Solution No tube, please check your tube is connected Displays message: Flow is high because air tubing Connect the air tubing firmly at both ends. is not connected properly. Note: The tube disconnection check may not operate when an antibacterial filter is used.
- Page 10 It is recommended that mobile communication devices are kept at least 1 m away from the device. Information regarding the electromagnetic emissions and immunity of this ResMed device can be found on www.resmed.com, on the Products page under Service and Support. Click on the PDF file for your language. IEC 60601-1...
- Page 11 VPAP ST technical specifications Mode pressure CPAP mode ranges Set Pressure: 4–20 cm H S, ST, T and PAC modes IPAP: 4–25 cm H O; EPAP: 2–25 cm H iVAPS mode PS: 0–23 cm H O; EPAP: 2–25 cm H...
- Page 12 Air tubing technical specifications Air tubing Material Length Inner diameter ClimateLine heated air tubing Flexible plastic and electrical 15 mm components Flexible plastic and electrical 1.9 m 19 mm ClimateLine heated air components tubing SlimLine air tubing Flexible plastic 1.8 m 15 mm Standard air tubing...
- Page 13 8. Inlet filter Flow (maximum) at set pressures The following are measured at the end of the specified air tubing: Pressure, cm H VPAP ST and VPAP ST, H5i and VPAP ST and VPAP ST, H5i and Standard, L/min Standard, L/min...
- Page 14 Accuracy may be reduced by the presence of leaks, supplemental oxygen, tidal volumes <100 mL or minute ventilation <3 L/min. c. Measurement accuracy verified as per EN ISO 10651-6:2009 for Home Care Ventilatory Support Devices (Figure 101 and Table 101) using nominal ResMed mask vent flows.
- Page 15 Maximum dynamic pressure variation according to EN ISO 17510-1:2009 Pressure (cm H 10 BPM 15 BPM 20 BPM VPAP ST and Standard air tubing without H5i / VPAP ST and Standard air tubing with H5i 0.18 / 0.18 0.30 / 0.30 0.51 / 0.51 0.21 / 0.20...
-
Page 16: Environmental Information
Servicing The VPAP ST device is intended to provide safe and reliable operation when operated in accordance with the instructions provided by ResMed. ResMed recommends that the VPAP ST device be inspected and serviced by an authorised ResMed Service Centre if there is any sign of wear or concern with device function. - Page 17 Portable diagnostic/screening devices This warranty is only available to the initial consumer. It is not transferable. If the product fails under conditions of normal use, ResMed will repair or replace, at its option, the defective product or any of its components.
- Page 18 If you notice any unexplained changes in the performance of the device, if it is making unusual or harsh sounds, if the device or the power supply are dropped or mishandled, if water is spilled into the enclosure, or if the enclosure is broken, discontinue use and contact your ResMed Service Center.
- Page 19 Only use the ResMed 90W or 30W power supply unit. Use the 90W power supply unit to power the system comprising the device, H5i, air tubing, DC/DC converter and battery pack. The 30W power supply unit is designed to power the device only and recommended for travelling.
- Page 20 Respiratory Care Solutions Making quality of care easy...
- Page 21 Oxfordshire OX14 4RY UK. See www.resmed.com for other ResMed locations worldwide. For patent information, see www.resmed.com/ip. S9, H5i, ClimateLine, SlimLine, SmartStart and VPAP are trademarks of ResMed Pty Ltd and S9, ClimateLine, SlimLine, SmartStart and VPAP are registered in U.S. Patent and Trademark Office. © 2013 ResMed.
