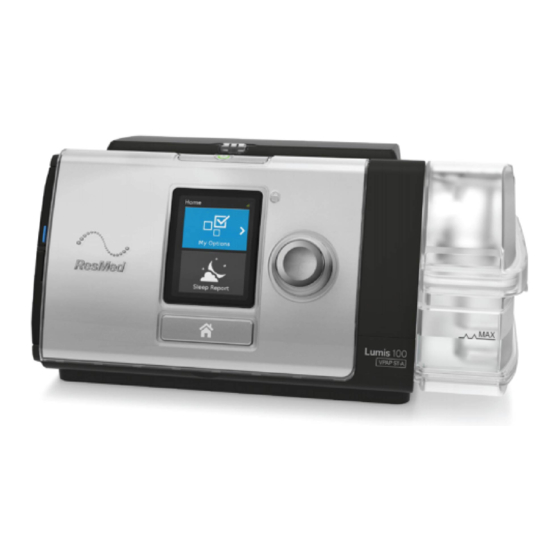

Summary of Contents for ResMed Lumis 100 VPAP S

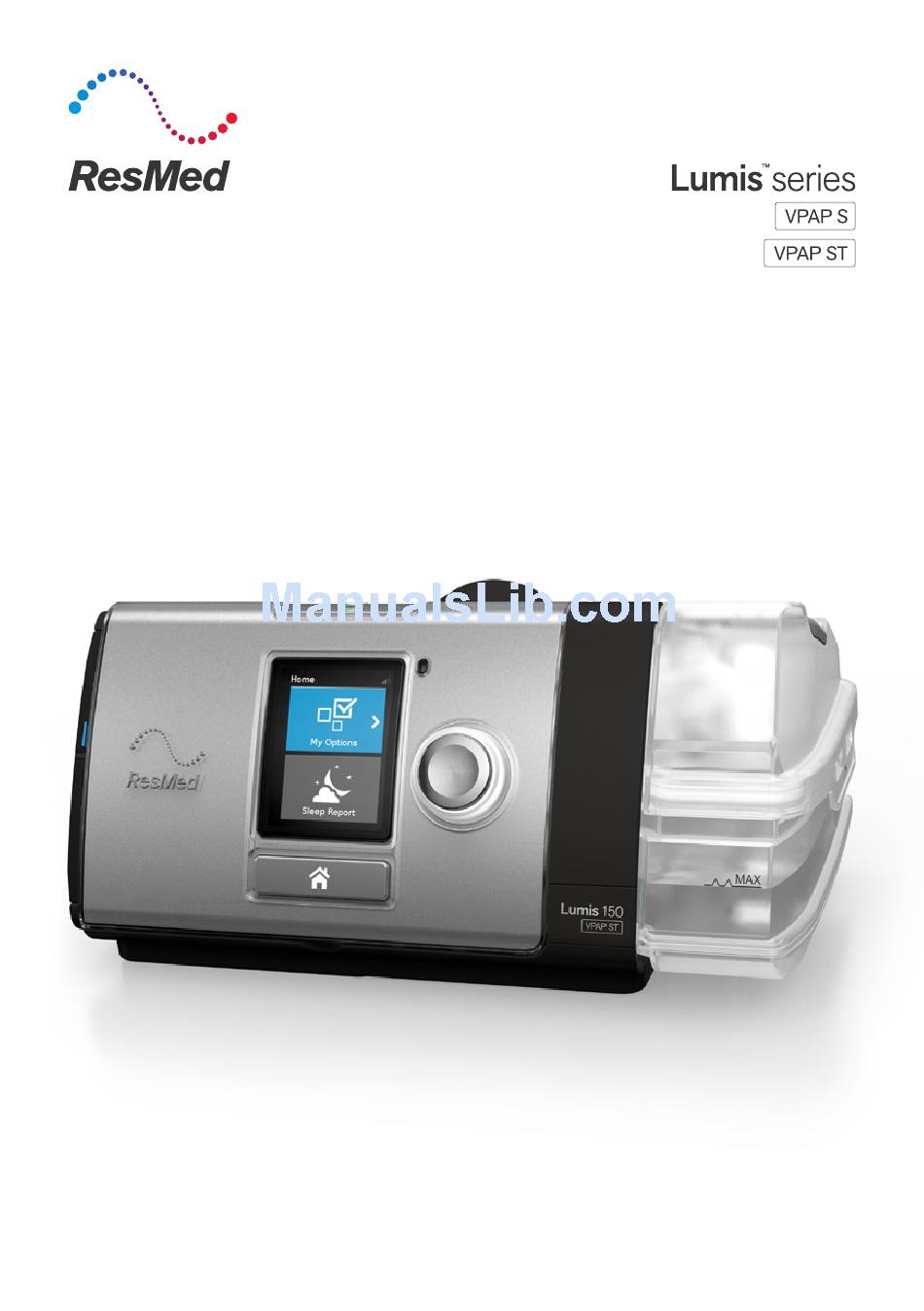

  • Page 1 User guide English...
  • Page 2: Indications For Use

    Indications for use Lumis 100 VPAP S The Lumis 100 VPAP S device is indicated to provide non-invasive ventilation for patients weighing more than 13 kg with respiratory insufficiency or obstructive sleep apnoea (OSA). It is intended for home and hospital use.
  • Page 3: Adverse Effects

    Adverse effects You should report unusual chest pain, severe headache, or increased breathlessness to your prescribing physician. An acute upper respiratory tract infection may require temporary discontinuation of treatment. The following side effects may arise during the course of therapy with the device: •...
  • Page 4: About Your Device

    About your device Air outlet HumidAir humidifier Air filter cover Screen Retention clip Adapter cover Power inlet SD card cover Serial number and device number About the control panel Press to start/stop therapy. Start/Stop button Press and hold for three seconds to enter power save mode.
  • Page 5 5. Close the humidifier and insert it into the side of the device. 6. Connect the free end of the air tubing firmly onto the assembled mask. See the mask user guide for detailed information. Recommended masks are available on www.resmed.com.
  • Page 6: Starting Therapy

    Starting therapy 1. Fit your mask. 2. Press Start/Stop or breathe normally if SmartStart ™ is enabled. You will know that therapy is on when the Monitoring screen is displayed. The pressure bar shows the inspiratory and expiratory pressures in green. The green bar will expand and contract as you breathe in and out.
  • Page 7: Power Save Mode

    Power save mode Your Lumis device records your therapy data. In order to allow it to transmit the data to your care provider, you should not unplug the device. However, you can put it into power save mode to save electricity.
  • Page 8: Humidity Level

    Ramp Down Ramp Down is intended to make stopping therapy more comfortable by reducing your pressure over a fixed 15 minute period. This option is only available if enabled by your care provider. To turn on Ramp Down: 1. In My Options, turn the dial to highlight Ramp Down and then press the dial.
  • Page 9: More Options

    Mask Fit Mask Fit is designed to help you assess and identify possible air leaks around your mask. To check Mask Fit: 1. Fit the mask as described in the mask user guide. 2. In My Options, turn the dial to highlight Run Mask Fit and then press the dial.
  • Page 10: Caring For Your Device

    Caring for your device It is important that you regularly clean your Lumis device to make sure you receive optimal therapy. The following sections will help you with disassembling, cleaning, checking and reassembling your device. Disassembling 1. Hold the humidifier at the top and bottom, press it gently and pull it away from the device. 2.
  • Page 11 Checking You should regularly check the humidifier, air tubing and the air filter for any damage. 1. Check the humidifier: • Replace it if it is leaking or has become cracked, cloudy or pitted. • Replace it if the seal is cracked or torn. •...
  • Page 12: Therapy Data

    Therapy data Your Lumis device records your therapy data for you and your care provider so they can view and make changes to your therapy if required. The data is recorded and then transferred to your care provider wirelessly or via an SD card. Data transmission Your Lumis device has the capability of wireless communication so that your therapy data can be transmitted to your care provider to improve the quality of your treatment.
  • Page 13: Travelling By Plane

    You can use your Lumis device on a plane as it meets the Federal Aviation Administration (FAA) requirements. Air travel compliance letters can be downloaded and printed from www.resmed.com. When using the device on a plane: •...
  • Page 14: General Troubleshooting

    Troubleshooting If you have any problems, have a look at the following troubleshooting topics. If you are not able to fix the problem, contact your care provider or ResMed. Do not try to open the device. General troubleshooting Problem/possible cause...
  • Page 15: Device Messages

    Problem/possible cause Solution My humidifier is leaking Humidifier may not be assembled correctly. Check for damage and reassemble the humidifier correctly. Humidifier may be damaged or cracked. Contact your care provider for a replacement. My therapy data has not been sent to my care provider Power may not be connected.
  • Page 16 Device message/possible cause Solution SD card error, remove your card and press Start to begin therapy SD card may not be inserted correctly. Remove and reinsert the SD card. Read only card, please remove, unlock and re-insert SD card SD card switch may be in the lock (read-only) position. Move the switch on the SD Card from the lock position the unlock position and then re-insert it.
  • Page 17: General Warnings And Cautions

    CAUTION • Use only ResMed parts and accessories with the device. Non-ResMed parts may reduce the effectiveness of the treatment and/or damage the device. • Use only vented masks recommended by ResMed or by the prescribing doctor with this device.
  • Page 18: Technical Specifications

    It is recommended that mobile communication devices are kept at least 1 m away from the device. Information regarding the electromagnetic emissions and immunity of this ResMed device can be found on www.resmed.com, on the Products page under Service and Support.
  • Page 19 Declaration of Conformity (DoC to the R&TTE Directive) - ResMed declares that the Lumis device is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. A copy of the declaration of conformity (DoC) can be found on www.ResMed.com/ProductSupport.
  • Page 20: Humidifier Performance

    Supplemental oxygen Maximum flow: 15 L/min (S, ST, T, PAC, CPAP), 4 L/min (iVAPS) Pneumatic flow path 1. Flow sensor 2. Blower 3. Pressure sensor 4. Mask 5. Air tubing 6. Humidifier 7. Device 8. Inlet filter Design life Device, power supply unit: 5 years Cleanable humidifier: 2.5 years...
  • Page 21: Displayed Values

    Accuracy may be reduced by the presence of leaks, supplemental oxygen, tidal volumes <100 mL or minute ventilation <3 L/min. Measurement accuracy verified as per ISO 10651-6:2004 for Home Care Ventilatory Support Devices (Figure 101 and Table 101) using nominal ResMed mask vent flows. Pressure accuracy...
  • Page 22: Environmental Information

    ResMed. ResMed recommends that the Lumis device be inspected and serviced by an authorised ResMed Service Centre if there is any sign of wear or concern with device function. Otherwise, service and inspection of the products generally should not be required during their design life.
  • Page 23: Further Information

    • Portable diagnostic/screening devices This warranty is only available to the initial consumer. It is not transferable. If the product fails under conditions of normal use, ResMed will repair or replace, at its option, the defective product or any of its components.
  • Page 24 ResMed (UK) Ltd 96 Jubilee Ave Milton Park Abingdon Oxfordshire OX14 4RW UK See www.resmed.com for other ResMed locations worldwide. For patent and other intellectual property information, see www.resmed.com/ip. Air10, Lumis, ClimateLine, SlimLine, HumidAir, SmartStart and VPAP are trademarks of ResMed Ltd. ClimateLine, SlimLine, SmartStart and VPAP are registered in U.S.
