Wallmount Method
1. Place all cords in the recessed area
above the modular jacks as shown in
previous example.

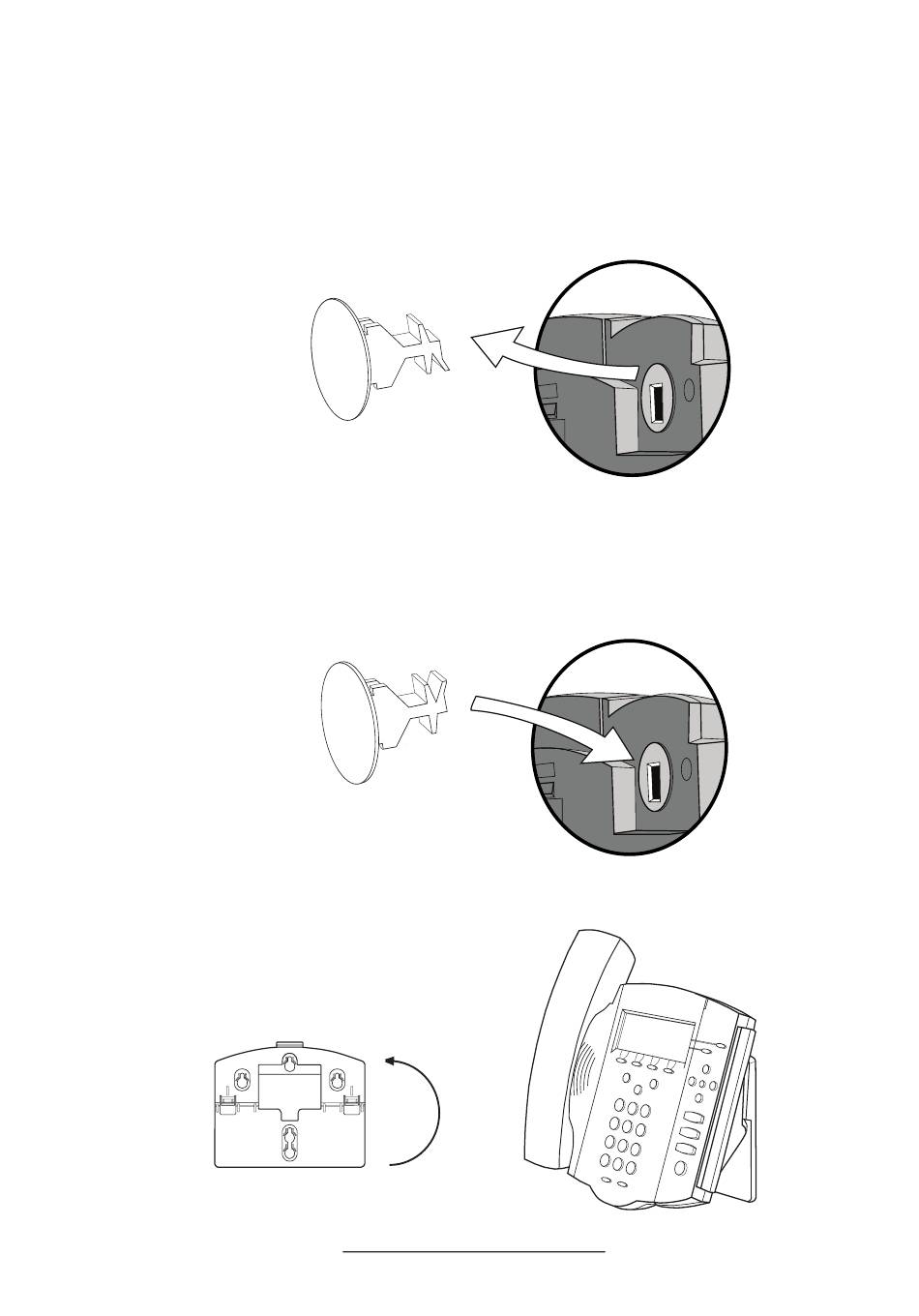

2. On the back of the phone, remove
the key located behind the hook-
switch. (See below.)
3. Reposition it so that the end tab
(at 45º angle) is facing up. (See
below.) This will ensure that the
handset remains in place within the
cradle in this position.
4. With mounting tab of the base
unit facing up, fasten the base unit
to wall using wall anchors (not
included). Snap the SoundPoint
IP 430 into place.
®
