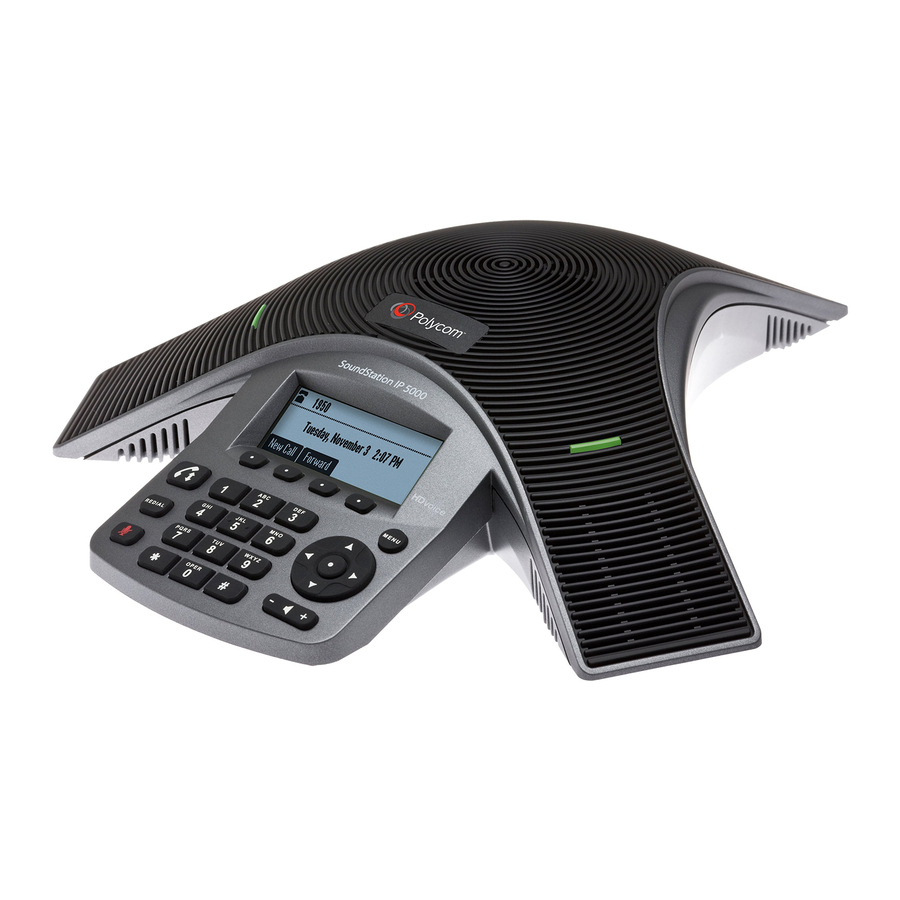

Polycom IP 5000 User Manual
  1. Manuals
  2. Brands
  3. Polycom Manuals
  4. Telephone
  5. SoundStation IP 5000
  6. User manual

Polycom IP 5000 User Manual

Hide thumbs Also See for IP 5000:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
Home
PBXware
SERVERware
TELCOware
SIPmon
SIPProt
Desktop & Mobile
UADs
Appliances
From Bicom Systems Wiki
PLEASE NOTE!!! THIS USER MANUAL IS NOT READY - WORK IN PROGRESS!!!
Contents
1 Introduction
Introduction

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IP 5000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Polycom IP 5000

Summary of Contents for Polycom IP 5000

  • Page 1: Table Of Contents

    Home PBXware SERVERware TELCOware SIPmon SIPProt Desktop & Mobile UADs Appliances From Bicom Systems Wiki PLEASE NOTE!!! THIS USER MANUAL IS NOT READY - WORK IN PROGRESS!!! Contents 1 Introduction 2 Requirements 2.1 Identifying phone model 2.2 Phone firmware 2.3 DHCP server 2.4 PBXware version 3 Installation 3.1 Power adapter...

  • Page 2: Requirements

    This User Guide is written as general guide on how to set up the Polycom phone model: IP 5000 PBXware 3.1. Requirements Identifying phone model To start and successfully complete registration of your Polycom phone you need to know which phone model you will setup.

  • Page 3: Installation

    About. On the top of "About" page is a code similar to this one "PBXware Edition: Business, Release: 3.1 (041373f), Running: 1.4.24-gc-75ee203", where "Release" denotes the exact version of your PBXware. Installation This chapter describes how to install and connect the phone to the electrical power and data network as well as how to apply factory settings.

  • Page 4: Registering Phone

    Go to Reset To Factory and press select button. Registering phone This chapter describes how to identify Polycom phone model, requirements that must be met and how to register the phone using manual configuration or auto provisioning. The following topics are covered:...
  • Page 5 Make sure Polycom UAD is enabled. To check the UAD status click on the edit icon corresponding to your Polycom phone. Make sure Status is set to Active, Auto provisioning is set to No, and DHCP is set to Yes.
  • Page 6 - DNS SRV Registering your device A) Line configuration from devices web interface To access web interface of your Polycom phone first you must now it's IP address on your network. You can find this information on your device under: Press the Menu button.
  • Page 7 Go to Address and enter PBXware extension number. Example: 1003. Go to Server 1 and press Select button. Press Edit button to edit Address line and enter PBXware IP address. Example 192.168.1.10. Then press the Ok button. Press the Back button. Go to Authentication and press Select button.

  • Page 8: Auto Provisioning

    Press Select button to enter Admin Settings. Go to Line Configuration and press Select button. Go to Line 1 and press Select button. Go to Server 1 and press Select button. Press Edit button to edit Address line and enter the Hostname. - Example for the Hostname: abc.bicomsystems.com Make sure you replace Hostname from this example with your PBXware Hostname.
  • Page 9 UAD settings Navigate to Settings:UAD. Make sure Polycom UAD is enabled. To check the UAD status click on the edit icon corresponding to your Polycom phone. Make sure Status is set to Active, Auto provisioning is set to Yes, and DHCP is set to Yes.
  • Page 10 <digitmap dialplan.digitmap="[2-9]11|0T|011xxx.T|[0-1][2-9]xxxxxxxxx|[2-9]xxxxxxxxx|[2-9] xxxT" dialplan.digitmap.timeOut="3"/> Click on the Save button. Registering Phone This chapter describes how to register Polycom phone using DHCP, TFTP, HTTP & HTTPS or DNS SRV. The following topics are covered: - DHCP - TFTP or HTTP & HTTPS...
  • Page 11 TFTP or HTTP & HTTPS Network Configuration If there is no DHCP in your network, you can still auto provision your Polycom phone. Please refer to your Polycom phone model User Guide for instruction about setting static IP address. After you configure your Polycom phone to use a static IP address, continue with the following steps.
  • Page 12 Example for IP Address using HTTP: http://192.168.1.10/prov Example for IP Address USING HTTPS: https://192.168.1.10/prov If the Server Type is TFTP enter Hostname or IP Address and press the Ok button. Example for Hostname: abc.bicomsystems.com. Example for IP Address: 192.168.1.10 Press the Back button twice. Press the Yes button to Save Config.
  • Page 13 Check if the DNS SRV is enabled in your PBXware Contact your PBXware administrator to find out if the DNS SRV is enabled in your PBXware, or if you have access to the PBXware you can check this yourself. Open a new browser window and enter the IP address in order to access the PBXware web administration login screen.
