FUNKY MONKEY BARS THE SILVERBACK Assembly Instructions Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
THE SILVERBACK
ASSEMBLY INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the THE SILVERBACK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for FUNKY MONKEY BARS THE SILVERBACK

Summary of Contents for FUNKY MONKEY BARS THE SILVERBACK

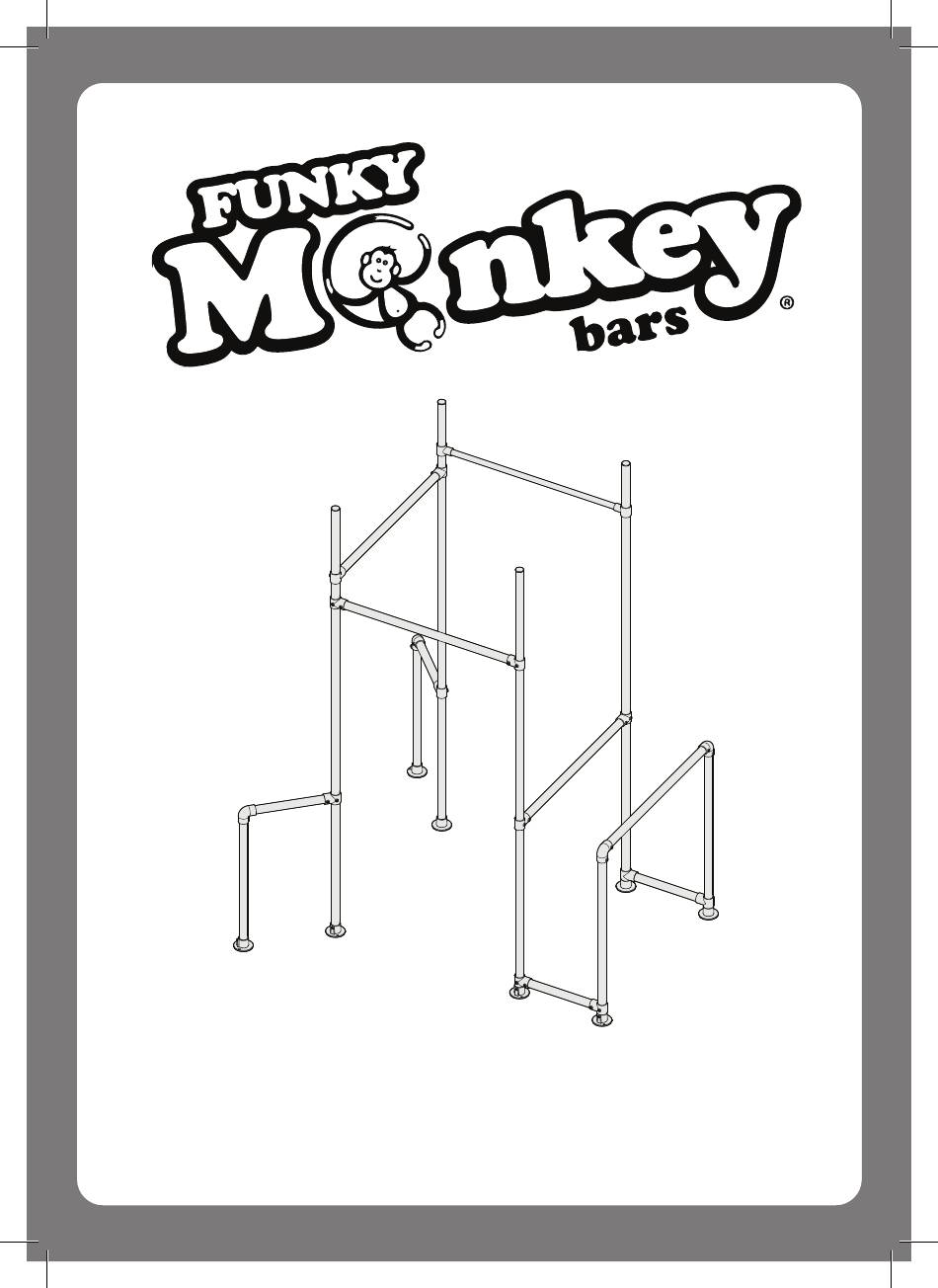

  • Page 1 THE SILVERBACK ASSEMBLY INSTRUCTIONS...

  • Page 2: Table Of Contents

    Bars®, especially lower quality products that have not been approved by Funky Monkey Bars®. 15. Ensure the height of your Funky Monkey Bars® (horizontal ladder) are set at a level that is age appropriate. 16. DO NOT install your Funky Monkey Bars® over or near objects that could interfere with users in an unsafe way.

  • Page 3: Maintenance

    Work on flat level surface. LOCATION A safe fall zone around your Funky Monkey Bars® is essential. A minimum distance of 1.5m to 2m (5 ft to 6.5ft) is recommended around the elevated hanging points of your Funky Monkey Bars®.

  • Page 4: Load Rating

    QUALITY & INDEPENDENT TESTING At Funky Monkey Bars® we take the quality of our designs and safety very seriously. All Funky Monkey Bars® frames go through a stringent, independent structural testing process prior to being made available for release to our customers.

  • Page 5: Dimensions

    FUNKY MONKEY BARS ® THE SILVERBACK OVERALL DIMENSIONS A mimimum of 2.0 Metres clear fall zone is recommended around the elevated hanging points of your Funky Monkey Bars®. 2.03 Metres 2.0 Metres clear fall zone 2.0 Metres 2.0 Metres clear fall zone clear fall zone preferred.

  • Page 6: Assembly Tips

    ASSEMBLY TIPS CORRECT INSERTION INTO FITTINGS - (indicative diagram shown) Gap. No gap. All tubes must be fully inserted until contact is made with adjoining tube. CORRECT TIGHTENING METHOD OF GRUB SCREWS - (indicative diagram shown) + 360 2. Using other end of the allen key do one full 1.
  • Page 7 ASSEMBLY TIPS (continued) IT IS CRITICAL YOUR MAIN FRAME IS 100% SQUARE AND LEVEL (indicative diagram shown) Check assembly is 100% level, square & straight. PLAN VIEW SIDE VIEW IF YOUR FRAME IS NOT STRAIGHT OR LEVEL REMOVE PEGS, LOOSEN GRUB SCREWS, RE-ADJUST RE-TIGHTEN AND RE-PEG THE FRAME.

  • Page 8: Inventory

    INVENTORY SUPPLIED BOXES. NOTE: The Silverback frame comprises of a total of 6 boxes: QUANTITY. CODE. DESCRIPTION. 4 (Total) x Silver 2950mm Accessories Tubes 4x Onyx 1085mm + 2x Silver 1085mm + 1x Silver 1085mm Chin up 2x Silver 900mm + 4x Silver 450mm...
  • Page 9 INVENTORY (continued) FITTINGS Reducing Tee Short Tee D-101 D48-B34 D-101 Elbow Base Plate D-125 D-131 HARDWARE Plastic End Cap Manufacture Sticker COMPONENTS (not applicable) One of the best things about a Funky Monkey Bar is the ability to add new equipment and accessories as your child and family grows.

  • Page 10: Assembly Instructions

    ASSEMBLY INSTRUCTIONS - SIDE DIP BAR ASSEMBLY ASSEMBLE DIP BAR 1. On flat level ground fully insert 1x Dip Horizontal Tube 2x elbows into 1x dip horizontal 50Dia x 1085mm - Black tube (black). 2. Firmly tighten all grub screws. 2x Elbow D-125 ASSEMBLE DIP BAR LEGS...

  • Page 11: Dip Bar Leg Assembly

    ASSEMBLY INSTRUCTIONS - D IP BAR LEG ASSEMBLY INSERT END CAPS 4x Plastic End Cap Long Gym Leg Tube 50Dia x 2950mm On flat level ground insert plastic end caps into long gym leg tubes. ASSEMBLE DIP STATION LONG LEGS 1.

  • Page 12: Dip Bar Station Assembly

    ASSEMBLY INSTRUCTIONS - DIP BAR STATION ASSEMBLY ATTACH HORIZONTAL DIP BAR 1. Fully insert black dip bar tube into leg assembly ‘A’ and ‘B’ at the same height as the assembled outer dip bar. 2. Tighten grub screws. 1x Dip Horizontal Tube 50Dia x 1085mm - Black ATTACH SIDE DIP BAR ASSEMBLY Side dip bar assembly from step 3.
  • Page 13 STAND UP ASSEMBLY AND SECURE TO GROUND 1. With two people lift the dip bar assembly into the upright standing position. Move into desired location with adequate fall zone. (refer to page 4) 2. Check that everything is level and square.

  • Page 14: Horizontal Gym Bars Assembly

    ASSEMBLY INSTRUCTIONS - HORIZONTAL GYM BARS ATTACH FIRST RAISED GYM TUBE. Swing hooks (not included) 1x Gym Horizontal Black Tube 50Dia. x 1085mm 1. Select Height ‘X’ of first gym tube. Adjust short tee ‘A’ to suit and fully tighten grub screw. 2.
  • Page 15 ATTACH LEG AND SECURE TO GROUND. 1. Attach leg from step 10. Ensure the horizontal gym tube and leg are level and square adjust short tee B to suit. 2. Fully tighten all grub screws. 3. Secure to ground with 1x peg Leg from step 10.
  • Page 16 ASSEMBLE FINAL LEG 1x Reducing Tee D-101 D48-B34 1x Short Tee D-101 1. Slide 1x short tee and 1x reducing tee onto 1x Leg from step 4. remaining leg from step 4 (end cap top) at the end cap end (top). Position short tee ‘D’...

  • Page 17: Chin Up Tube

    ASSEMBLY INSTRUCTIONS - CHIN UP TUBE ATTACH CHIN UP TUBE. 1x Chin up Tube (black) (33Dia. x 1085mm) 1. Pull legs apart and fully insert black chin up bar into reducing tee ‘E and F’. 2. Select Height ‘Z’ of chin up tube. Adjust short tee ‘E and F’...

  • Page 18: Twirly Whirly Bar Assembly

    ASSEMBLY INSTRUCTIONS - TWIRLY WHIRLY BAR ASSEMBLY ASSEMBLE VERTICAL TWIRLY TUBE 1x Elbow D-125 Tighten all grub screws. 1x Vertical Twirly Tube Insert Twirly Tube fully into Elbow. 50Dia x 900mm 1x Base Plate D-131 ATTACH HORIZONTAL TWIRLY TUBE 1x Horizontal Twirly Tube 50Dia x 450mm Fully insert short twirly tube then Firmly tighten all grub screws.
  • Page 19 ATTACH TWIRLY WHIRLY BARS x2 1. Adjust short tees to align level with twirly whirly bars. (at a 45º angle to frame) 2. Ensure the twirly whirlys are at a 45º angle to maximize frame strength 3. Tighten all grub screws fixing twirly whirlys to legs.

  • Page 20: Final Checks

    ATTACH ACCESSORIES (none supplied with silverback) Attach any new accessories in desired position (if applicable) and tighten any swing hook bolts with rachet. Refer to separate accessory instructions for details on installation. FINAL CHECKS 1. Ensure frame is square and level. 2.
  • Page 21 MAINTENANCE. Ensure you properly maintain your Funky Monkey Bars® frame and accessories. Please refer to page 2 for daily/weekly and monthly checks and maintenance requirements. FAILURE TO DO SO COULD RESULT IN SERIOUS INJURY OR DEATH. For more information and assembly tips please refer to our website video instruction section at http://www.funkymonkeybars.com/pages/videos...
  • Page 22 72 164 496 520 1300 912 198 info@funkymonkeybars.com www.funkymonkeybars.com ® AUSTRALIAN MADE 9 Cutting Way, we are social monkeys AND OWNED Yangebup WA 6164 All Funky Monkey Bars® designs are registered and protected under IP Australian certification. IP Australia...
